Industrial egg tray dryer/continuous egg tray dryer/microwave paper drying machine
1,Machine Introduction:
Microwave egg tray drying machine is a modern high tech production equipment, has proven high efficiency, low energy-consuming and low maintenance during years of practice, it has changed the traditional heating and drying egg tray heat transfer method. It need not preheating and heat transfer, directly heat the egg tray from the inside to the outside at the same time. heating uniformity, no coking phenomenon.
Microwave egg tray drying machine can be continuous production, simple operation, can be single equipment operation, save labor,drying fast. Dried egg tray has good looking appearance, no deformation.
2.Features of microwave dryer
1. Improve the quality of products, no cracking, no shrinking, no deformation , insect-resistant;
2. Drying and insecticidal proceed at the same time, good effect;
3. Drying fast, low energy consumption, lower the cost, increase efficiency;
4. No environmental pollution, particularly applicable to the factory which is located in the strict environmental requirements area. .
3. Machine Structure:
The whole machine consists of stainless steel, and it adopts the combined and removable assembly module in several parts:
A.The main body frame;
B.Conveying part;
C.Microwave generator parts;
D.Microwave heating cabinet parts;
E.Microwave preventing leakage parts etc.
4.The principle of microwave dryer
Microwave is a sort of electromagnetic wave which frequency is 300MHz to 300GHz .The water molecule in medium materials is polar molecule,under the effect of the rapid change of
electromagnetic field,its polarity orientation will alter with the changes of the external electric field with the high-speed,causing the movement and friction of molecule.
so that the microwave field energy can be converted to heat energy in medium to rise the
temperature of materials.accomplishing heating ,puffing and a series of physical and chemical
processes ,and so ,microwave heating is achieved.
5.Technical parameters of microwave dryer
Power supply |
380V±10% 50HZ±1% three-phase five-wire |
Microwave Output Frequency |
2450±50MHz |
Microwave input apparent power |
≤40KVA |
Microwave output power |
≥30KW |
Microwave power adjustment range |
0-30KW(adjustable) |
Ambient temperature |
-5-40C |
Relative humidity |
80%, Surrounding environment:no corrosive gas, conductive dust and explosive gas |
Overall dimension(L*W*H) |
14600*1200*1600 mm |
Transmission speed |
0-10m/min(adjustable) |
Height of the inlet and outlet |
60 mm |
Microwave leak |
accord with a country GB10436-89 standards(<5 mw/cm^2) |
Equipment safety |
accord with GB-5226Electrical safety standard accord with a country GB16798-1997 Food machinery health security index |
NOTE |
WE CAN DESIGN ACCORDING TO YOUR REQUIREMEN |
6.Warranty and after-sales service
For the whole equipment,warranty is 12 months,within 12 months,if have equipment quality problems,we will provide accessories freely. After the expiration of the warranty period,if have spare parts problem,we only receive the cost of required replacement parts.We commit we will provide free technical support of equipment all whole life.

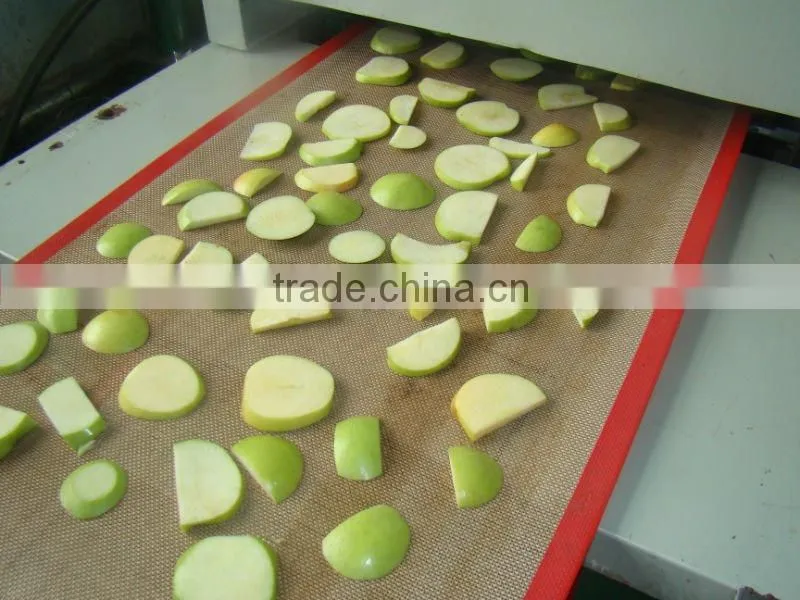

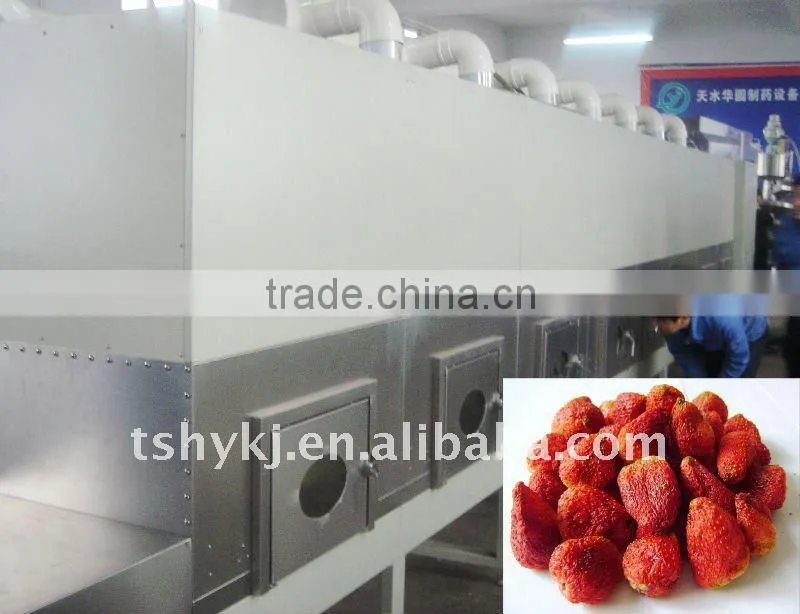

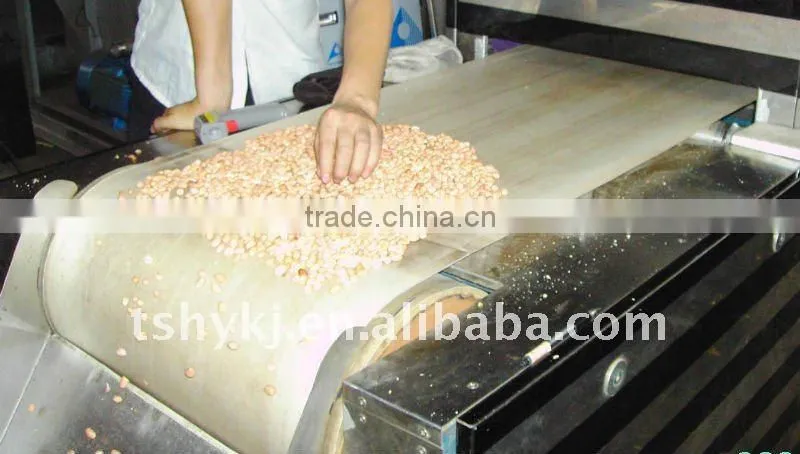

7. Reference Pictures:
