Ball Bearing System Glass Edge Polishing Machine for Big Heavy Glass Grinding

Ball Bearing System Glass Edge Polishing Machine for Big Heavy Glass Grinding thumbnail-1
Ball Bearing System Glass Edge Polishing Machine for Big Heavy Glass Grinding photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Machine Type:
Glass Beveling Machine
Place of Origin:
Guangdong, China
Contact Supplier Request Quote Chat Now
Foshan Juesi Glass Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shunde
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Machine Type Glass Beveling Machine
Place of Origin Guangdong, China
Brand Name JUESI
Model Number JSE272
Voltage customized
Certification CE
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas
Weight 6500KG

ball bearing system glass edge polishing machine for big heavy glass grindingFoshan Juesi - The Chinese Premier Glass Machinery Manufacturer







Glass Straight Line Edging Machine  - Ball bearing system



Item NO.:  JSE252, JSE262, JSE272,   ( each side 2 spindles for arris)

                   JSE353, JSE363, JSE383,   ( each side 3 spindles for arris)



1.   Main convey system adopts chainless ball bearing construction.

2.   Frequency converter adjust the working speed.

3.   Both washing and grinding system of rear plates ensure the accuracy of the back conveyor beam.

4.   Technical parameter of this manual glass beveling machines:

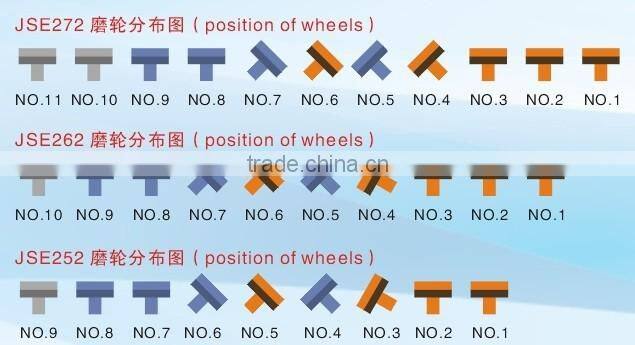

Wheels Distribution:



 ball bearing system glass edge polishing machine for big heavy glass grinding

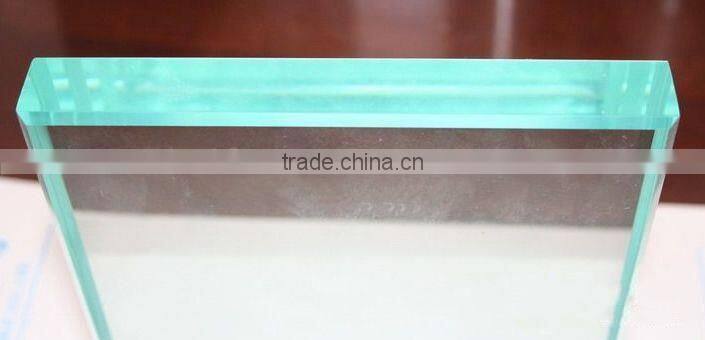

Glass Samples



  ball bearing system glass edge polishing machine for big heavy glass grinding



Comparison between Chain construction and ball bearing construction:



  Chain construction Ball Bearing
Bevel Degree:  3 ~ 20 ° 3 ~ 45 °

Min processing size:

 100*100mm 25*25mm
Max. width of bevel: 35 mm       60 mm
Processing thickness:  3~19mm  3~30mm

The benefit of ball bearing construction machine is as below which the chain machine can't reach:
  1. Min. Glass 25mm.
  2. Max. Bevel Width 60mm.
  3. For big heavy thick glass.
  4. Better beveled diagonal.
  5. Better beveled straight Line.
  6. More spindles for better polishing.
  7. Machine stable more than 10 years.



Chainless Ball Bearing Transmission Construction



ball bearing system glass edge polishing machine for big heavy glass grinding ball bearing system glass edge polishing machine for big heavy glass grinding ball bearing system glass edge polishing machine for big heavy glass grinding



ball bearing system glass edge polishing machine for big heavy glass grinding ball bearing system glass edge polishing machine for big heavy glass grinding
