Specifications
1. Ball bearing2. 11 spindles
3. Min. glass:25*25mm
4. For big heavy thick glass
5. maquina para vidrio
Foshan Juesi - The Chinese Premier Glass Machinery Manufacturer
Straight Line Glass Edging Machine
Multifunational Glass Angle Changing Edging/Beveling Machin Item NO.: JSE353
--------------------------------------------------------------------------------------------------------------------------------------------------
Ball Bearing Construction
Glass Straight-line Edging Machine
- Main transmission of this glass machine adopts chainless ball bearing construction.
- PLC controlled, can be operated by manual or automatic mode.
- Glass thickness and speed are shown and adjusted by HMI.
- Speed of main transmission adopts frequency motor.
- The rear plates washing system and grinding system can ensure the level of the rear transmission
- Technical parameter of this manual glass beveling machines:

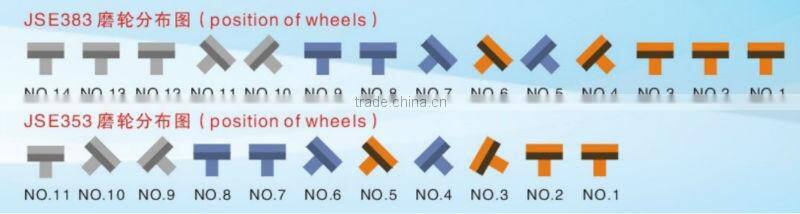

Wheels Distribution:
Specification:
| Main technical specifications | ||
| JSE353 | JSE383 | |
| Range of Speed | 0.4~3.8m/min | 0.6~6m/min |
| Min.Processing width | 25mm | 25mm |
| Glass thickness | 3~30mm | 3~30mm |
| Tatol Power | 26.07KW | 32.07KW |
| Tatol weight | 5800kg | 5000kg |
| Overall Dimension | 8000×1500×2200mm | 8100×1500×2300mm |

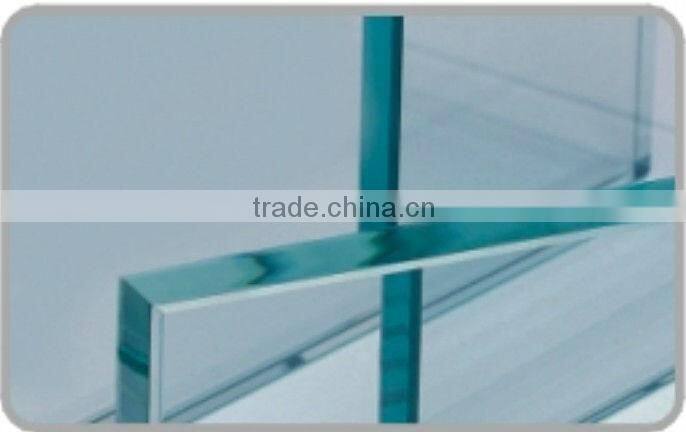

Glass Samples
Comparison between Chain construction and ball bearing construction:
| Chain construction | Ball Bearing | |
| Work Speed for glass T=10mm | 1.5~2.0m/min | 2.5~3.0 m/min |
| Min. glass size: | 100*100mm | 25*25mm |
| Glass thickness: | 3~19mm | 3~30mm |
|
Bottom Margin Grinding from one end of the glass to another end |
0.5~1.5mm | 0.2~0.4mm |
| machine Beam, base & stand column | Steel Plate | casting iron |
The benefit of ball bearing glass machine which the chain machine not able to exceed :
1. Stable for big heavy thick glass.
2. More spindles for better polishing.
3. Machine stable more than 10 years.
4. Easy for maintenance.
Chainless Ball Bearing Transmission Construction

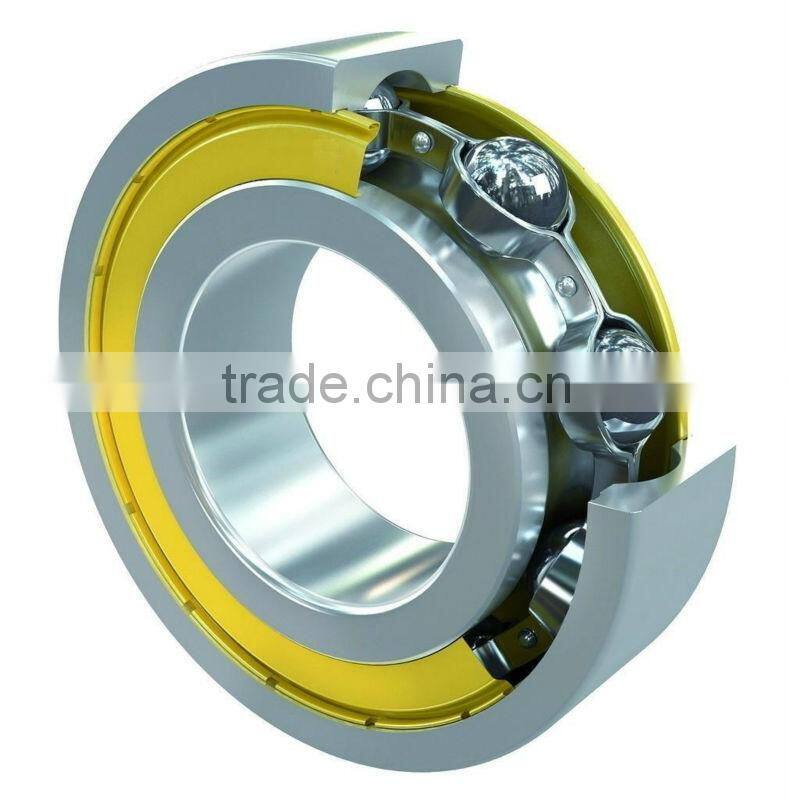

Ball Bearing Transmission Construction
Ball Bearing main function is to minimize any friction caused by any relative movement of two or more objects, in order to reach the maximum efficiency of energy usage, it aims minimize the"converted to heat" energy. A great variety of types and designs are known, the manifolds of the bearings is justified by their various purpose of application, each type of bearing has a certain characteristic technical properties, rolling bearings have the following
advantages compared with the plain bearing:
•Low starting moment.
•Low friction at all speeds.
•Low energy consumption.
•High reliability.
•Small width.
•Low consumption of lubricant.
•Long relubrication intervals.
•Easy to mount and dismount.
•Standardized dimensions.

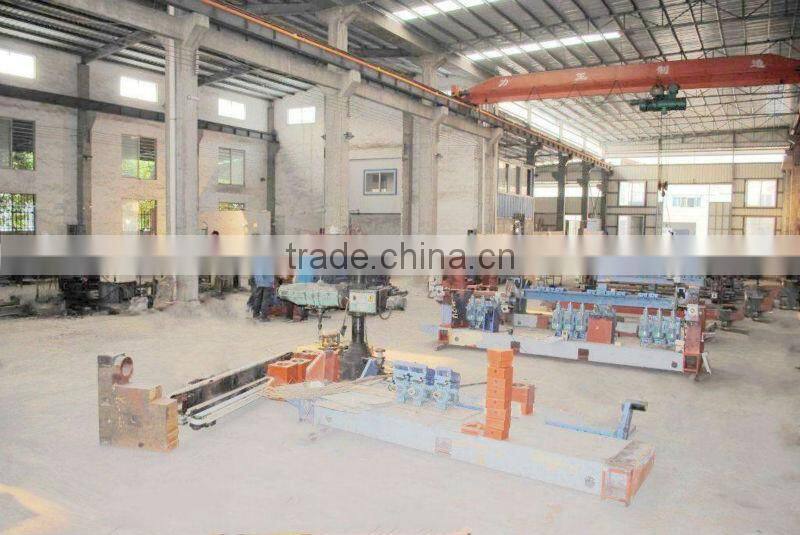

Factory workshop:
After-sales
JUESI Glass Machinery Co., Ltd - manufacturing machinery & providing after-sales to the glass processing industries. We are strongly focused on providing excellent customer service levels and fully understand the importance of uptime, quality and production. All requests for services including emergency breakdown assistance are directed through professional after-sales team which ensures a quick response, professional advice & solutions. Please send us e-mails and we will reply within 24 hours. Tel: +86-757-22262771
Because we really care!!
Before each requested service we discuss any matters that require attention so these can be rectified during scheduled visits.A service kit which includes recommended spare parts is provided for each service and replaced during the visits if they are deemed as required. This is the basis of our pro-active maintenance and proves to be an investment not only for a machines lifetime but for good customer care and relations.Our contracted services are performed as per our OEM programmed maintenance sheets and provide professional servicing and calibrations to critical areas of the machinery. After each service visit a discussion about requirements and repairs is made with the customer providing you with a pro active approach to each machines condition. We provide our contracted customers with preferential treatment during breakdown situations and offer various other benefits.
JSE262 glass edging machine of Foshan
