Irregular Shape Glass Machines Disposal Making Machine

Specifications

 Foshan Juesi -  The Chinese Premier Glass Machinery Manufacturer

Glass shape edging machine   item NO.: JYX

“JYX” Glass Shape Edging Machine is suitable for processing the edge of round shape, oval shape & other irregular shape of glass sheet with various size and thickness. It can be process the round & oval shape glass semi-automatically. It adopts the different wheels to processing different shape like semicircular, flat edge and OG edge etc. Adopt the cup shape wheel and adjust the angle of motor can be processing the bevel edge.

Technical parameter

1. Processing thickness:                                   3~40mm

2. Dia:                                                               100~2200mm

3. Max. width of bevel:                                       35mm

4. Bevel degree:                                                0°~45°

5. Degree of vacuum should be reached:          -0.08MPa~-0.1MPa

6. Water pressure:                                               0.1MPa~0.2MPa

7. Air source pressure:                                        0.6MPA~0.8MPa

8. Rotating speed of working table:                    0.3rpm~3rpm

9. Rotating speed of independent turn plate:      0.7rpm~7rpm

10. Min. incurvature radius:                                 R100mm

11. Max. rotating radius:                                       1500mm

12. Height of working table:                                  1100mm

13.Weight:                                                          900KG

14.Power:                                                           3.92KW

15.Size:                                                               1100*1100*1800mm

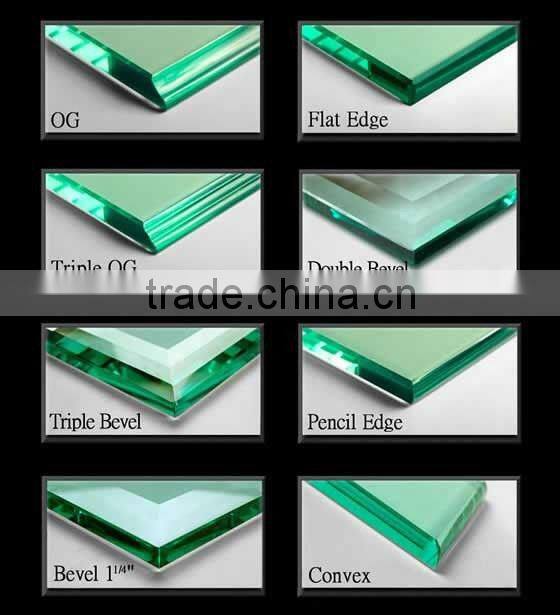

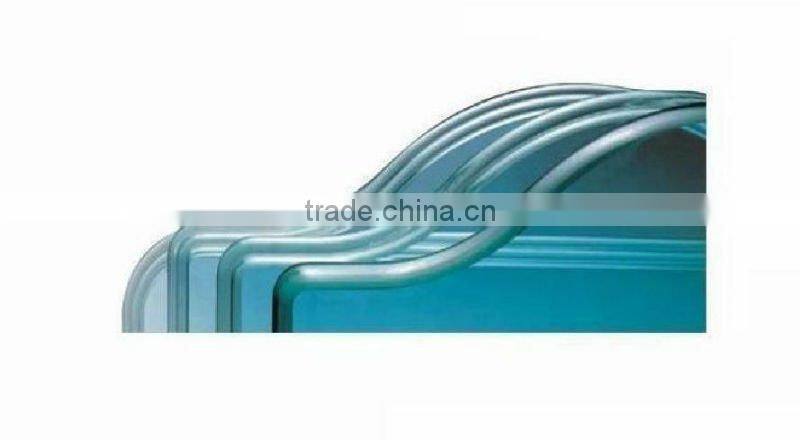

Glass Sample:

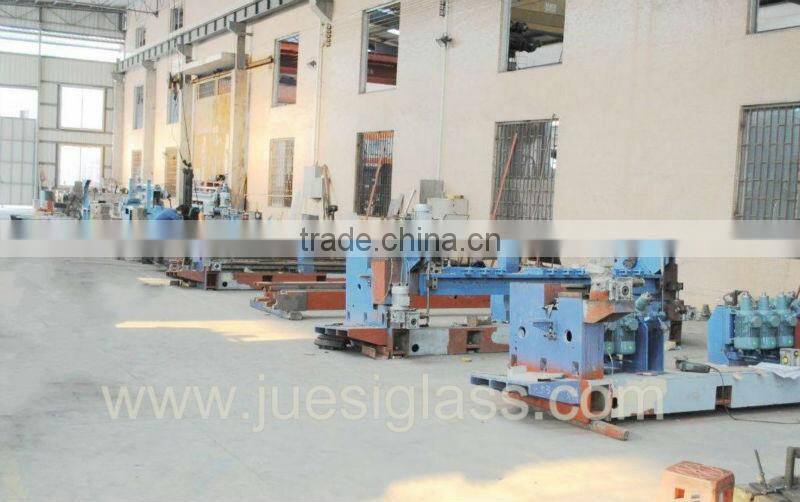

Factory workshop:

After-sales

JUESI Glass Machinery Co., Ltd - manufacturing machinery & providing after-sales to the glass processing industries. We are strongly focused on providing excellent customer service levels and fully understand the importance of uptime, quality and production. All requests for services including emergency breakdown assistance are directed through professional after-sales team which ensures a quick response, professional advice & solutions. Please send us e-mails and we will reply within 24 hours. Tel: +86-757-22262771

 Because we really care!!
Before each requested service we discuss any matters that require attention so these can be rectified during scheduled visits.A service kit which includes recommended spare parts is provided for each service and replaced during the visits if they are deemed as required. This is the basis of our pro-active maintenance and proves to be an investment not only for a machines lifetime but for good customer care and relations.Our contracted services are performed as per our OEM programmed maintenance sheets and provide professional servicing and calibrations to critical areas of the machinery. After each service visit a discussion about requirements and repairs is made with the customer providing you with a pro active approach to each machines condition. We provide our contracted customers with preferential treatment during breakdown situations and offer various other benefits.
