Home > Products > ABS/PC Two layers Extruder Machine > ABS PC pvc profile plastic extruder
ABS PC pvc profile plastic extruder
- 20 Set / Sets per Month
- Shanghai/Ningbo
- T/T Credit Card PayPal
Product Details
Condition: | New | Application: | Sheet | Plastic Processed: | Other, ABS PC |
Screw Design: | Double-screw | Automatic Grade: | Auto | Place of Origin: | Zhejiang, China |
Brand Name: | Xingxu | Model Number: | YX-21AP | Voltage: | 380V |
Power(W): | 200KW | Dimension(L*W*H): | 17600X5700X3300MM | Weight: | 14T |
Certification: | ISO,CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

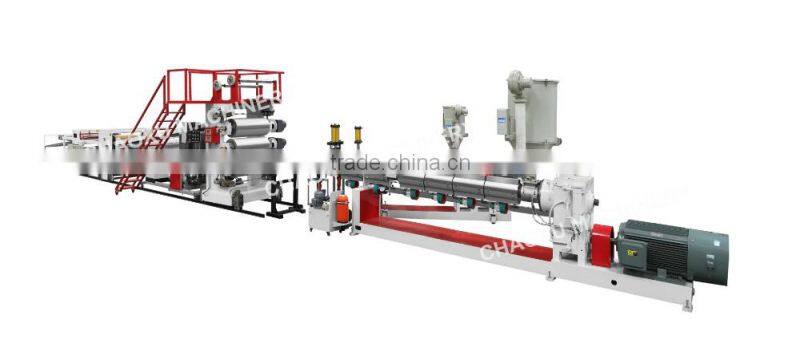

ABS PC pvc profile plastic extruder
This production line is capable of continuously produce mono-layer or multi-layer ABS,PC,PP,PE,PS,PMMA,HIPS sheet with the width less than 900mm and thickness between 1-4mm. The products are widely used in the fields of luggage, refrigerator, air conditioner, advertisement,automotive trim etc.
(Model) | YX-21AP ABS/PCTwo or Three Layers Sheet Extruder Machine |
(Plate thickness) | 1-4MM |
(Plate Width) | 1-900MM |
(Yield) | Around 300KG/HR |
(Weight) | 14T |
(Overall Dimension) | 17600*5700*3300MM |
(Total Power) | 130KW |
1. Q: Are you a factory or trading company?
A: We are a factory and giving you the quickest reply in 24 hours.
2. Q: What's your company mainly in?
A: We are mainly produce Plastic Extruder, Vacuum Forming Machine for over 23 years.
Other machines have included machines in production line, such as luggage edge cutting machine and punching machine.
(We can produce total production line. )
3. Q: What's the material should have for our extruder machine( produce luggage purpose)
A: ABS. PC. PP.PE.PS.PET.HIPS granulates etc plastic material can do.
4. Q: How's your strength of your company?
A: Has a group of senior technical personnels, strong technical force, we have the
whole running system, including design, development, production, installation,service.
One year quality guarantee, life-time service.
5. Q: If your company has passed some certificates?
A: Yes, we have passed CE, ISO.
