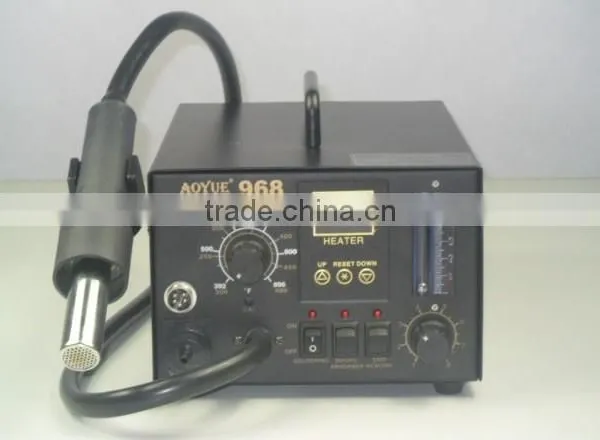

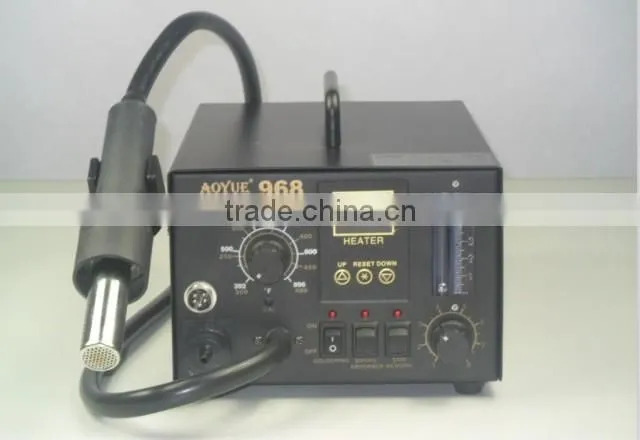

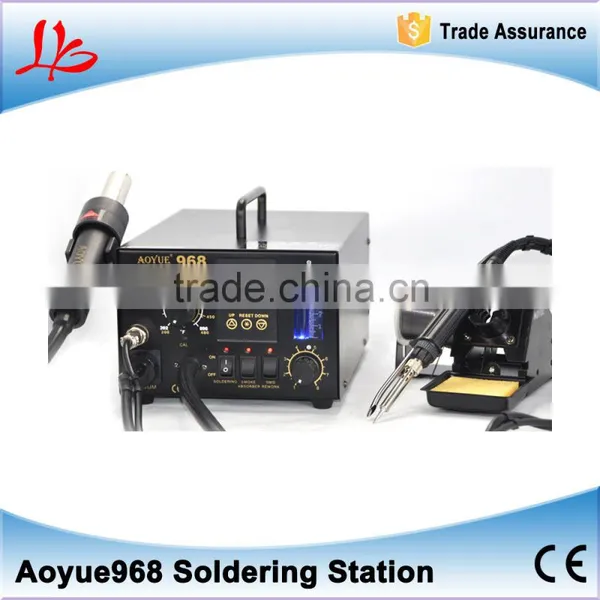

SPECIFICATIONS of High quality welding system AOYUE 968 solder station
Power Input :available in 110V / 220V
Station Dimensions:188(w) x 126(h) x 250(d) mm
Weight:5.25Kg
SOLDERING IRON
Power Consumption:35W
Temperature Range:200 - 480 degrees Celsius
Heating Element with Tip:Ceramic Heater
Output Voltage:24V
Tip to Ground Resistance:Below 2 ohms
Tip to Ground Potential:Below 2mV
HOT AIR
Power Consumption:550W
Temperature Range:100 - 480 degrees Celsius
Heating ElementMetal Heating Core
Nozzle to Ground Resistance:Below 2 ohms
Pump/Motor Type:Diaphragm Pump
Air Capacity:23 L /min (max)
Automatic Reworking Time:20-9999 seconds
SMOKE ABSORBER
Vacuum Pressure:600mm Hg
High quality welding system AOYUE 968 solder station:
l Creative built-in smoke extractor that absorbs the fumes created at the source. Eliminates the space hindering smoke absorbing units yet allowing a healthy environment.
l Microprocessor precisely controls temperature and airflow.
l Digital display of hot air set and actual temperature as well as its airflow.
l Microprocessor controlled with self-testing hot air heating core system which warns user when ageing or breakdown of heating core occurs.
Package content:
968 Station with hot air gun, Air nozzles (1124,1130,1197,1313), B003 Soldering iron,2630 Soldering iron holder, Z003 Hot air gun holder, G001 IC Popper, 2 pcs. Filter pads, Power cord.
High quality welding system AOYUE 968 solder station
Replacement Parts Code/Accessories:
C001 Soldering Iron Heating Element
10094 Hot Air Gun Heating Element
Soldering Iron Tips
Air Nozzles
Packaging & Shipping
Packaging:
Packaging material: Carton/Wooden case with foam inside.
Shipping:
A. 3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.)
B. 3-5 workdays shipping from UK Warehouse to European union countries.No need to pay for customs duties and VAT.
C. 25-30 workdays shipping from China to Russian customers. No need to pay for customs duties and VAT.
D. We can arrange shipment by sea. Minium CBM requirement : 1 CBM
1.We provide you the friendly English User manual or operating videos for free.
2.24 hours technical support by email or calling.
3.Warranty: 1 year free, 2-3 years cost price and free technical support always.
4.Free training to make sure you master the operating of our products.
5. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.
USBearth business group is located in Shenzhen, China.
Our factory owns 2 brands , Ly and Bauer , and Shuttle,ZM,KIDI,HonTon … Factory agent .
We has 10 years experiences in manufacturing and foreigh trade
Our BGA rework stations , such Ly IR6000, Ly IR6500, Ly IR9000,Ly IR-PRO-SC, Ly IR8000, Ly HR560, Ly HR560C, Ly HR500, Ly SV550C, Bauer IR-PRO-SCC ,Bauer OMEGA XD …
CNC machines like cnc 3020/4030/6040/9060 …series products ,Mobile LCD separating stationslike 946D /947B /950V/948V/948B…are hot sale in the world, especially in these countries from North and South American,European and Asian.
1) This is the first time I use this kind of machine, is it easy to operate?
There is english manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
