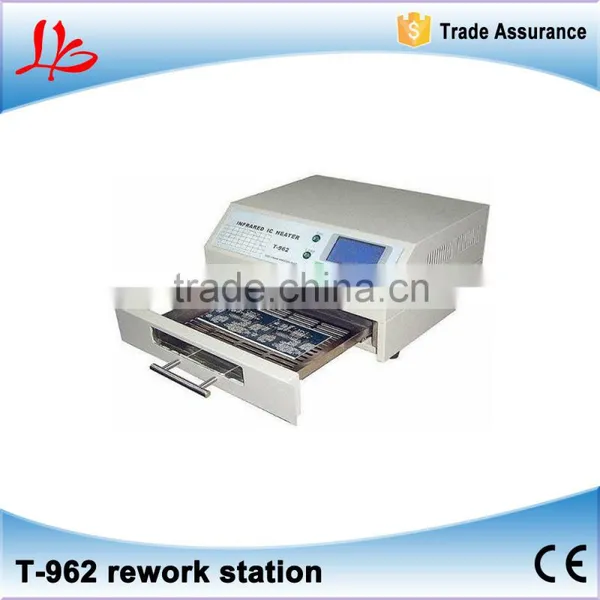

Puhui T962 220V / 110V infrared reflow oven IR IC heater
Introduction
NFRARED IC HEATER T962 is a micro-processor controlled reflow oven, works automatically by micro-computer control.The device is powered by standard 110V~240VAC 50/60HZ. User interface is implemented by way of T962 input keys and an LCD display. Pre-Set heating Modes are selected by user interaction with thermal cycle progress observed on LCD display.It can satisfy a dissimilarity SMD/BAG Soldering a request on a PCB assembly. The T962 may be used to automatically ''re-flow'' solder to correct bad solder joints, remove/replace bad components and complete small engineering models or prototypes.Whole soldering process to complete automatically, easy to use, Adoption fast infrared radiation and circulation the wind for heat, So the temperature is very Accurate and even.

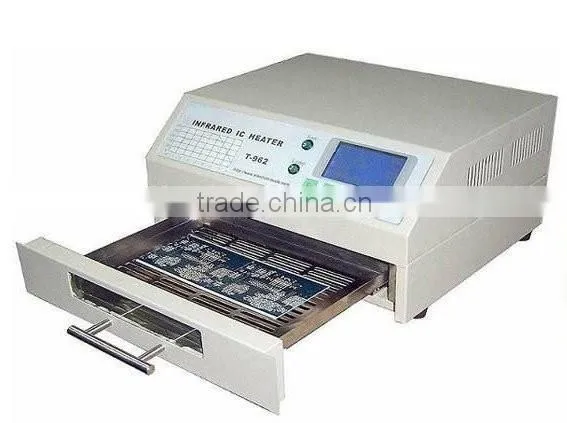

A windowed drawer is designed to hold the work-piece. Thermal cycle accuracy is maintained by closed loop micro-computer control with infrared heaters, thermocouple and circulating air. The T962 is simple to use, the soldering process is completely automatic defined by pre-defined thermal cycles.
The faint ness controls a technique and can see the drawer type workbench , Make whole soldering process at you of the under surveillance automatic completed; Can soldering the most smart small part. Adopted a high and dependable design,make what you see gratifying and rest assured.
Technical Parameters
Model:T962
Effective Soldering max area:18 x 23.5cm
Product size: 31×29×17cm
Packing size:36×23×36 cm
Rated power :800W
Process cycle:1~8 min
Voltage: 110V~240V (we stock 110V~240V version for the country all over the world.)
(we stock USA.UK.EU.AU plugs for the country all over the world.)
Frequecy: 50Hz~60Hz
Net weight: 6.2kg
Gross weight:7.5kg
Feature
Have big infrared soldering max area to reach effectively 180×235mm.Increase the usage scope of this machine consumedly, economical investment.
Self-contained Micro-Processor controlled IC Heater and solder rework station.

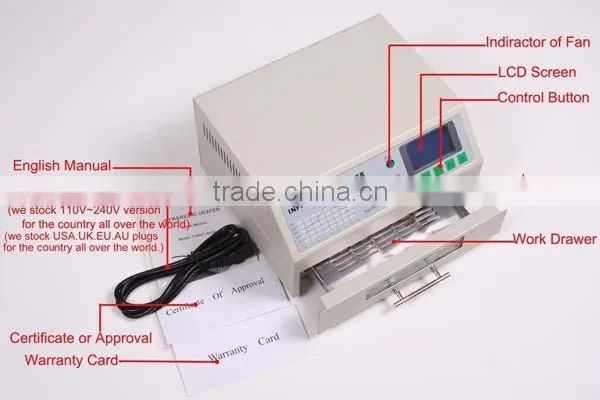

Complete visual operation by the high qulity LCD screen .Soldering cycles are keypad selected and progress displayed on the T962 LCD.
A single windowed drawer holds assemblies within the heating chamber.
Many temperature wave choice for you. Memory eight kinds of temperature parameter waves can be provided as choice, and establish to move heating and cool off function compulsory;Whole soldering process to complete automatically, easy to use. you also can operate the machine with HM-heating.
Perfect varity functions:Return soldering,drying, heat preservation,finalize the design, fast cool off etc. It can use can soldering the most smart small part example CHIP SOP PLCC QFP BGA etc; Can used to the gum of the product solid turn, the circuit board is hot aging, the PCB plank maintains to wait various works.Be applicable to each kind of business enterprise,company extensively develop and the small batch quantity produce a demand.
Eqiuped with exhaust fan to satisfy the need of the soldering.
High-frequency design is ergonomic, practical and easily operated,makes unit compact, saving you space,visual.
Adoption fast infrared radiation and circulation the wind for heat,So the temperature is very accurateand even.
Automatically by micro-computer control.The entire soldering process is completes automatically fromPreheat, Soak and Reflow through cool- down.
It is an economical rework solution from single runs to on-demand small batch production.
Light weight and a small footprint allows the T962 to be easily bench positioned transported or stored.
Humanized science and technology exquisite article.Firm of external appearance, can see of operation, amity of person machine operation interface, the perfect temperature wave project, from start to eventually body science and technology now is originally.The agile physical volume and weight, let youeconomize a great deal of money, the set noodles type places mode, can let you own larger space;Simple operating instructions, let you a see can use.
Special heat up and temperature equalization with all design. Output the power reaches to 800 W, Adoption fast infrared radiation and circulation the wind for heat,so the temperature is very Accurate and even, Whole soldering process to complete automatically for you choice temperature parameter waves.
Packing list
1×Main Heater Infrared Oven
1×Power Cord
1×English Manual
1×English Manual on CD
Packaging:
Packaging material: Carton/Wooden case with foam inside.
Shipping:
A. 3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.)
B. 3-5 workdays shipping from UK Warehouse to European union countries.No need to pay for customs duties and VAT.
C. 25-30 workdays shipping from China to Russian customers. No need to pay for customs duties and VAT.
D. We can arrange shipment by sea. Minium CBM requirement : 1 CBM
1.We provide you the friendly English User manual or operating videos for free.
2.24 hours technical support by email or calling.
3.Warranty: 1 year free, 2-3 years cost price and free technical support always.
4.Free training to make sure you master the operating of our products.
5. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.
USBearth business group is located in Shenzhen, China.
Our factory owns 2 brands , Ly and Bauer , and Shuttle,ZM,KIDI,HonTon … Factory agent .
We has 10 years experiences in manufacturing and foreigh trade
Our BGA rework stations , such Ly IR6000, Ly IR6500, Ly IR9000,Ly IR-PRO-SC, Ly IR8000, Ly HR560, Ly HR560C, Ly HR500, Ly SV550C, Bauer IR-PRO-SCC ,Bauer OMEGA XD …
CNC machines like cnc 3020/4030/6040/9060 …series products ,Mobile LCD separating stationslike 946D /947B /950V/948V/948B…are hot sale in the world, especially in these countries from North and South American,European and Asian.
1) This is the first time I use this kind of machine, is it easy to operate?
There is english manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
