Specifications
1.CEM-1 double side copper clad laminate sheet manufacturer2.Perfect UV blocking/AOI.
3.Excellent machining property.

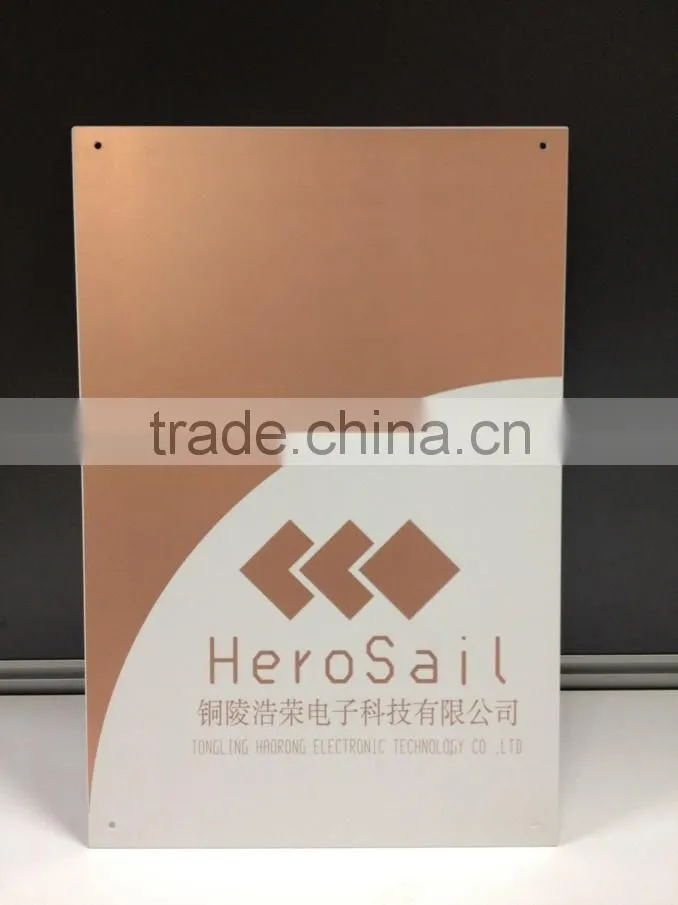

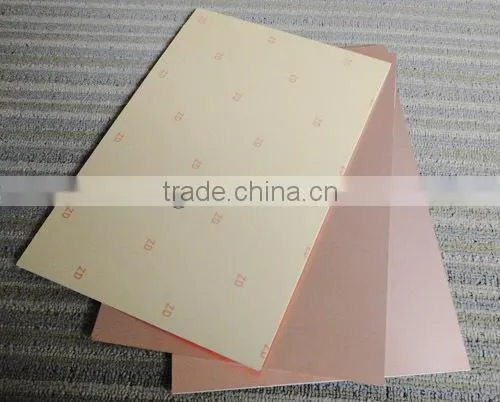

CEM-1 double side copper clad laminate sheet manufacturer
Application:
HR1130 laminate sheet widely used in monitor,power supply,keyboard,game machine,etc.
Standard size
Base Color |
Thickness |
Copper Clad |
Regular Size |
Thickness |
|
white yellow |
0.8~1.6mm |
H oz(18μm) 1oz (35μm) 2oz (70μm) |
915×1220mm(36″×48″)1020×1220mm(40″×48″) 1070×1220mm(42″×48″) |
IPC4101C C/M |
Desciption:
HR-1130 Laminate |
Unit |
specification |
Typical Value |
Test Method |
|
Metric |
<0.5mm |
≥0.5mm |
1.6mm CCL |
IPC-TM-650 |
|
1. Peel Strength,as received. |
N/mm |
1.8 |
--- |
||
A. 17micron copper |
≥1.05 |
≥1.05 |
|||
B. 35micron copper |
≥1.4 |
≥1.4 |
|||
C. 70micron copper |
|
|
|||
D. 105,140,175micron copper and above |
|
|
|||
2. Surface resistivity |
MΩ |
||||
A. Constant temp.&moisture C-96/35/90 |
≥103 |
--- |
--- |
||
B. After moisture resistance |
--- |
≥103 |
2.7×106 |
||
C. Under high temperature |
≥103 |
≥103 |
--- |
||
3. Volume resistivity |
MΩ.cm |
||||
A. Constant temp.&moisture C-96/35/90 |
≥103 |
--- |
--- |
||
B. After moisture resistance |
--- |
≥103 |
2.9×106 |
||
C. Under high temperature |
≥103 |
≥103 |
--- |
||
4. Moisture absorption |
% |
--- |
≤0.80 |
0.11 |
|
5. Dielectric breakdown |
KV |
--- |
40 |
45 |
|
6. Permittivity at 1MHZ |
-- |
<5.4 |
<5.4 |
4.6 |
|
7. Tg(DSC) |
°C |
--- |
--- |
110 |
|
8. Loss tangent at 1MHZ |
-- |
<0.035 |
<0.035 |
0.026 |
|
9. Thermal stress |
260°C/10S |
||||
Non-etching |
pass |
pass |
pass |
||
Etch |
pass |
pass |
pass |
||
10. Flammability |
Rating |
94V-0 |
94V-0 |
94V-0 |
|
11. Flexural strength of laminate |
N/mm2 |
||||
Length direction |
--- |
≥242 |
410 |
||
Cross direction |
--- |
≥172 |
280 |
||
Details:
FAQ
Q: 1. Can I have free samples?
A: Yes, we can provide free sample only for small size after you accept our price and all the information confirmed by you.
Q: 2. What is the manufacturing time?
A:Sample needs 1-3 days, mass production needs 10-15 days, It depends on quantity.
Q: 3. What is your MOQ?
A: Our MOQ is 500 sheets for copper clad laminate,and 2 rolls of prepreg
Q: 4. Can you accept mixed batch of different products?
A: Yes, we are support different product mix wholesale.
Q: 5. How do you ship the goods ?
A: For huge quantity,we can deliver it by FCL,for small quantity,we can deliver by LCL,samples willdeliver by express.
Any other question,pls feel free to leave a message.We are looking for your inquiry!
