Home > Manufacturing & Processing Machinery > Machine Tools > Grinding Machine > Column Moving Surface Grinder 500*1000mm

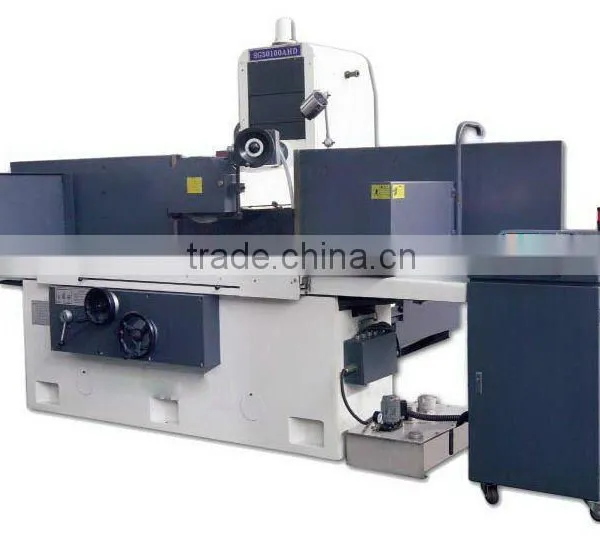

Column Moving Surface Grinder 500*1000mm
US$ 30,000 - 50,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Type:
Surface Grinding Machine
CNC or Not:
Normal
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
200*500mm Universal Cylindrical Grinding MachineUS$ 10,000 - 150,000MOQ: 1 Piece -
Saddle Moving Surface Grinder 406*813mmUS$ 10,000 - 50,000MOQ: 1 Piece
-
CNC Universal Cylindrical Grinding MachineUS$ 50,000 - 100,000MOQ: 1 Piece
-
250*500mm Saddle Moving Surface GrinderUS$ 10,000 - 50,000MOQ: 1 Piece
-
305*1020mm Saddle Moving Surface GrinderUS$ 10,000 - 50,000MOQ: 1 Piece
Condition
New
Type
Surface Grinding Machine
CNC or Not
Normal
Place of Origin
Shandong, China
Brand Name
CTS
Model Number
904-3380
Voltage
380V
Power(W)
12KW
Weight
5500kg
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
* Column moving stype.* With PLC auto grinding controller.
Order No. 904-3380
Specifications:
Table size (WxL): 500×1000mm
Max. grinding dimension: 500×1000mm
Magnetic chuck size: 500×1000mm
Max. distance from spindle center to table surface: 600mm
Longitudinal moving speed of worktable: 5-25m/min
Wheelhead cross moving:
Auto feed speed: 0.5-20mm/r
Rapid feed speed: 1.25m/min
Handwheel feed: 0.02mm/gra.
Wheelhead vertical moving:
Auto feed speed: 0.005,0.01,0.015,0.02,0.03,0.04mm/r
Rapid feed speed: 230mm/min
Handwheel feed: 0.002mm/gra.
Grinding wheel size: 355×20-50×127mm
Wheel speed: 1450rpm (50Hz); 1740rpm (60Hz)
Main motor power: 7.5kw
Total power: 12kw
Max. table loading capacity: 700kg with chuck
Overall dimension: 4700×2550×2400mm
Machine weight: 5500kg
