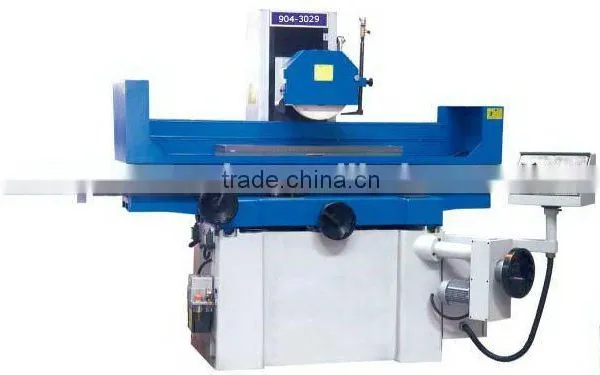

305*1020mm Saddle Moving Surface Grinder

305*1020mm Saddle Moving Surface Grinder thumbnail-1
305*1020mm Saddle Moving Surface Grinder photo-1
US$ 10,000 - 50,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Type:
Surface Grinding Machine
CNC or Not:
Normal
Contact Supplier Request Quote Chat Now
Cater Tools Supply Inc.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Surface Grinding Machine
CNC or Not Normal
Place of Origin Shandong, China
Brand Name CTS
Model Number 904-3029

Specifications

Longitudinal travel by hydraulic driven; Cross travel by automatic feeding; Vertical travel by PLC aotomatic feeding.

Order No. 904-3029



Specifications:
Table size(WxL): 305x1020mm
Max. longitudinal travel : 1130mm

Max. cross travel: 340mm
Max.distance from spindle center to table surface : 580mm
Magnetic chuck size : 300x1000mm
Speed of table longitudinal movement : 7~23m/min
Automatic Table Feed Range: 0.1~8m
Rapid Table Travel Speed : 990mm/min
Graduation of Table Handle Wheel: 0.02mm

Auto feed of wheelhead: 0.005/0.01/0.02/0.03/0.04/0.05mm
Rapid Speed of Wheelhead : 460mm/min
Graduation of Grinding Wheel : 0.005mm
Grinding wheel speed : 1450rpm (50Hz); 1750rpm (60Hz)
Grinding wheel size (ODxWxID): 350x40x127mm

Max.loading capacity of table(include magnetic chuck): 400kg
Main motor power: 5.5kw
Hydraulic motor: 2.2kw

Coolant motor: 0.125kw

Lifting motor: 0.5kw

Cross feed motor: 0.04kw

Total rated power: 9kw
Height of machine : 1890mm
Floor Area (LxW) : 4400x2200mm
Gross Weight : 3300kg
Shipping Size (LxWxH): 2950x2220x2210mm
