DIN1480 Turnbuckles, Galv/Zinc Plated
Our company:
We are a leading company with many year's experience in rigging hardware export business. We specializing in various riggings, such as shackle, turnbuckle, load binder, hook, eye bolt and nut, clip, thimble, anchor, snap hook, and stainless steel rigging.Meanwhile, we could take up processing business according to the drawings, samples and materials supplied from customers.
Products Details of Turnbuckle Manufacturers:
1.Material: Stainless Steel , Steel
2.Surface: Galvanized, Hot dip galvavized, self color
3.Size: M6 to M38
4.Customzied products are welcomed.
5.Non- standard products can be made according to your drawings.
6.Timely Delivery , High Quality and Good price.
Dimension of Turnbuckle Manufacturers
| Dimension | Permissible Load | |||||||||
| D | weight | 11 | m | 12 | b | di | da | i | ||
| mm(inch) | ,kg | N | kg/100pcs | mm | mm | mm | mm | mm | mm | mm |
| M6 | 230 | 2250 | 7.8 | 110 | 10 | 60 | 53 | 10 | 20 | 4.5 |
| M8 | 418 | 4100 | 14.8 | 110 | 14 | 60 | 55 | 12 | 26 | 6.5 |
| M10 | 663 | 6500 | 29.4 | 125 | 20 | 65 | 60 | 14 | 30.5 | 8 |
| M12 | 948 | 9300 | 36.3 | 125 | 21 | 75 | 70 | 18 | 37.5 | 10.5 |
| M16 | 1804 | 17700 | 91 | 170 | 27 | 100 | 90 | 22 | 48 | 13 |
| M20 | 2752 | 27000 | 156 | 200 | 34 | 115 | 100 | 25 | 51 | 20 |
| M24 | 3996 | 39200 | 325 | 255 | 39 | 140 | 130 | 28 | 66 | 27 |
| M30 | 6371 | 62500 | 415 | 255 | 45 | 145 | 130 | 35 | 83 | 31 |
| M32 | 6585 | 64600 | 595 | 295 | 55 | 160 | 150 | 36.5 | 88 | 33 |
| M36 | 9276 | 91000 | 745 | 295 | 55 | 160 | 150 | 44 | 104 | 40 |
| M38 | 9572 | 93900 | 1076 | 330 | 63 | 185 | 170 | 42 | 104 | 39 |

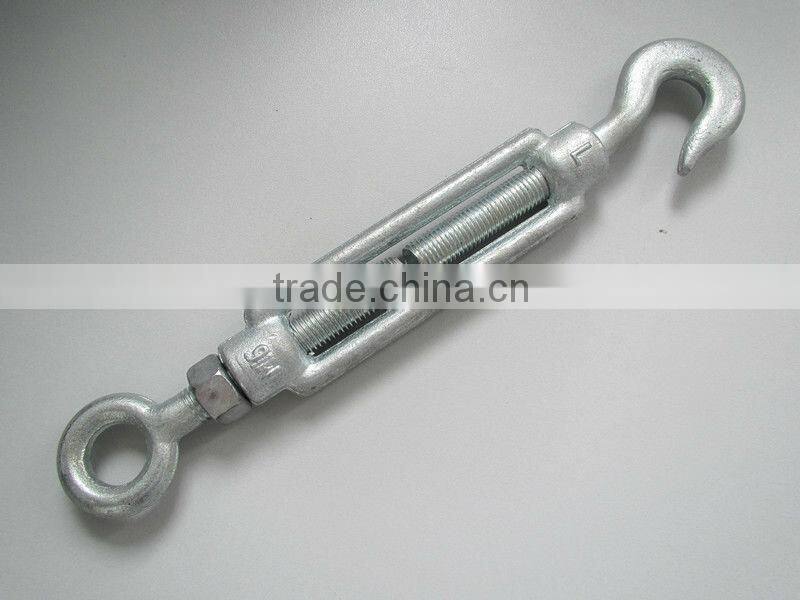

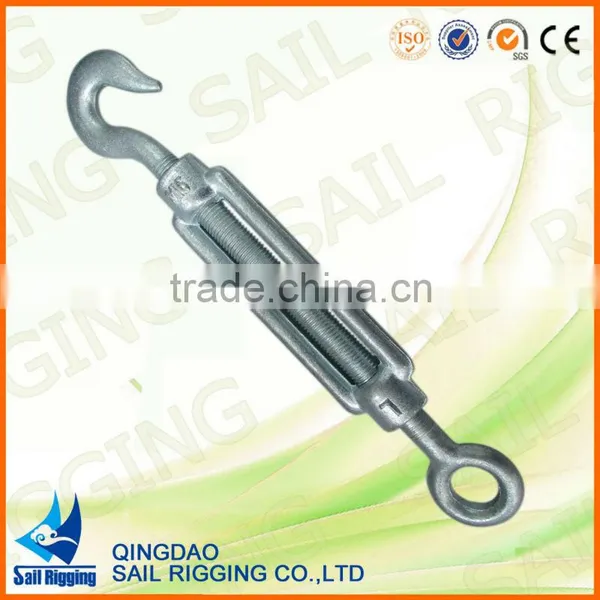

Pictures-- Turnbuckle Manufacturers
Other type turnbuckle:

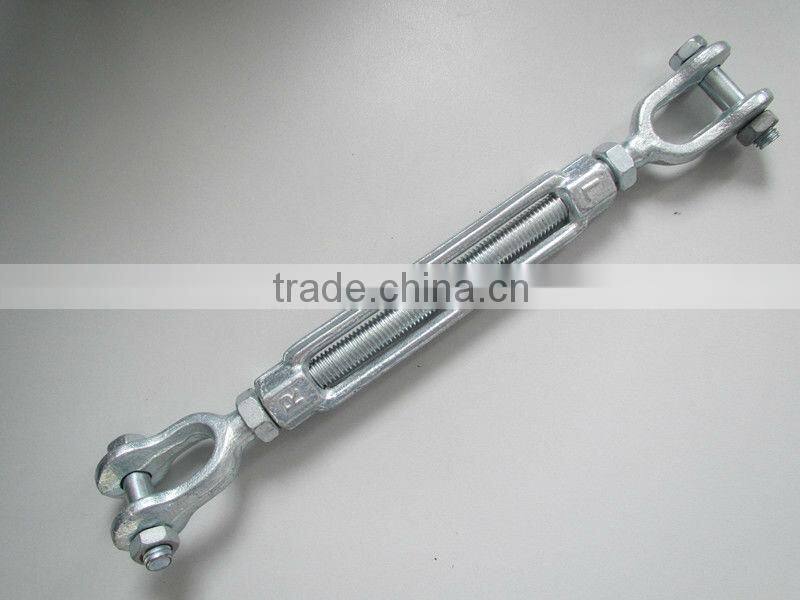

US Type with jaw and jaw:

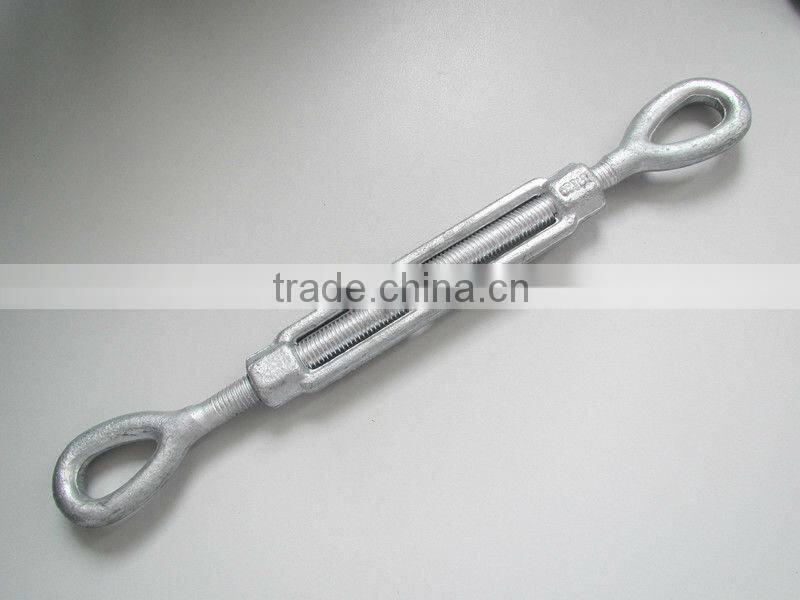

US Type with eye and eye
Stud of DIN 1480 turnbuckle

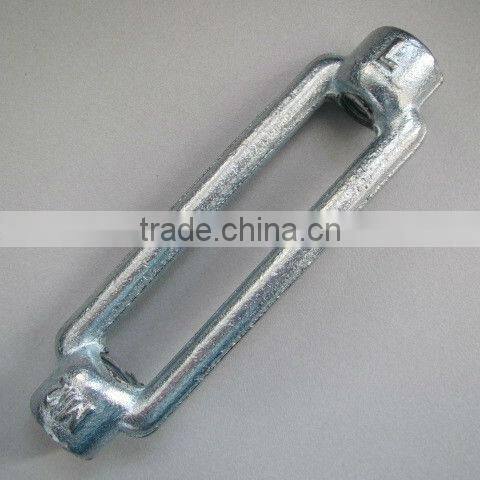

Body of DIN 1480 turnbuckle
Packing---Turnbuckle Manufacturers
Certainly, you can find what you need in our factory!
