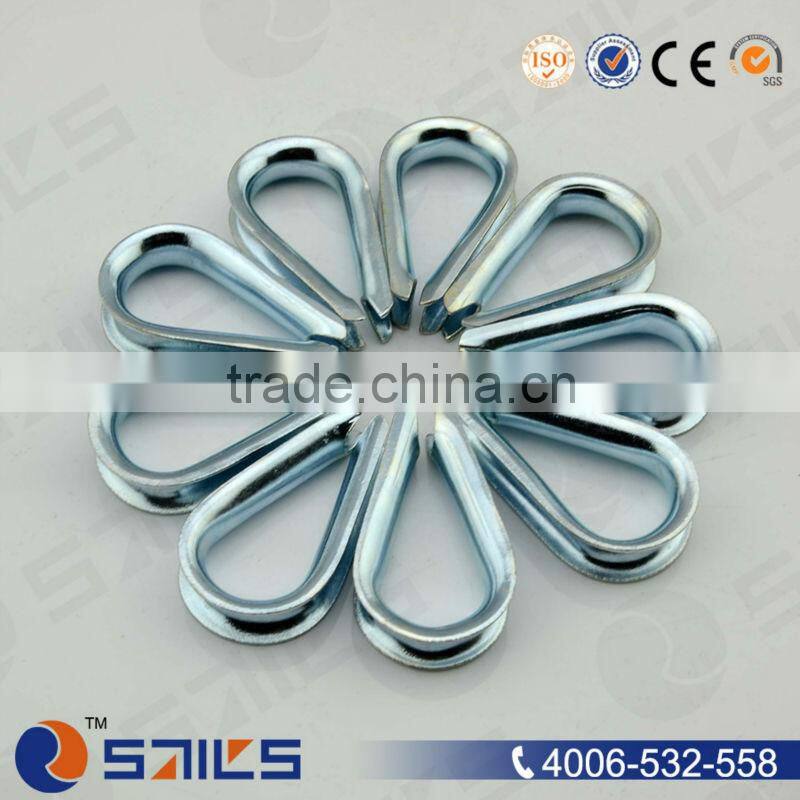

Specifications
1.Material:Carbon Steel,Alloy Steel2.Surface: Galvanized
3.Factory Price,High Quality
4.Timely Delivery,Mini Order accepted
1. Material:Carbon Steel,Alloy Steel, Stainless Steel 316 etc.
2.Surface: electro-galvanized or hot dip galvanized, dacromet, environmental galvanized
3.Technology: drop forged
4.Specification of the wire rope thimble:from 1/8'' to 11/8-11/4''
5.Other standard:U.S. Type,DIN Type,JIS Type and European Type
6.Packing: plastic bags, carbon boxes, wood pallets and iron pallets
7.Packing marks can be sticked.
8.Detecting:No-go gauge
9.Nonstandard of products can be made according to the drawing and pictures
10.Certifications: ISO, CE, SGS

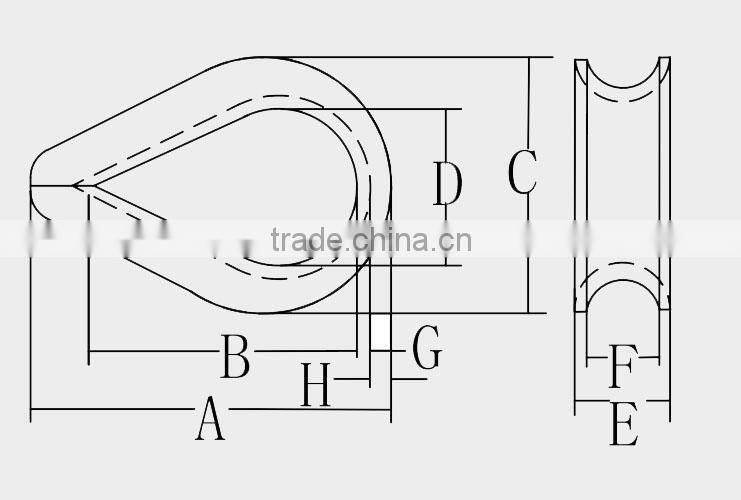

| Pope DIA (IN) | Weight Per 100 (1bs.) | Dimensions(in.) | |||||||
| A | B | C | D | E | F | G | H | ||
| 1/8 | 2.5 | 1.94 | 1.31 | 1.06 | 0.69 | 0.25 | 0.16 | 0.05 | 0.13 |
| 3/16 | 2.5 | 1.94 | 1.31 | 1.06 | 0.69 | 0.31 | 0.22 | 0.05 | 0.13 |
| 1/4 | 3.75 | 1.94 | 1.31 | 1.06 | 0.69 | 0.38 | 0.28 | 0.05 | 0.13 |
| 5/16 | 3.75 | 2.13 | 1.5 | 1.25 | 0.81 | 0.44 | 0.34 | 0.05 | 0.13 |
| 3/8 | 6.25 | 2.38 | 1.63 | 1.47 | 0.94 | 0.53 | 0.41 | 0.06 | 0.16 |
| 1/2 | 12.5 | 2.75 | 1.88 | 1.75 | 1.13 | 0.69 | 0.53 | 0.08 | 0.19 |
| 5/8 | 25 | 3.5 | 2.25 | 2.38 | 1.38 | 0.91 | 0.66 | 0.13 | 0.34 |
| 3/4 | 50 | 3.75 | 2.5 | 2.69 | 1.63 | 1.08 | 0.78 | 0.14 | 0.34 |
| 7/8 | 85 | 5 | 3.5 | 3.19 | 1.88 | 1.27 | 0.94 | 0.16 | 0.44 |
| 1 | 100 | 6.69 | 4.25 | 3.75 | 2.5 | 1.39 | 1.06 | 0.16 | 0.41 |
| 11/8-11/4 | 175 | 6.25 | 4.5 | 4.31 | 2.75 | 1.75 | 1.31 | 0.22 | 0.5 |

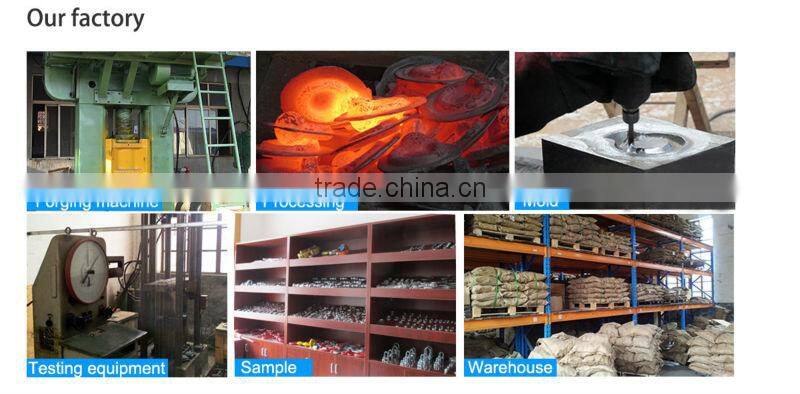

Our company has senior management, professional technicians, advanced domestic production facilities, rich experience in production management, strong technical force, scientific test methods and perfect and reliable quality assurance. We are specializing in various rigging, such as shackles, turnbuckles, binders, hooks, eye bolts and nuts, clamps, thimbles, anchors, snap hooks, and stainless steel rigging. Meanwhile, we could take up processing business according to the drawings, samples and materials supplied by customers.
1. How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality.We can send you by Fedex,TNT,UPS,DHL etc.Free for the samples,but you have to pay for the freight.
2. Do you have a range of stock items for sale ?
Most of our products are made specifically to a customer's order. We have no standard lines available from stock.
