China New Technology Diamond Trommel Screen For Ghana
1.Detailed Product Description of diamond trommel screen for sale:
It is a kind of combined gold mining machine, designed especially for placer gold sand, clay, soil, river sand and alluvial gold sand which contain gold sand and nugget in the raw material, gold wash plant includes sieving, separating through trommel, sluice, water pump, diesel generator or diesel engine and extraction gold progress. It is with wheel type chassis, can be driven by vehicles and move easily.
2.Working principle
Using excavator to feed raw material to the hopper ,they flow into double trommel , bigstones and pebble can be separated and flow outside of the equipment, mineral aggregate with gold whose diameter is less than 6mm can enter into the beneficiation sluice through inner trammel screen,there is a fixed and high extraction ratio gold felt sluice in one side of the beneficiation sluice to extract gold particle.
The machine is equipped with big flow capacity and big head water pump, can supply high pressure water for hopper, trammel, the mineral aggregate with gold will flow through the gold felt in the effect of self weight and waterpower ,lighter mud or sand will be washed away and big specific gravity gold is left on the gold felt.

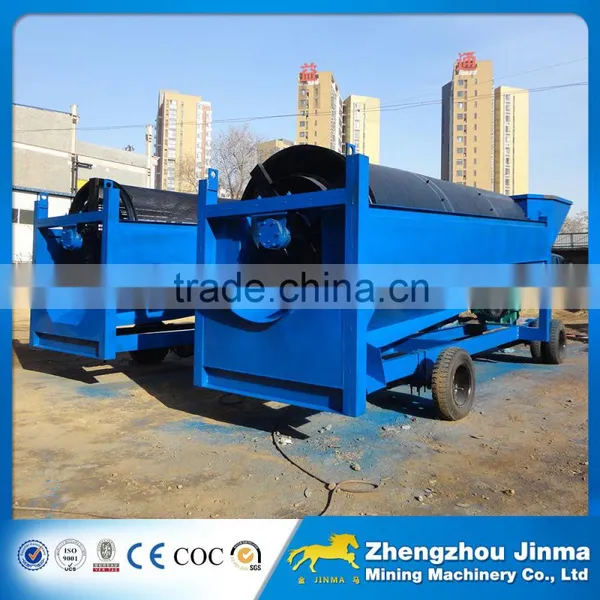

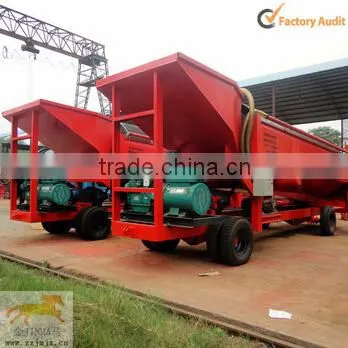

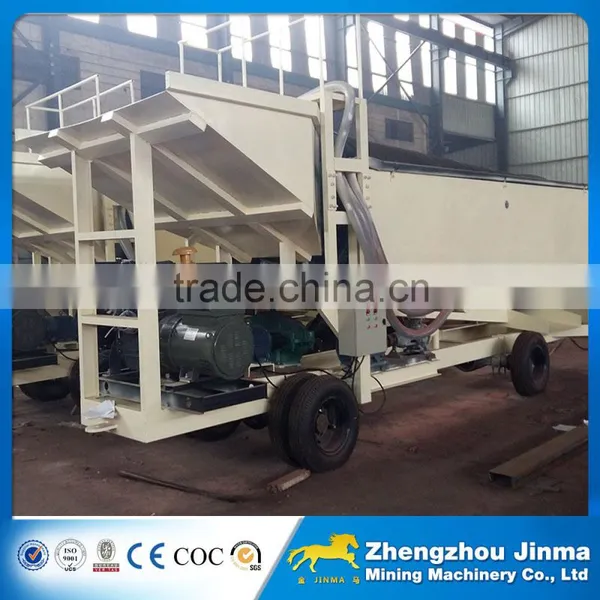

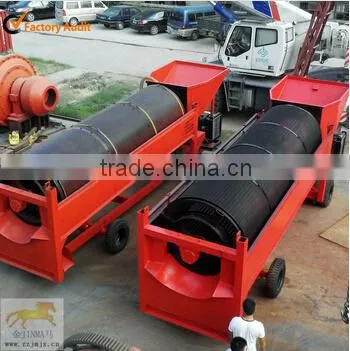

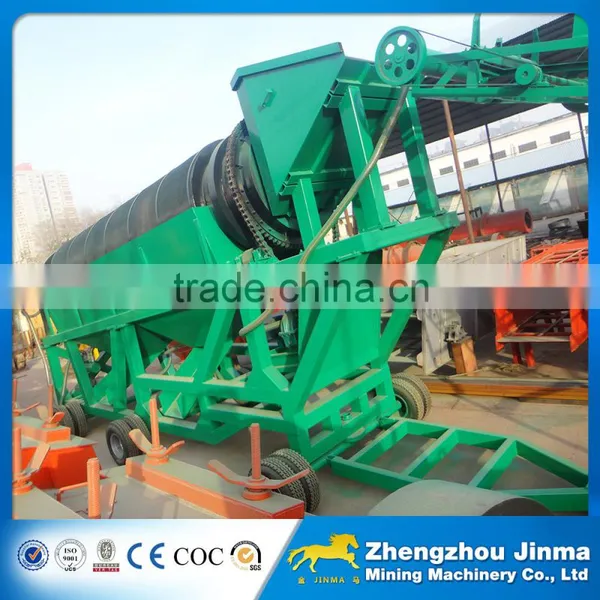

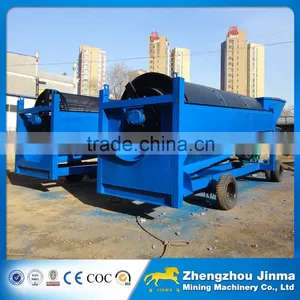

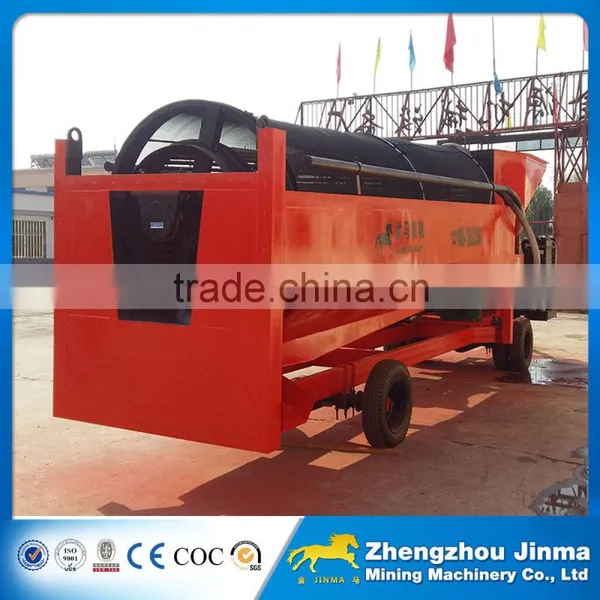

The pictures of diamond trommel screen for sale:
3.Gold dust separating procedure:
1) Input of raw materials through heavy equipment
Raw materials inputted through the entrance of the hopper will be pushed into the trommelscreen by the strong water pressure of the shower equipped in the hopper.
2) Selection and cleaning of raw materials
Raw materials of the trommel screen will be cleaned and selected by the rotation of trommelscreen and, by watering of the shower inside, run into the gold dust separate panel.
3) Collecting of gold dust separated
Soil and sands with lighter specific gravity will flow away but gold dusts with greater specific gravity will be staying in the gathering mat to be collected.

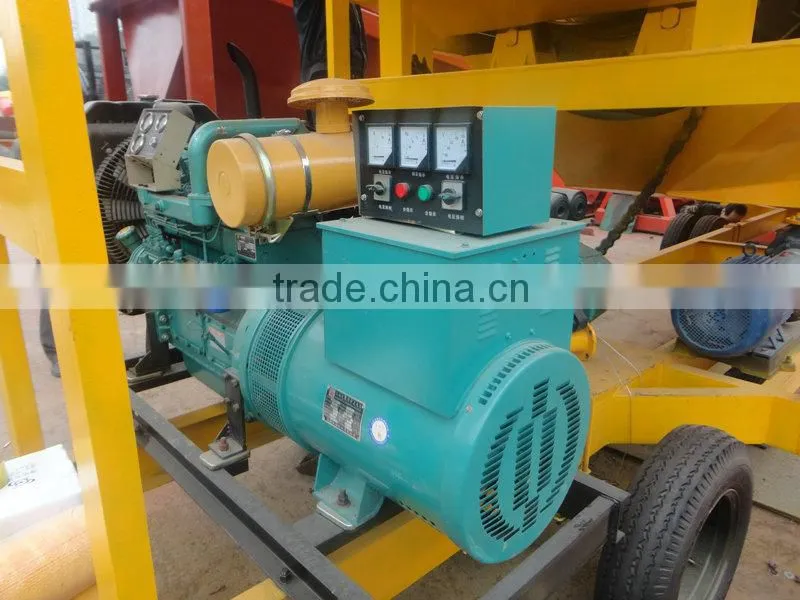

the diesel engine of the gold trommel screen

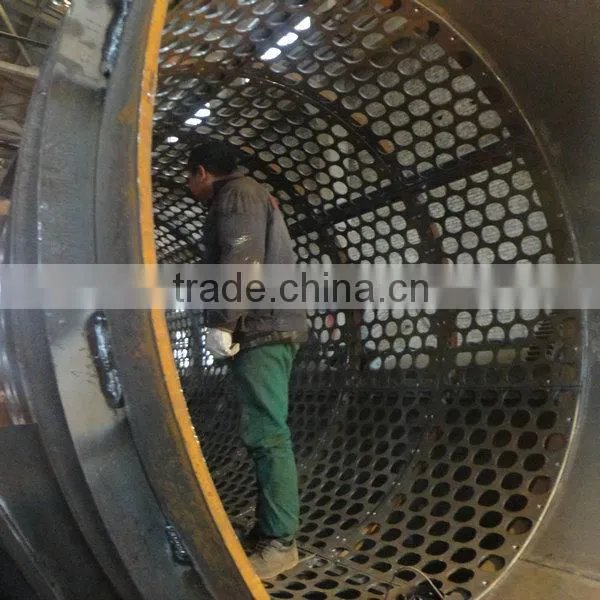

the seive of the trommel screen
the gold washing carpet of the trommel screen
the carpet
4.Technical parameters
Model |
Capacity |
Power |
Diameter (mm) |
Length |
Mesh range(mm) |
Max Feed size(mm) |
Overall size |
Weight |
GTS1015 |
50 |
3.0 |
1000 |
1500 |
0~100 |
300 |
2600×1400×1700 |
2200 |
GTS1020 |
80 |
4.0 |
1000 |
2000 |
3390×1400×2140 |
2800 |
||
GTS1225 |
160 |
5.5 |
1200 |
2500 |
4146×1600×2680 |
4200 |
||
GTS1530 |
200 |
7.5 |
1500 |
3000 |
4460×1900×2820 |
5100 |
||
GTS1545 |
350 |
11 |
1500 |
4500 |
400 |
5960×1900×3080 |
6000 |
|
GTS1848 |
450 |
15 |
1800 |
4800 |
6500×2350×4000 |
7500 |
||
GTS2055 |
600 |
22 |
2000 |
5500 |
7500×2550×4800 |
9600 |
||
GTS2265 |
800 |
30 |
2200 |
6500 |
8500×2750×5000 |
12800 |
Trommel Screen Equipment for gold mining is popular in African, Asian, South American
Our advantages
1) our main productsjaw crusher, hammer crusher, PCZ heavy hammer crusher, DPC fine
crusher, the PXJ third create sand machine, PCH ring hammer crusher, the PC hammer crusher
and so on more than 30 varieties of broken machinery. 2) 38 years year of production experience
3) Processional Research and Development team
4) Strict quality control
5) We provide competitive prices, reliable quality products and swift delivery
6)the products are exported to Chile, Peru, Vietnam, Indonesia, Malaysia, India, the Philippines,
Thailand, Laos, Russia, Turkey, Iran, north Korea, kazakhstan, azerbaijan, Latvia and so on ,more
than 30 countries and regions.
Here are our company qualifications certificated by related institutions
Export Country of Rotary Screen:
Mexico, Australia, Ghana, Qatar, Tajikistan, Azerbaijan, Vietnam, Kazakhstan, Mongolia, Ecuador, Iran, Pakistan, the Middle East and other countries and areas.
the delivery
1>.Pre-sale services: enthusiasm
We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
2>.Sale services: servant
Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
3>.After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
Supplying technique, building design, instruction, installation and debugging for free.
4>.We provide one-year warranty to make sure your machine runs consistently.
We always offering lifelong services and provide spare parts for a long time.
our clients visit our factory
1.How long is the delivery time of your equipment?
The delivery time is within 30 working days. But when the project is very big and the customers have special requirement on the equipment, the delivery could be extended.
2.How long is the equipment warranty period?
Our equipment warranty period is 1 year. Wearing parts and problem coursed by worker’s wrong operation are not included.
3.What’s the after sale service of your company?
We will provide foundation drawing to the clients for installation. Besides, we can provide installation service, workers training service, etc.
4.Can you provide wearing parts?
We have two casting factories that specialize in produce wearing parts for our clients. If your equipment are not manufactured by our company, please provide us the wearing parts drawing.
5.Can you give me a solution and quotation?
Of course, to provide accurate solution and quotation, please give us background information, including, raw material, the capacity, max. input size, the output size, the usage of final products, etc.
Notes:Our company with the goal of "The excellent, the better" and "Satisfaction from customers" as the eternal pursuit, we sincerely welcome clients from all over the world to come for a visit, and establish long term win -win cooperation . Believe us and choose us.We will give you the most suitable price with full specification.

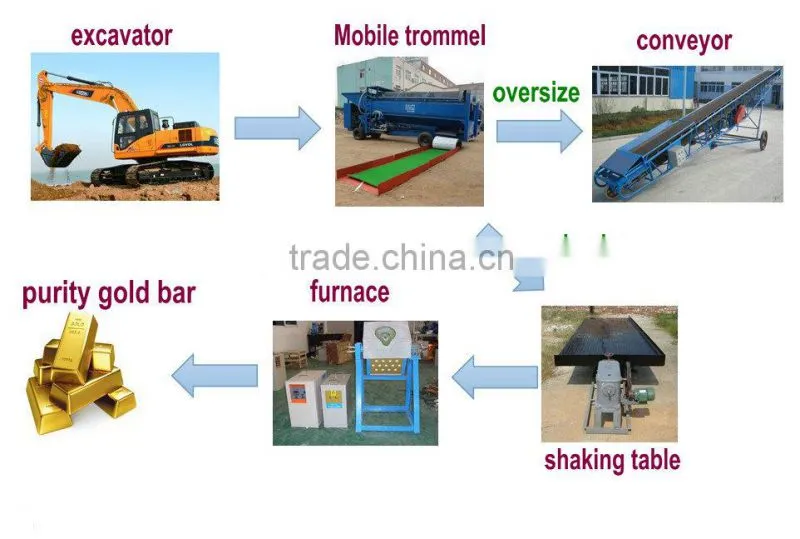

The gold washing plant chart for your reference
If you want to know more about the product ,please contact me ,i am cherry fan
TEL:+86-371-67511065
FAX:+86-371-67512579
SKYPE:cherry74120
Mobile Phone :+86-18239673197
