Specifications

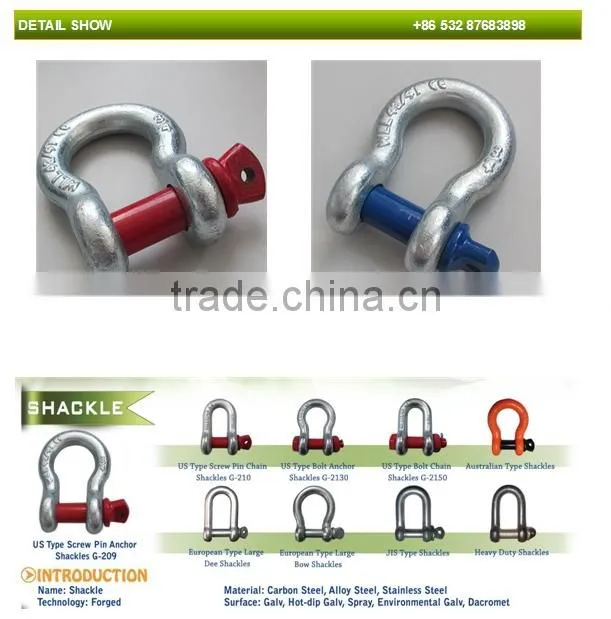

accessories hardware g209 screw pin anchor shackleWe are factory
Good price Timely delivery
Surface: Eletro-galvanizing
accessories hardware g209 screw pin anchor shackle
We are manufactuer of Rigging products with many years'
experence in this line. Our company supply all kinds of Rigging. Our main Rigging products have Turnbuckle, Shackle, Hook, Load binder, Wire Rope Clip, Thimble, Eye Bolt and Eye Nut, Anchor etc.
accessories hardware g209 screw pin anchor shackle
Material:Carbon Steel, Alloy Steel, Stainless Steel ect.
Surface:Eletro-galvanizing, Hot Dip Galvanizing, Self Colour
Size:All Size
Standard:US Type, Jis Type, DIN Type etc.
Our products are sold to all over the word such as Europe,South America and North America,Asia, Africa, Australia etc.The quality reliable, timely delivery and price reasonable of our products have achieved goog reputation.
If you have any need about our products, please feel free to contact us.
accessories hardware g209 screw pin anchor shackle
| Nominal | Working | Dimensions | Weight Each | ||||||||||
| size | load | (in.) | (lbs.) | ||||||||||
| (in.) | limit | ||||||||||||
| (tons) | A | B | C | D | E | F | G | H | L | M | P | G-209 | |
| S-209 | |||||||||||||
| 3/16 | 1/3 | 0.38 | 0.25 | 0.88 | 0.19 | 0.6 | 0.56 | 0.98 | 1.47 | 0.16 | 1.14 | 0.19 | 0.06 |
| 1/4 | 1/2 | 0.47 | 0.31 | 1.13 | 0.25 | 0.78 | 0.61 | 1.28 | 1.84 | 0.19 | 1.43 | 0.25 | 0.1 |
| 5/16 | 3/4 | 0.53 | 0.38 | 1.22 | 0.31 | 0.84 | 0.75 | 1.47 | 2.09 | 0.22 | 1.71 | 0.31 | 0.19 |
| 3/8 | l | 0.66 | 0.44 | 1.44 | 0.38 | 1.03 | 0.91 | 1.78 | 2.49 | 0.25 | 2.02 | 0.38 | 0.31 |
| 7/16 | l1/2 | 0.75 | 0.5 | 1.69 | 0.44 | 1.16 | 1.06 | 2.03 | 2.91 | 0.31 | 2.37 | 0.44 | 0.38 |
| 1/2 | 2 | 0.81 | 0.63 | 1.88 | 0.5 | 1.31 | 1.19 | 2.31 | 3.28 | 0.38 | 2.69 | 0.5 | 0.72 |
| 5/8 | 31/4 | 1.06 | 0.75 | 2.38 | 0.63 | 1.69 | 1.5 | 2.94 | 4.19 | 0.44 | 3.34 | 0.69 | 1.37 |
| 3/4 | 43/4 | 1.25 | 0.88 | 2.81 | 0.75 | 2 | 1.81 | 3.5 | 4.97 | 0.5 | 3.97 | 0.81 | 2.35 |
| 7/8 | 61/2 | 1.44 | 1 | 3.31 | 0.88 | 2.28 | 2.09 | 4.03 | 5.83 | 0.5 | 4.5 | 0.97 | 3.62 |
| l | 81/2 | 1.69 | 1.13 | 3.75 | 1 | 2.69 | 2.38 | 4.69 | 6.56 | 0.56 | 5.13 | 1.06 | 5.03 |
| l1/8 | 91/2 | 1.81 | 1.25 | 4.25 | 1.16 | 2.91 | 2.69 | 5.16 | 7.47 | 0.63 | 5.71 | 1.25 | 7.41 |
| l1/4 | 12 | 2.03 | 1.38 | 4.69 | 1.29 | 3.25 | 3 | 5.75 | 8.25 | 0.69 | 6.25 | 1.38 | 9.5 |
| l3/8 | 131/2 | 2.25 | 1.5 | 5.25 | 1.42 | 3.63 | 3.31 | 6.38 | 9.16 | 0.75 | 6.83 | 1.5 | 13.53 |
| l1/2 | 17 | 2.38 | 1.63 | 5.75 | 1.54 | 3.88 | 3.63 | 6.88 | 10 | 0.81 | 7.33 | 1.62 | 17.2 |
| l3/4 | 25 | 2.88 | 2 | 7 | 1.84 | 5 | 4.19 | 8.86 | 12.34 | 1 | 9.06 | 2.25 | 27.78 |
| 2 | 35 | 3.25 | 2.25 | 7.75 | 2.08 | 5.75 | 4.81 | 9.97 | 13.68 | 1.22 | 10.35 | 2.4 | 45 |
| 21/2 | 55 | 4.13 | 2.75 | 10.5 | 2.71 | 7.25 | 5.69 | 12.87 | 17.84 | 1.38 | 13 | 3.13 | 85.75 |
