Spray Plastics US Type Ratchet Load Binder
US$ 1 - 50
MOQ: 20 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Sail Rigging
Model Number:
Ratchet Type
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Painted Australian Type Load BinderUS$ 10 - 30MOQ: 1 Ton -
Forged Load Binders Ratchet TurnbuckleUS$ 5 - 20MOQ: 100 Pieces
-
China Hardware Ratchet Assembly Load BindersUS$ 0.1 - 43MOQ: 100 Pieces
-
China Hardware Load Binders Without Links and HooksUS$ 0.2 - 45MOQ: 100 Pieces
-
Standard Load Binder Ratchet TypeUS$ 0.1 - 100MOQ: 100 Pieces
Place of Origin
Shandong, China
Brand Name
Sail Rigging
Model Number
Ratchet Type
Specifications
Standard Ratchet Type Load BinderThe material of handle:forging&casting
Surface:powder painting
Heat Treated
I Other Names:
US Type Ratchet Type Load Binder
Spray Plastics Ratchet Type Load Binder
Drop Forged Ratchet Type Load Binder
standard ratchet type load binder hook and hook
II Main Features:

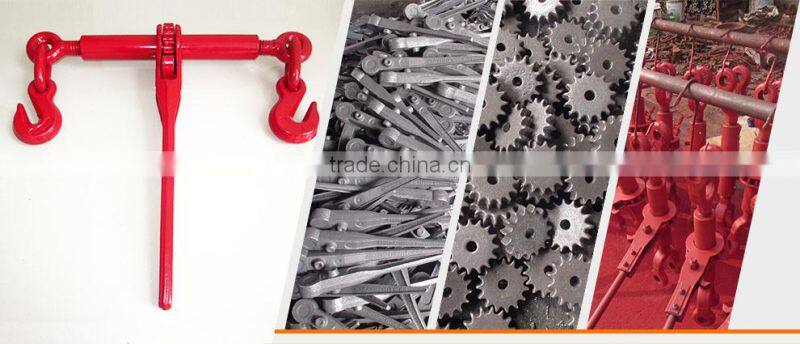

US Type Ratchet Type Load Binders are mainly composed by handles,hooks,steel pipes, gears and clips.
The technology of US Type Ratchet Type Load Binders is forging or casting. Generally, The handles are forged or casted. The gears are casted. Other parts of Ratchet Type Load Binders are forged.
The main material of Ratchet Type Load Binders is steel 45#. For casting parts(handle and gears) the material is malleable steel.
Ratchet Type Load Binders are used in lifting field and usually used for tensing chains.
| Product | Ratchet Type Load Binders | |
| Place of origin | Shandong,China | |
| Brand Name | Sail Rigging | |
| Model Number | Ratchet Type | |
| Material | 45# | |
| Surface | Spaying Paint , Spraying Plastics, Galvanized | |
| Technology | Forging&casting | |
| Size | 1/4-5/16, 5/16-3/8, 3/8-1/2,1/2-5/8 | |
| Packing | Carton | |
| Certification | ISO, SGS,CE | |
| Using for | Lifting and tensioning | |
| Item |
Min-Max Chain Size (in.) |
Working Load Limit (lbs.) |
Proof Load (lbs.) |
Minimum Ultimate Load (lbs.) |
Weight /Each (lbs.) |
Handle Length (in.) |
|
| RLBH08 | 1/4-5/16 | 2600 | 5200 | 9200 | 3.52 | 7.16 | |
| RLBH10 | 5/16-3/8 | 5400 | 10800 | 19000 | 10.5 | 13.42 | |
| RLBH13 | 3/8-1/2 | 9200 | 18400 | 33000 | 12.9 | 13.92 | |
| RLBH16 | 1/2-5/8 | 13000 | 26000 | 46000 | 14.38 | 13.92 |
|

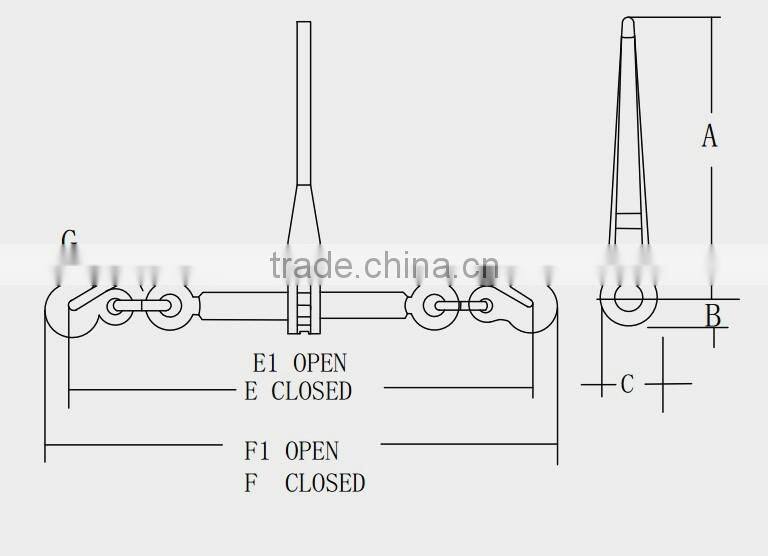

Dimensions (in.) |
||||||||
| A | B | C | E | E1 | F | F1 | G | |
| 7.16 | 0.89 | 1.77 | 16.22 | 21.26 | 17.79 | 22.83 | 0.35 | |
| 13.92 | 1.3 | 2.6 | 22.64 | 30.64 | 25.25 | 33.24 | 0.51 | |
| 13.92 | 1.3 | 2.6 | 24.13 | 32.13 | 27.04 | 35.04 | 0.59 | |
| 13.92 | 1.3 | 2.6 | 26.45 | 34.45 | 30.07 | 38.07 | 0.74 | |
