High Quality DIN 580 Swivel Eye Screw
- 30 Ton / Tons per Month
- Qingdao
- T/T Credit Card
Product Details
Place of Origin: | Shandong, China | Brand Name: | SailRigging | Model Number: | DIN 580 |
Standard: | DIN |
Product Description

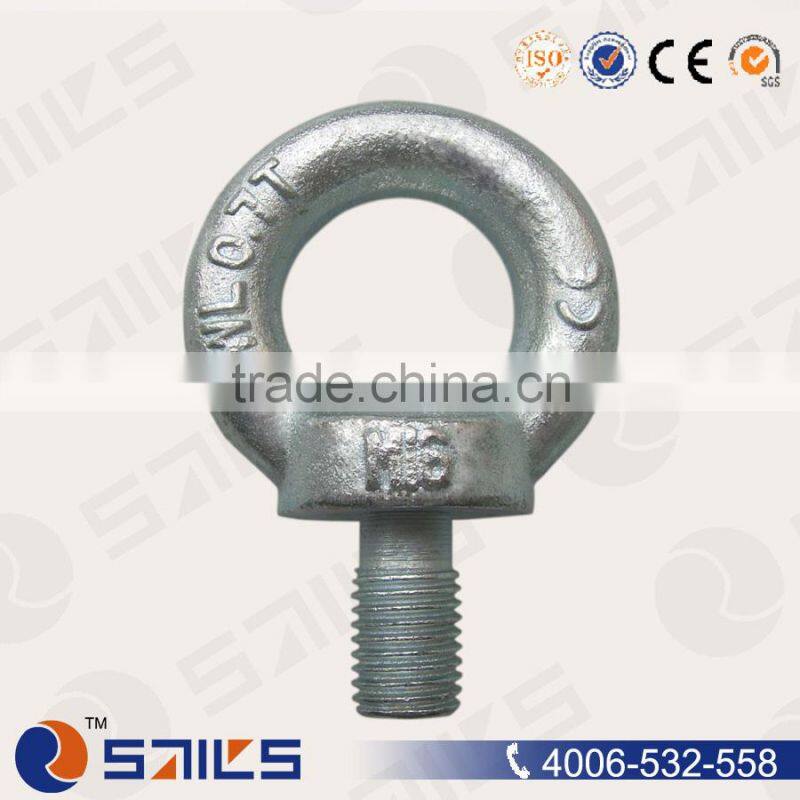

High Quality DIN 580 Swivel Eye Screw
I Other Names:
DIN580 liftiing eye screw
DIN580 locking eye screw
DIN580 eye screw
II Main Features:
(1) Specification: regarding the size of eye bolt threads as the specification, just like M6, M8, M10, M12,etc
(2) Surface: electro-galvanized and usually white zinc plated, or hot-galvanized, dacromet, environmental galvanized
(3)Technology: drop forged
(4)Material: Q235 steel or 45# steel, C15E
(5)Type: C15, normal WLL and specification, or as you needed
(6)Packing: plastic bags, carbon boxes, wood pallets and iron pallets
(7)Packing marks can be sticked.
(8)Detecting:No-go gauge
(9)Thread rolling: threads under metric system or British system
(10)Certifications: ISO, CE, SGS

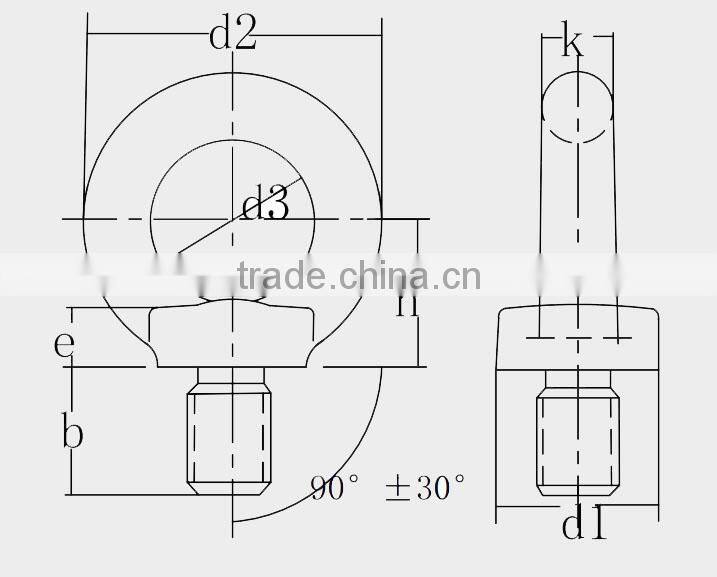

Size(d) | WLL(t) | WLL(t) | DIMENSIONS | Weight(kg) | ||||||
d1(mm) | d2(mm) | d3(mm) | b(mm) | e(mm) | h(mm) | k(mm) | ||||
M6* | 0.07 | 0.05 | 17 | 28 | 16 | 13 | 6 | 17 | 6 | 5 |
M8* | 0.14 | 0.095 | 20 | 36 | 20 | 15 | 6 | 18 | 8 | 6 |
M10* | 0.23 | 0.17 | 25 | 45 | 25 | 18 | 8 | 22 | 10 | 11 |
M12 | 0.34 | 0.24 | 30 | 54 | 30 | 22 | 10 | 26 | 12 | 18 |
M14* | 0.49 | 0.34 | 35 | 63 | 35 | 28 | 12 | 30 | 14 | 28.5 |
M16 | 0.7 | 0.5 | 35 | 63 | 35 | 28 | 12 | 30 | 14 | 28 |
M20 | 1.2 | 0.83 | 40 | 72 | 40 | 30 | 12 | 35 | 16 | 45 |
M22* | 1.5 | 1.05 | 45 | 81 | 45 | 35 | 14 | 40 | 18 | 67 |
M24 | 1.8 | 1.27 | 50 | 90 | 50 | 38 | 16 | 45 | 20 | 87 |
M27* | 2.5 | 1.65 | 50 | 90 | 50 | 38 | 18 | 45 | 20 | 88 |
M30 | 3.6 | 2.6 | 65 | 108 | 60 | 45 | 18 | 55 | 24 | 166 |
M33* | 4.3 | 3.2 | 65 | 108 | 60 | 45 | 22 | 55 | 24 | 172 |
High Quality DIN 580 Swivel Eye Screw
High Quality DIN 580 Swivel Eye Screw
