Home > Industrial Equipment & Components > Engine & Part > Engine > 5HP Air-Cooled High Speed Diesel Engine (KA178F)

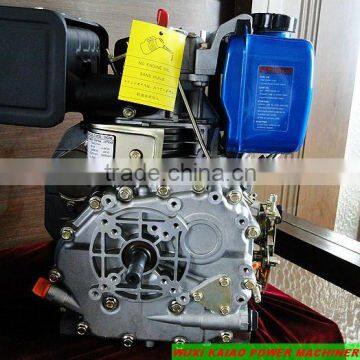

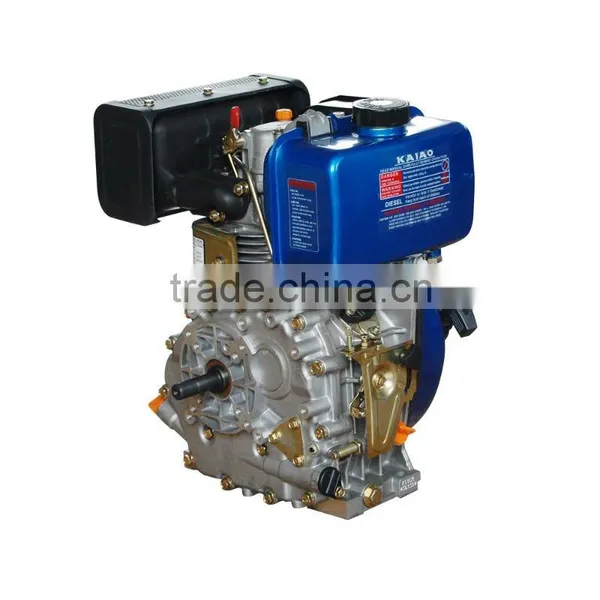

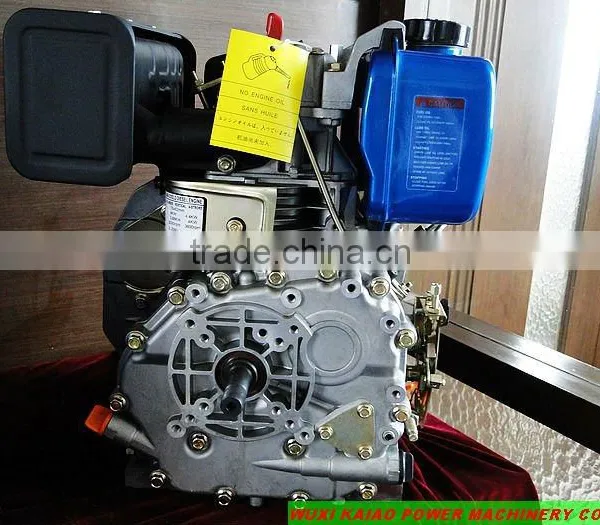

5HP Air-Cooled High Speed Diesel Engine (KA178F)
US$ 188 - 311
MOQ: 10 Sets
Key Specifications
Get Latest Price
Fuel:
Diesel
Stroke:
4 Stroke
Cylinder:
Single Cylinder
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Single-Cylinder Diesel Engine /Air Cooled Power EngineUS$ 211 - 240MOQ: 10 Sets -
Diesel Engine /Air Cooled Power EngineUS$ 205 - 230MOQ: 10 Sets
-
8HP Recoil and Electric Start Diesel Engine (KA186FS)US$ 209 - 340MOQ: 10 Sets
-
Single-Cylinder and 4-Stroke Air-Cooled Diesel EngineUS$ 175 - 240MOQ: 10 Pieces
-
1-Cylinder and 4-Stroke Air-Cooled Diesel EngineUS$ 178 - 233MOQ: 10 Pieces
Fuel
Diesel
Stroke
4 Stroke
Cylinder
Single Cylinder
Cold Style
Other, Air-cooled
Start
Electric Start
Place of Origin
Jiangsu, China
Brand Name
KAIAO
Model Number
KA178F
Diesel Engine/Motor
1.5HP/3000rpm, 5.5HP/3600rpm
2. CE approved powerful output
3. Simple installation & stable operation
4. Fuel-saving, quick starting
5. Low noise & convenient maintenance

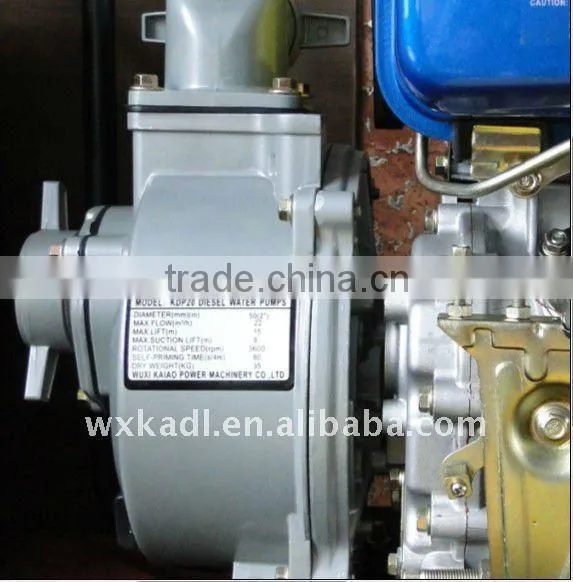

6. Wide application, such as generating sets & water pump
Wuxi Kaiao Power Machinery Co., Ltd. specialized in the development and manufacture of small special:
Air-cooled diesel engine(KA170F, KA178F, KA186F, KA186FA, KA2V86),
Air-cooled diesel generator set(2KW--8.5KW)
Water-cooled Diesel Generator(10kw-100kw),
Water pump unit(2 '', 3 '', 4 '')
Electric welding set, construction machinery, and gardenging machinery, etc.
| WUXI KAIAO POWER MACHINERY CO., LTD | |
| Model | KA178F |
| Rated output(HP/rpm) | 5HP/3000rpm, 5.5HP/3600rpm |
| Rated output(KW/rpm) | 3.7KW/3000rpm, 4.4KW/3600rpm |
| Engine type | Single-cylinder, vertical, four-stroke, air-cooled, direct injection |
| Cylinder Diameter*stroke(mm) | 78X62 |
| Piston displacement (L) | 0.296 |
| Compression ratio | 20 |
| Rated power/Rated speed(kW/rpm) | 3.68/3000 4/3600 |
| Max. no-load speed(r/min) | 108% of Rated rotary speed |
| Min. no-load speed(r/min) | 1300 |
| Lubrication system | Pressure splash Type |
| Engine starting system | Recoil starter or Electric starter |
| Output terminal rotation | AnticlockWise |
| Fuel oil model | Summer: 0#, Winter: -10# |
| Fuel tank capacity (L) | 3.5 |
| Fuel consumption rate(g/kW. h) | 276.1/3000 285.6/3600 |
| Oil consumption rate(g/kW. h) | 4.08 |
| Oil grade | CD grade or SAE10W-30, 15W-40 |
| Valve clearance(cold state) mm | 0.10-0.15 |
| Lube oil capacity (L) | 1.1 |
| Starting motor (V, kW) | 12V 0.8kW |
| Charging generator(V, A) | 12V 3A |
| Battery capacity(V, AH) | Above 12V-36AH |
| Dimension (L*W*H)(mm) | 480*435*520 |
| Net weight(kg) | 33 |
