2015 New Hihg Precision Leveling and Cut to Length Line

2015 new Hihg precision leveling and cut to length line

Process Flow

Loading car → Hydraulic Decoiler → Leveling machine→ Side Guide Device → NC dimension machine→ Hydraulic shear machine → delivery belt → Conveyor →Lifting material stacking platform

Main Technical Parameter

Material of coils: carbon steel, color steel, galvanized steel and etc
Yield strength:380Mpa-500Mpa
Strip thickness: (0.1~10) mm
Strip width: 300~2000mm
Steel Slitter Inner diameter of coils:Φ508mm
Max .outer diameter of coils: Φ2000mm
Steel Slitting Machine Max .coil weight: 35000kgs
Slitting speed: (0~120) m/min, adjustable
Slitting pieces: according to client's demand

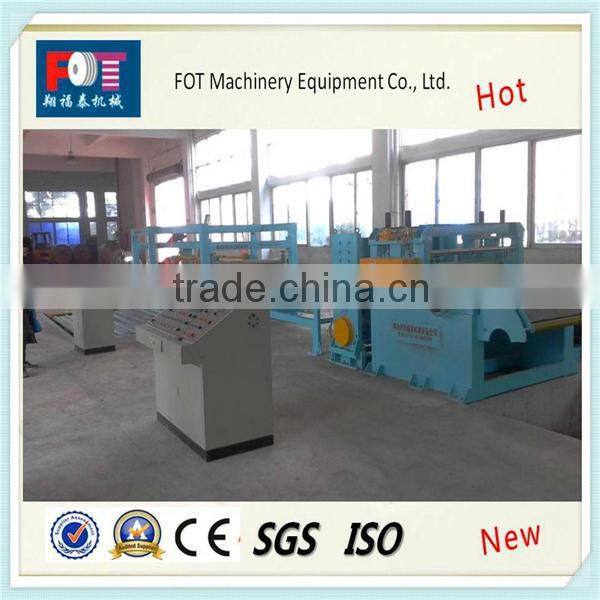

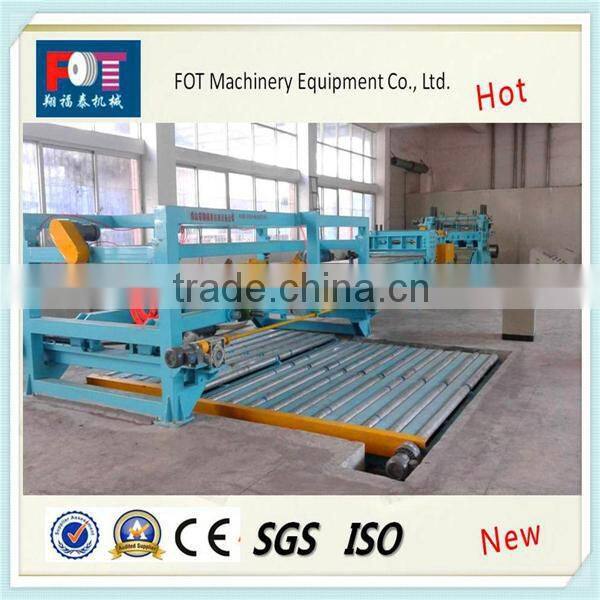

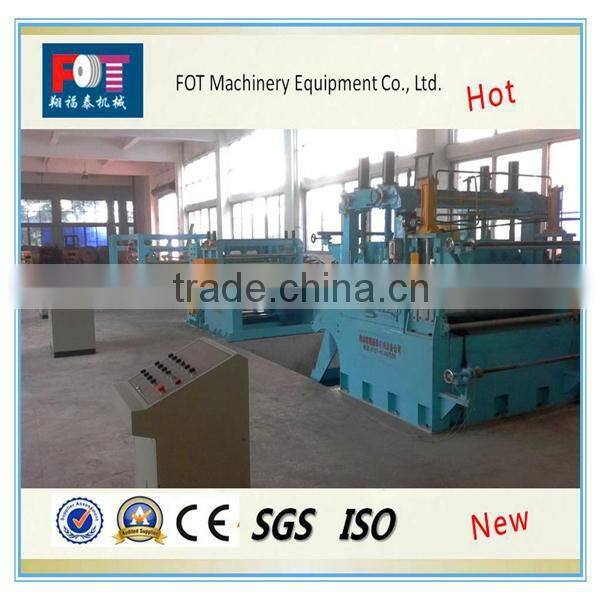

 Product show

Main Feature:

Cut To Length Lines is used for uncoiling, straightening, gauging, cross-cutting to length and stacking work. It performs a variety of operational functions including cut sheet leveling, edge trim (if required), cut to length and stack sheets and plates. The cut to length line can make sure of accurate feeding and shearing. It can be widely used in cold or hot rolling carbon steel, tinplate, stainless steel and all the other kinds of metal materials with surface coating.

Cut to length line machine is controlled by PLC system or manually as required by the customer. It has PLC controlled single shaft feeder, the information of length, shearing numbers and speed can be input to the HMI. When the need shearing number is reached the line can stop automatically. The line speed can be adjusted. It has a gauge with high precision, and whole line can work automatically and operate easily thereby producing smooth sheets.

Various Components are included in Cut To Length Machines like coil car, decoiler, entry support device, width adjustor device ,straightening machine, gauge table, shearing machine, run out table, pneumatic discharge and stacker device, unloading table, pneumatic system, Electrical system with computer PLC program control, Hydraulic system etc.
