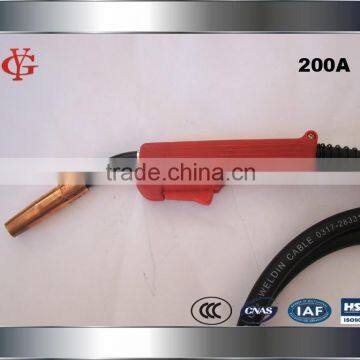

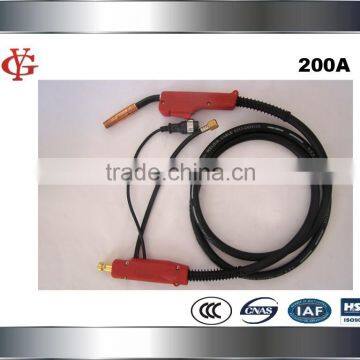

Item: Panasonic200A Air Cooled MIG/MAG/CO2 welding torch
Rating: 200A CO2
160A Mixed Gases
Duty cycle: 60%
Wire size: 0.8-1.2mm
Weight: 3-6kgs

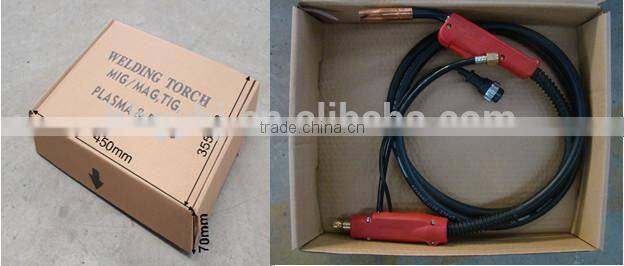

1pc/small box five small boxes put in one big box
SMALL BOX:
packing size:450* 355*70mm
Volume: 0.112CBM
material: strong carton
weight:0.3kg
BIG BOX:
packing size: 480*360*410mm
volume: 0.07CBM
material: strong carton
weight:1kg
All packing is neutral if no special requirment. Private lable is accepted.
Delivery time: about 20 working days after deposit

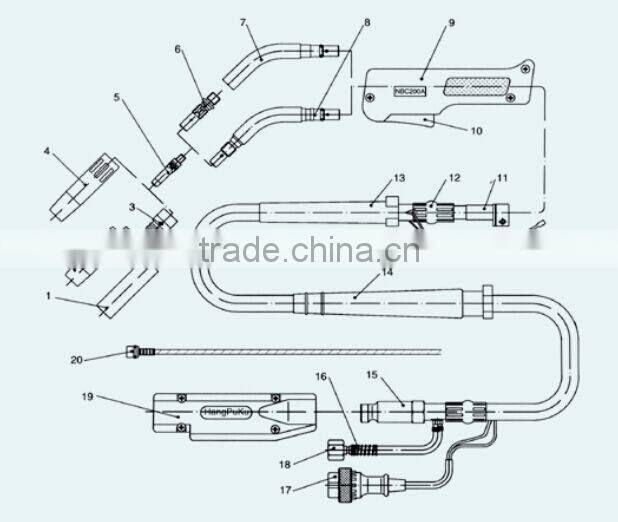

NO. |
Description |
| 1 | cylindrical nozzle Φ 15mm |
| 2 | conical nozzle Φ13mm |
| 3 | insulator |
| 4 | self-insulated nozzle |
| 5 | contact tip |
| 6 | tip holder |
| 7 | swan neck seperable |
| 8 | swan neck complete one |
| 9 | front handle |
| 10 | switch |
| 11 | switch connector collet |
| 12 | clamp |
| 13 | front cable support spring |
| 14 | back cable support spring |
| 15 | cable connector rear |
| 16 | gas inlet adaptor assemble |
| 17 | control lead plug |
| 18 | nut |
| 19 | cable support machine side |
| 20 | steel liner |
Different solution
Related product
Established in 1973, Renqiu Gaoyi Welding Equipment Co., Ltd.,specilized in welding torch and spare parts. We make CO2/MAG/TIG welding machines, air plasma cutting machines, air protective torches, cutting torches and various spare parts. Our product passed ISO9001:2000 and CCC. There are compatible torch and parts for Binzel, Panasonic Osaka, OTC, SAF, Dadian, Rili, Miller, Lincoln, Esab, Lishui. Spare parts include wire feeders, wire rollers, nozzles, insulators, liners, contact tips, European style connectors, rubber hoses, electrode heads, caps and rods and water passage cables. We can do as your drawings and samples.
Our spirit: customer first, quality best!
