Specifications
cnc leather cutting machine1)DSP controller system with USB interface
2)CE
3)vacuum absorb table and no oil vacuum pump
LX1325 cnc leather cutting machine foe price
1.Brief introduction
LX1325 machine adpot laser-cnc router seperated,DSP controller system with USB interface,handle controller,easy operation.The machine is equipped with the imported linear guid rail,ball bearing piece.Adopt big power servo engine drive system,together with the Italy air cooled big power cutting main axis make the speed of enraving faster.
2.Specification:
| X working travel | 1300mm |
| Y working travel | 2500mm |
| Zworking travel | 450mm |
| X Y Z structure | X Y rach,Z screw |
| table size | 1300*3000mm |
| working size | ±0.04mm |
| location precision | 0.05mm |
| table structure | vacuum adsorptioin T |
| power consumption | 8KW |
| max travel speed | 50000mm/min |
| max work speed | 25000mm/min |
| spindle power | 4.5KW |
| laser power | 80-100w |
| the speed of spindle | 0-24000r/min |
| the type of running | stepper option servo |
| working voltage | AC380v/50-60hz |
| working order | G code |

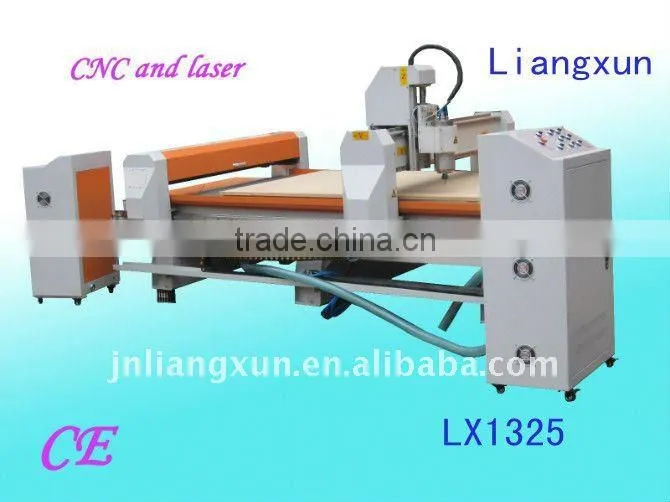

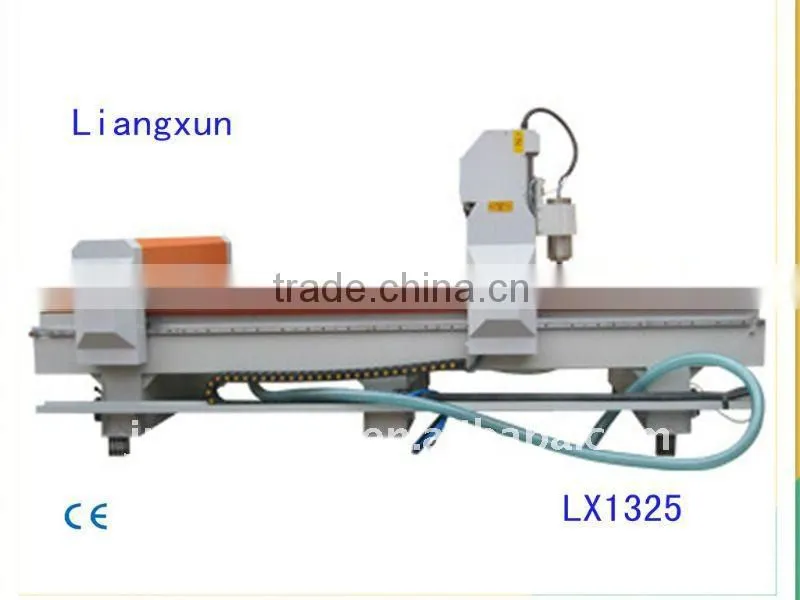

3.Picture of cnc laser machine
4.Applicable
Applicable material:
MDF ,wooden plate,veneer,wood ,PVC,and all metal and nonmetal materials.
Applicable Industry:
woodworking industry,3d wave board processing,cupboard doors,crafts wooden doors,unpainting door,screen,crafts windows,milling and engraving on the furniture and company logos,laser engraving and cnc cutting of home appliances,decoration,wooden doors,hollow engraing,musical instruments,as well as the advertising materials of acrylic ,double-color board,PVC,plastic board ,luminous panel,light box etc.
Why do you choose Liangxun laser machine:
1) 24 hours technician professional and timely after-sale service.
2)12 months for machine,10 months for the laser tube,long life span of laser tube:1500-3000 hours.
3) International quality certificate:CE,FDA,SGS,ISO9001:2008
4)Customers could choose equipment and solutions such as flat worktable, aluminium bar worktable auto up-down worktable and so on.
Looking for agents all over the world!
