Help CenterXenon Lamp Test Manufacturer With Lower Price/Xenon Lamp Weatherometer Testing
Related Products
-
Xenon Lamp Weather Resistance Test Instruments ManufacturerUS$ 7,500 - 50,000MOQ: 1 Set -
Xenon Lamp Weathering Test Instruments ManufacturerUS$ 7,500 - 50,000MOQ: 1 Set
-
Xenon Lamp Weathering Test Machinery China SupplierUS$ 7,500 - 50,000MOQ: 1 Set
-
Xenon Lamp Aging Test Machinery for SaleUS$ 7,500 - 50,000MOQ: 1 Set
-
Xenon Lamp Aging Test Machine China ManufacturerUS$ 7,500 - 50,000MOQ: 1 Set
Equipment Summary:

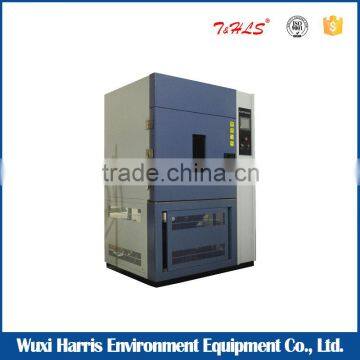

Xenon Lamp Aging Resistant Test Chamber is a comprehensive climate testing machine, can do climatic aging test and the lightfastness test of polymer materials which exposed at simulated sunlight. It simulates the light, temperature, rainfall, condensing, humidity to test the materials; it can be used for choosing new materials, improving existing materials, or assessment of change in material composition;
Corresponding Standard:
GB12831-86 Vulcanized rubber artificial climate (xenon lamp) Aging Test Method
GB/T1644.2-1999Plastics laboratory light exposure test method
GB/T8427-89 textile color fastness test, resistance to artificial light fastness xenon arc
GB/T8430-98 textile color fastness test, resistance to artificial light fastness xenon arc
GB/T1865-97 Paints, varnishes, artificial weather aging and artificial radiation exposure
GB/T16991-97 textile color fastness test,
GB/T5137.3-96 simulated climate test method of resistant to radiation, heat, humidity, burning
GB/T16259-96 color building materials, artificial climate accelerated aging test method.
GB/T2423.24-95 Electronic and Electrical Products Environmental Testing Part II: test method, testing SQ: Simulation of solar radiation on the ground
Applicable Industries Of the Climatic Chamber:
Weather-resistant Xenon Lamp Aging Resistant Test Chamber applied to control the product quality, such as electronic, plastic products, electrical appliances, instruments, food, vehicles, metals, chemicals, building materials, aerospace, medical care ... and so on.
| Model | TSN-900 xenon lamp test manufacturer with lower price | |
| Testing room D×W×H | 100*100*100cm | |
| Index | Temperature range | RT+10°C~80°C |
| Humidity range | 65% to 98%R·H | |
| Spray time | 1 to 9999min, abjustable | |
| Spray cycle | 1-240min, interval adjustable | |
| spectral wavelength | 290nm to 800nm (550w/m2) | |
| light source | Full spectrum xenon lamp (air-cooled) | |
| Xenon lamp power | 2.5 kw (longevity: 1600H) | |
| Control | Time controller | Import controller from Moeller |
| system | Accourate range | Temperature: ±0.1 degree / humidity: ±0.1R·H |
| Sensor | Platinum resistance Pt 100Ω/mv | |
| Heating system | Independent system, nickel chromium alloy electric heating type heater | |
| Humidity system | stainless steel, external Isolated humidifier | |
| Blackboard temperature/Irradiance | Bimetal thermometer blackboard 55~75 degree/Full spectrum Irradiatometer | |
| Water supply | Humidification water supply with automatic control, xenon lamp cooled by water recycling | |
| Temperature controller | Import controller | |
| Cycle system | low-noise air-conditioning-type motors, multi-leaf-type centrifugal wind wheel | |
| Material | Outside material | Advanced spray color plate /SUS304 stainless steel |
| Inside material | SUS304 stainless steel | |
| Sample holder material | SUS304 stainless steel | |
| insulation | High and low temperature aging of silicone rubber | |
| Standard | a set of radiation-proof glass window, dynamic testing sample shelf 1, xenon lamp tube 2 | |
| Protector | Leakage, short circuit, over-temperature, water shortages, motor overheating, over-current protection. | |
| Power | AC380V±10% 50±0.5HZ , Three-phase five-wire system | |
| Environmental temperature | ±5+30 ≤85%R·H | |
