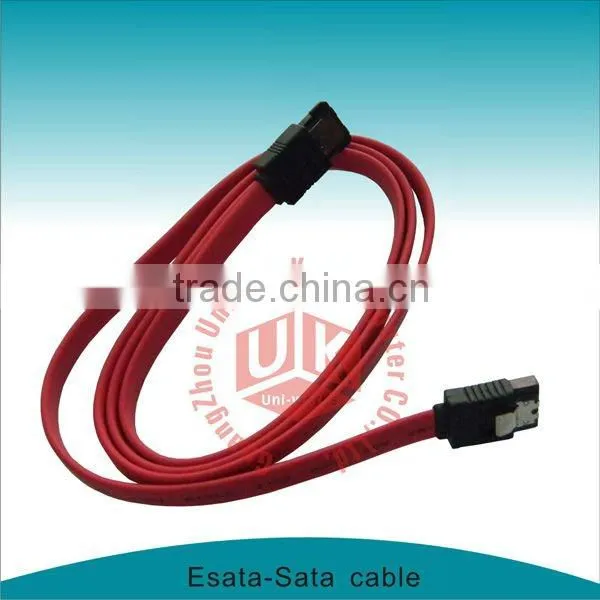

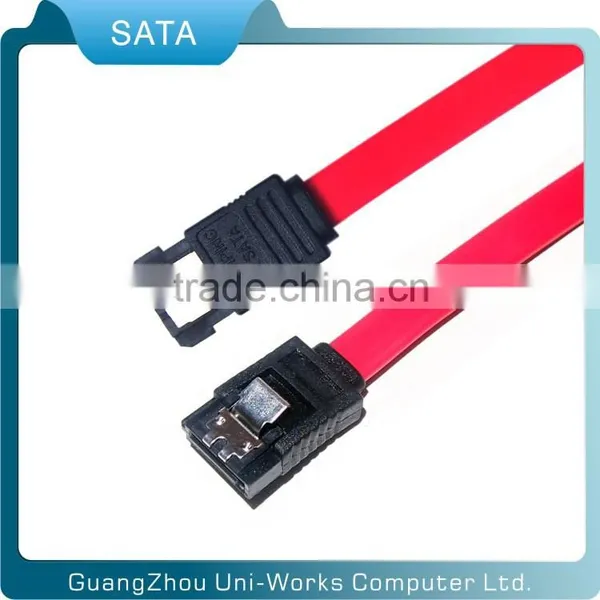

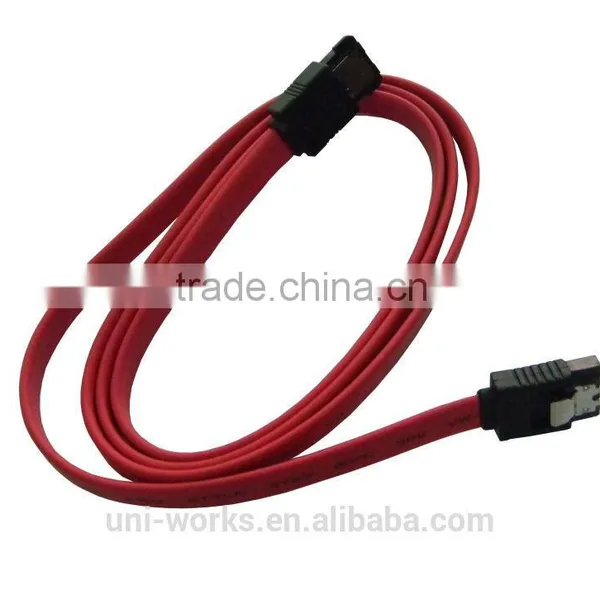

eSATA to SATA Cable 7Pin External Cable
Description:
Serial ATA cables are replacing wide Parallel ATA ribbon cables in many applications. The Serial ATA cable is smaller, more flexible, and therefore easier to route inside a chassis. With the trend toward miniaturization, these characteristics are beneficial in many product designs. The cables feature two shielded 26 AWG pairs in a PVC jacket, gold plated contacts, and two straight polarized seven position connectors.
Shielded eSATA to SATA Cable Serial ATA Type I - L 7Pin
1.Achieve 1.5 GB/s and up to 3 GB/s data transfer
2.Longth: 0.5-1M
Shielded eSATA to SATA Cable Serial ATA Type I - L 7Pin
This high performance shielded eSATA cables allow you to take advantage of the benefits the SATA interface brings to storage, and use them in your external connections.
Perfect for connecting external drives with eSATA connectors to regular SATA motherboards.
Features:
- Achieve 1.5 GB/s and up to 3 GB/s data transfer
- Connects directly to SATA II enabled hard drive enclosures
- Compact: Easily stores when not in use
- Can be used with NEW SATA II or OLDER SATA I hard drive enclosures
- Flexible for easy positioning
- Conductor: 26AWG tinned stranded copper
- Isolator: HDPE or FOAM PE or FOAM PP
- Shielding: Self-Cling Aluminum Mylar Tape
- Braid: 85% Coverage Min 16/8/0.1 tinned copper
- Jacket: 80C PVC OD 3.7mm*9.4mm+/-0.2
- Longth: 0.5-1.0M
- Connector:
- Housing: Temperature polyester & Glass fiber, UL 94V-0
- Terminal: Copper alloy
- Plating: nickel plated
- Impedance: 100+/-15 ohms (Mated connector)
- Attenuation: 6 dB Max from 10MHz ~ 4500MHz
- Crosstalk (NEXT): -26dB Max from 10MHz ~ 4500MHz
- Intra pair skew: 10 pcs Max
- Rise Time: 85 ps Max
- Color: red,Black
Our service:
1.OEM eSATA to SATA Cable pack,we could do free design as customer requirement.
2.With our own brand carton or as customer requirement if qty up to 3k.
3.Protection of your sales area,ideas of design and all your private information.
Payment term:
1.Payment:T/T only,30%deposit,the balance before delivery.
2.Production leading time:10-15days,see qty to confirm.
3.Shipping out:Guangzhou or Shenzhen.
