W24Y 100 steel roller frame bending machine
W24Y 100 steel roller frame bending machine performance:
1. Shafts made of speical steel, hardened and grounded.
2. Separate and moveable control panel .
3. Water coolant system to keep hydraulic oil temperate.
4. Guide rolls are hydraulic moveable up and down to curve different arc.

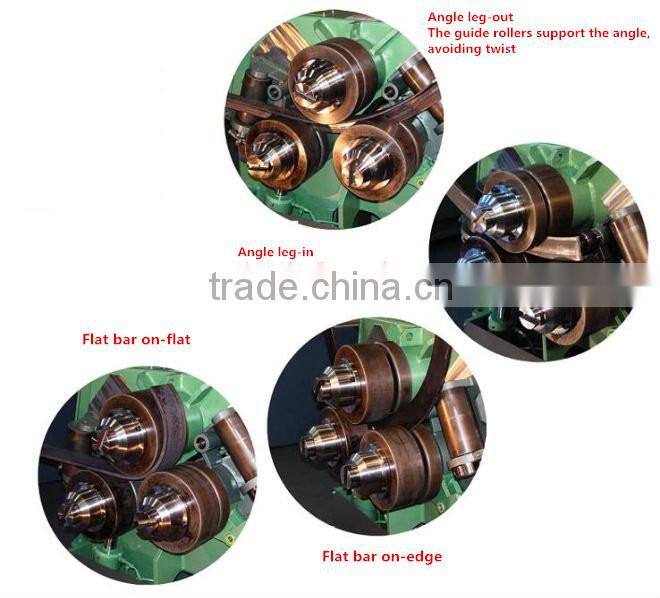

5. Ability to curve tubes, angles, H, I, U as well as other type of profiles by different rolls.

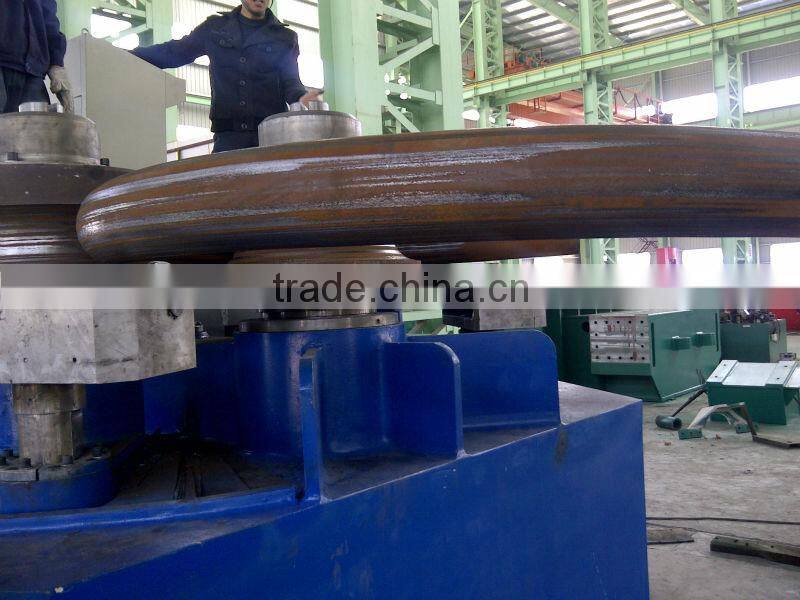

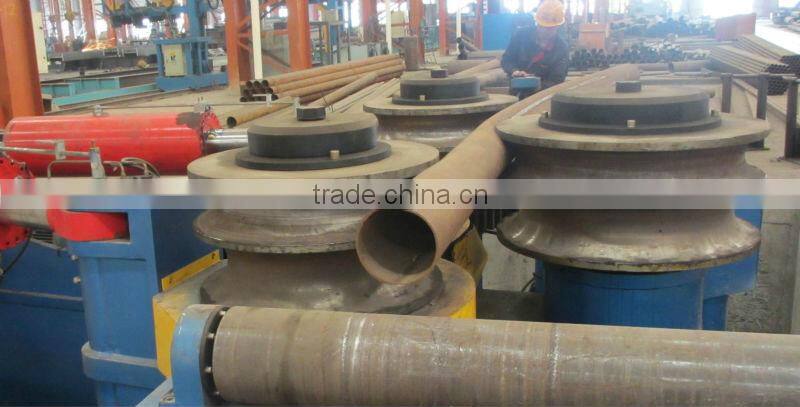

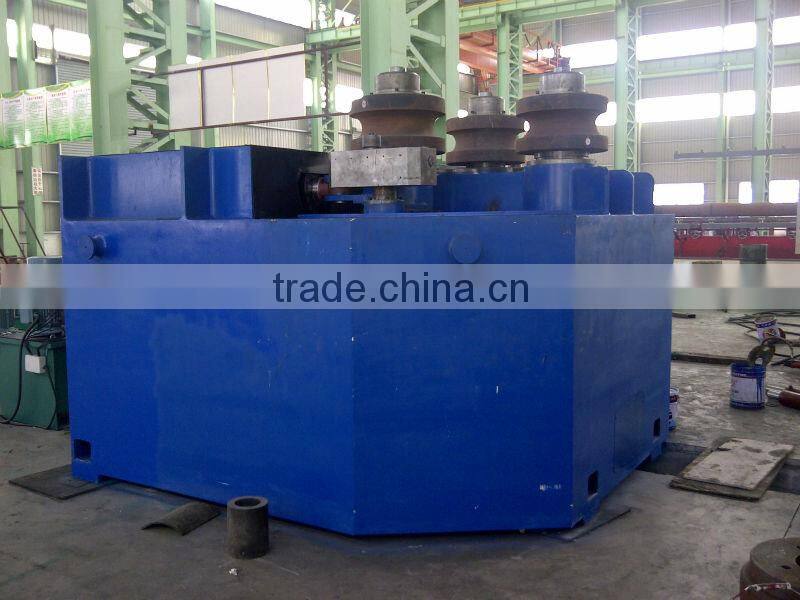

Details photos:
W24Y 100 steel roller frame bending machine parameter:
| No | Items | Parameter | Unit | |
| 1 | Max.bending no | 100 | cm² | |
| 2 | Bonding speed | 5 | ||
| 3 | Angle steel cul-turn | Max.section | 120x12 | mm |
| Min.tending DIA | 2500 | mm | ||
| 4 | Angle steel out-turn | Max.section | 140x16 | mm |
| Min.tending DIA | 1800 | mm | ||
| 5 | Channel steel out-turn | Max.section | 28 | mm |
| Min.tending DIA | 1700 | mm | ||
| 6 | Channel steel in-turn | Max.section | 28 | mm |
| Min.tending DIA | 1700 | mm | ||
| 7 | Channel steel sidu-turn | Max.section | 14.6 | mm |
| Min.tending DIA | 2500 | mm | ||
| 8 | Flat steel torzonral turn | Max.section | 250x40 | mm |
| Min.tending DIA | 1200 | mm | ||
| 9 | Flat steel sertical-turn | Max.section | 120x40 | mm |
| Min.tending DIA | 1300 | mm | ||
| 10 | Round steel bending | Max.section | 90 | mm |
| Min.tending DIA | 1100 | mm | ||
| 11 | Round tuby bending | Max.section | 159x5 | mm |
| Min.tending DIA | 2000 | mm | ||
| 12 | Square tute bending | Max.section | 100x10 | mm |
| Min.tending DIA | 2000 | mm | ||
| 13 | I steel vertcal bending | Max.section | 12.6 | mm |
| Min.tending DIA | 2500 | mm | ||
If you have any other requirements for the size, pls do not hesitate to contact us, or you can advise us your ideas or thoughts for the machine, we can kindly design for you and communicate with you for the details.

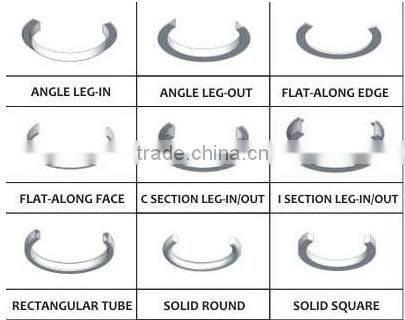

Our machines can bend wide range of structural steel section,Flat bars, Solid Square or Round , Angle Iron (Leg In or Out), Round Tube, Square Tube, Rectangular Tubing and so on.
1.How about your W24Y 100 steel roller frame bending machine quality?
Better is a mature brand in CHINA,through our many years research in technology. our design including structure and detailed security and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are Better machines.
2. What’s your after-sale service?
Better provide oriented after-sales service including the oversea engineers training available and also international dealer center for any emergency guidance.We have established worldwide network to guarantee our timely response for your any demand no matter where are you.
We welcome engineers from your side to learn the technical design and normal maintenance here,this will help your easy in understanding and helpful if you need to be our dealer.
3. How to operate your W24Y 100 steel roller frame bending machine?
Don’t worry,we have our company own CD/Manual to show you along with the machine.So you can learn this from the existing documents to deepen your knowledge and understanding. Anyhow there are another way is through internet video face to face for machine teaching, because of the high development in internet,the world has become smaller and you can easy catch us if any assistance needed .
