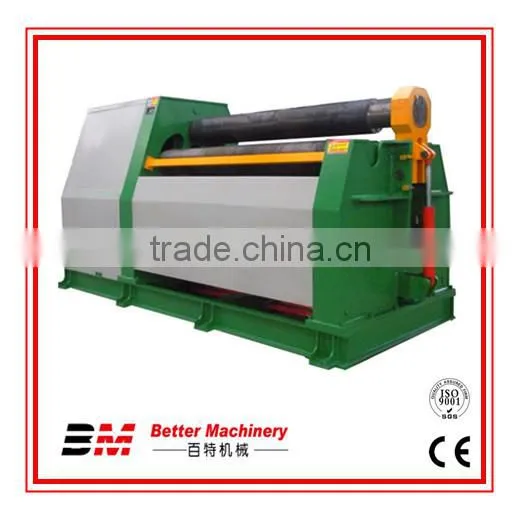

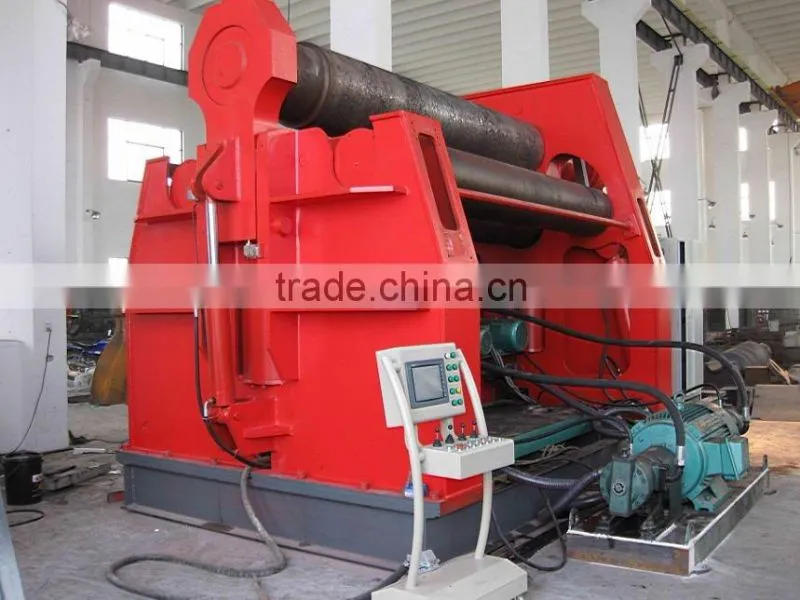

Rod W12 16x3200 prebending rolling machines
W12 16x3200 prebending rolling machines performance:
1.It is a kind of four-roller symmetrical machine with hydraulic pressure. It can shape steel board
into cylinder, U model etc.
2.The up roller is the main drive.Through the reducer output gear and gear meshing to provide torque for coiled sheet.
3.The down roller make the vertical movement by the hydraulic cylinder.
4.Cone rolling is much easier.
5. Hydraulic drop end for ease of finished cylinder removal, and conical bending device.
6. Emergency system: safety string barrier around the machine and emergency push button.
W12 16x3200 prebending rolling machines parameter:
| No | Items | Parameter | Unit |
| 1 | Max. thickness of coiled plate | 3200 | mm |
| 2 | Max. width of coiled plate | 16 | mm |
| 3 | Pre bending plate thickness | 12 | mm |
| 4 | Min. diameter | 800 | mm |
| 5 | Max. width of coiled plate | 245 | mm |
| 6 | Diameter of top shaft | 380 | mm |
| 7 | Diameter of bottom shaft | 340 | mm |
| 8 | Near-roll diameter | 280 | mm |
| 9 | Coiling speed | 4.5 | m/min |
| 10 | Work pressure | 16 | |
| 11 | Motor power | 37 | kw |
If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.

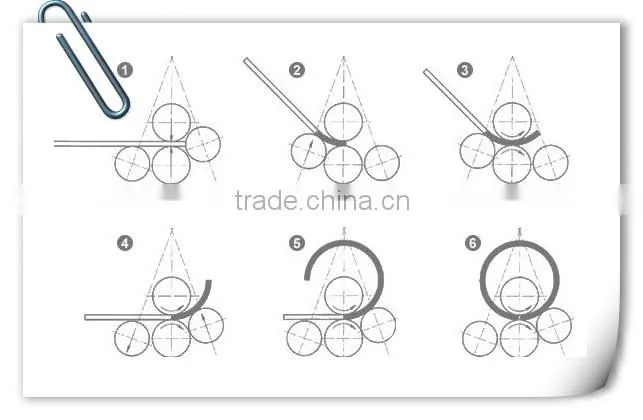

The working principle of W12 16x3200 prebending rolling machines:
1.How about your W12 16x3200 prebending rolling machines quality?
Better is a mature brand in CHINA,through our many years research in technology. our design including structure and detailed security and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are Better machines.
2. What’s your after-sale service?
Better provide oriented after-sales service including the oversea engineers training available and also international dealer center for any emergency guidance.We have established worldwide network to guarantee our timely response for your any demand no matter where are you.
We welcome engineers from your side to learn the technical design and normal maintenance here,this will help your easy in understanding and helpful if you need to be our dealer.
3. How to operate your W12 16x3200 prebending rolling machines?
Don’t worry,we have our company own CD/Manual to show you along with the machine.So you can learn this from the existing documents to deepen your knowledge and understanding. Anyhow there are another way is through internet video face to face for machine teaching, because of the high development in internet,the world has become smaller and you can easy catch us if any assistance needed .
