Professional manufacturer in China mechanical Plate Roll
| W11-6x2000 mechanical Plate Roll performance: |
High Precision
The straight enge length can be set freely, the upper roller press to pre-bend NC Control, high productivity.Parameters are controlled by NC, easy for operation, improve the productivity greatly
Good accuracy
The upper roller is like a drum, the lower rollers assorted with it through support rollers. Bend continuously, can roll ideal products from thin to thick plates widely
Safety
The lower rollers are fixed, the upper roller move vertically and horizontally. The job does not work with the working rollers. Complete structure, simple foundation, convenient movement. The machines has unitary basement, does not need earth bolts, has simple foundation
| W11-6x2000 mechanical Plate Roll specification |
NO |
ITEMS |
PARAMETER |
UNIT |
1 |
Max thickness of coiled plate |
6 |
mm |
2 |
Max width of coiled plate |
2000 |
mm |
3 |
Yielding limit of sheet metal |
245 |
mm |
4 |
Coiling speed |
4.5 |
m/min |
5 |
Loaded with the minimum coil diameter |
380 |
mm |
6 |
Diameter of top shaft |
170 |
mm |
7 |
Diameter of bottom shaft |
160 |
mm |
8 |
Power |
5.5 |
kw |
9 |
Central distance between bottom shafts |
260 |
mm |
10 |
Overall dimensions |
3650x820x1050 |
mm |
If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.

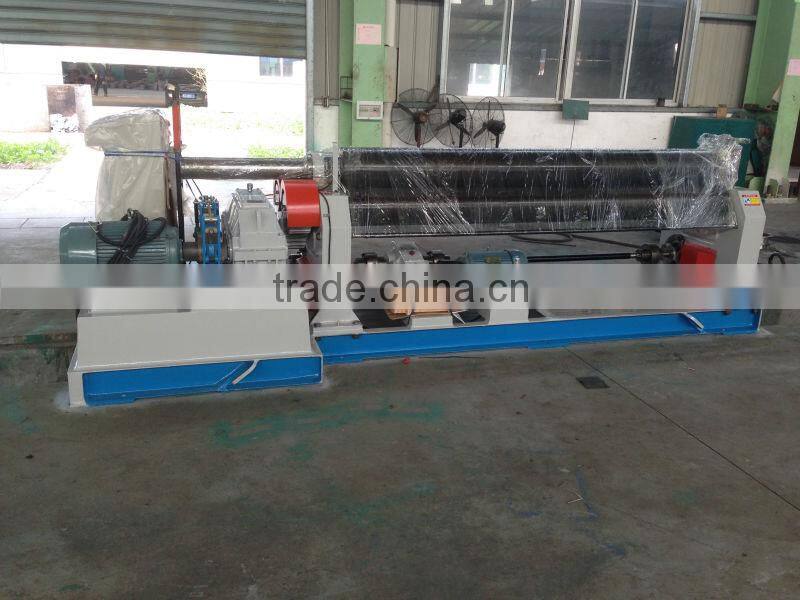

1. The front view

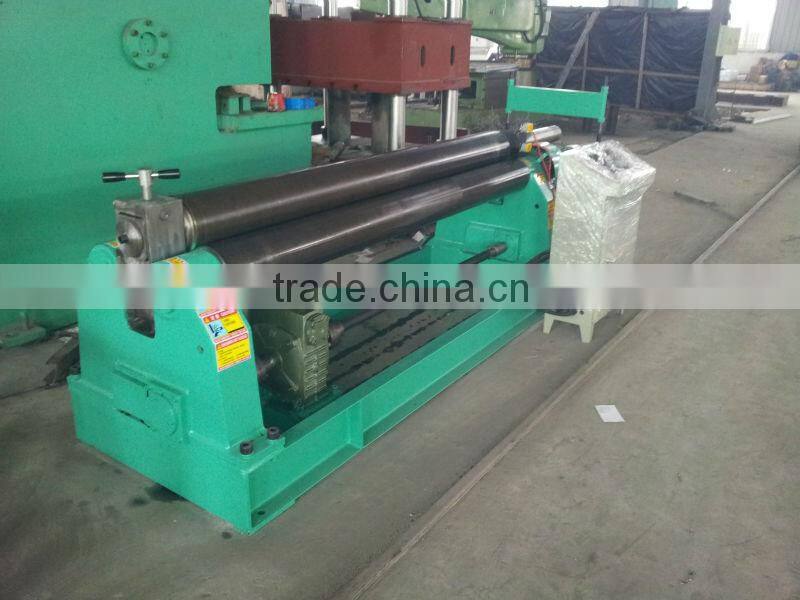

2. The side view
1.How about your W11-6x2000 mechanical Plate Roll quality?
Better is a mature brand in CHINA,through our many years research in technology. our design including structure and detailed security and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are Better machines.
2. What’s your after-sale service?
Better provide oriented after-sales service including the oversea engineers training available and also international dealer center for any emergency guidance.We have established worldwide network to guarantee our timely response for your any demand no matter where are you.
We welcome engineers from your side to learn the technical design and normal maintenance here,this will help your easy in understanding and helpful if you need to be our dealer.
3. How to operate your W11-6x2000 mechanical Plate Roll?
Don’t worry,we have our company own CD/Manual to show you along with the machine.So you can learn this from the existing documents to deepen your knowledge and understanding. Anyhow there are another way is through internet video face to face for machine teaching, because of the high development in internet,the world has become smaller and you can easy catch us if any assistance needed
