Long time service concrete leveling machine
- 80 Set / Sets per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
- Double disc driving type cement polisher concrete rag road surface polisher
- Double disc driving type cement polisher concrete rag road surface polisher
- Double disc driving type cement polisher concrete rag road surface polisher
- Hengwang HW-200 ride on concrete power trowel for sale
- Concrete tools concrete screed hand held power trowel machine
- Hand Held Power Trowel Power Float Trowel Gearbox
Product Details
Condition: | New | Place of Origin: | Jiangsu, China | Brand Name: | Better |
Model Number: | RWJP12 | Power Source: | Electric | Voltage: | 380V |
Weight: | 1080kg | Dimension(L*W*H): | 2400*2500*1422mm | Certification: | CE,ISO,TUV |
Warranty: | 12 Months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

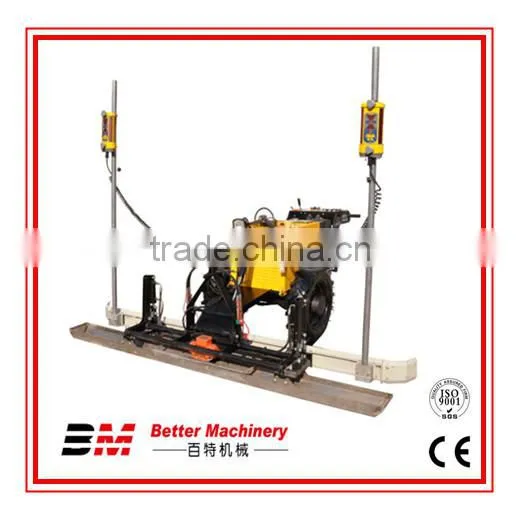

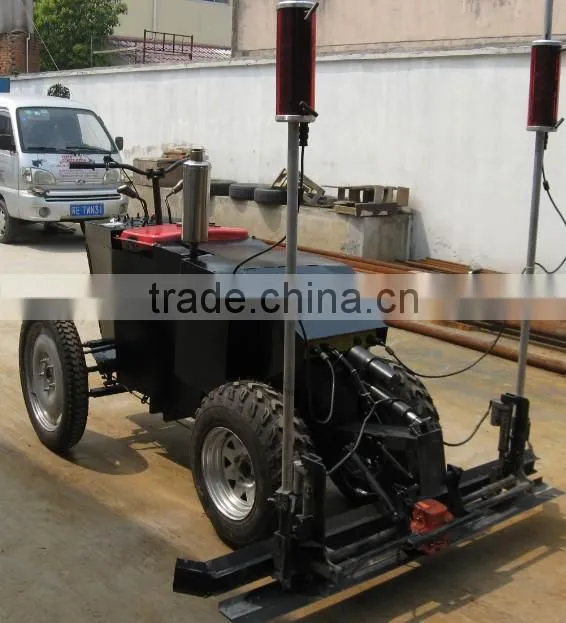

Long time service concrete leveling machine
RWJP12 concrete leveling machine performance:

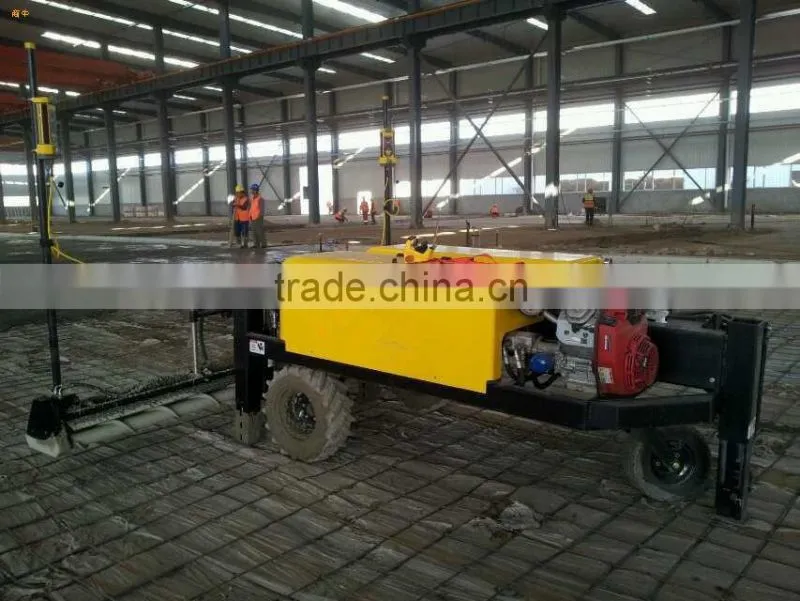

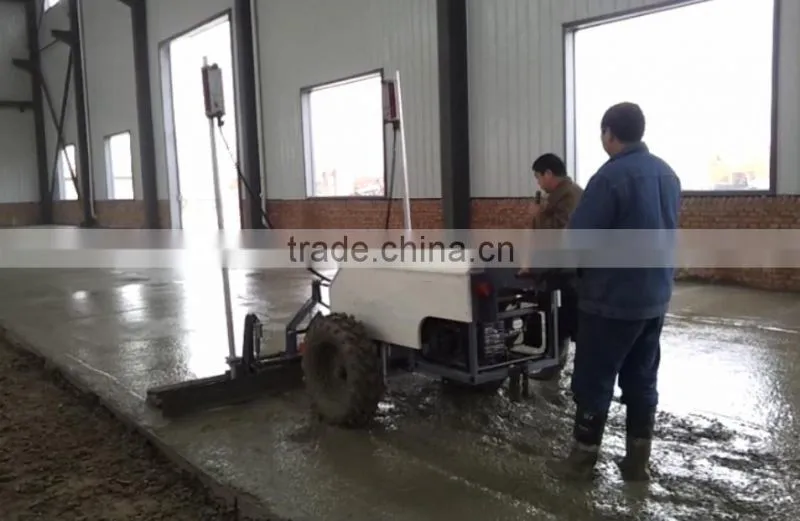

1. The concrete paver concrete laser screed is used in large area concrete construction, such as the modern industrial workshop, the large market,storage, airport, the plaza and warehouse construction, etc.
2. The concrete paver concrete laser screed can satisfy the construction requirements of large area and high planeness and levelness.
RWJP12 concrete leveling machine parameter:
Type |
| RWJP12 |
Engine |
| |
Model | HOND GX630 Electrical starting | |
Type | Gasoline, double cylinder | |
Power | 12kW/3600rpm | |
Oil tank volume | 40L | |
Lubricant L | 1.5L | |
Fuel consumption | 313g/kWh | |
Running device |
| |
Driving | Cycloid hydraulic motor | |
Wheel | Solid puncture-proof tyre | |
Speed | 0-70m/min | |
Smoothing system |
| |
Width | 2500mm | |
Paving type | with auger | |
Auger force | Large torgue cycloid hydraulic motor | |
Exciting force | 500N | |
Vibration frequency | 50Hz | |
Self-leveling control |
Proportional control
| |
Screed height | 300mm | |
Control accuracy |
±1.5mm | |
Laser control system |
| |
Control type | Microcomputer laser scan | |
Control effect | Flat, slope or double slope(3D) | |
Operation mode |
| |
Chair position | Forward type | |
Forward and reverse | Hand grip control, infinite variable speed | |
Steering | Hydraulic control | |
Cleaning system |
| |
Power | Hydraulic motor | |
Theoretical flow | 20L/min | |
Rated pressure | 7MPa | |
Size and Weight |
| |
Outside size | 2400×2500×1422mm | |
Weight | 1080KG |
1.How about your concrete leveling machine quality?
Better is a mature brand in CHINA,through our many years research in technology. our design including structure and detailed security and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are Better machines.
2. What’s your after-sale service?
Better provide oriented after-sales service including the oversea engineers training available and also international dealer center for any emergency guidance.We have established worldwide network to guarantee our timely response for your any demand no matter where are you.
We welcome engineers from your side to learn the technical design and normal maintenance here,this will help your easy in understanding and helpful if you need to be our dealer.
3. How to operate your concrete leveling machine ?
Don’t worry,we have our company own CD/Manual to show you along with the machine.So you can learn this from the existing documents to deepen your knowledge and understanding. Anyhow there are another way is through internet video face to face for machine teaching, because of the high development in internet,the world has become smaller and you can easy catch us if any assistance needed .
