High Frequency Welded Pipe Mill
High Frequency Welded Pipe Mill Performance:
The mill is intended for manufacturing of round pipe of Φ50.8mm-Φ101.6mm with thickness of 1.0mm–3.5mm from
cold-rolled and hot-rolled coil strip by means of unclosed tubular blank with its subsequent welding into tube,
edge heating by means of solid state high- frequency welder, longitudinal seam welding in rolls of tube welding machine,
cooling, further sizing or shaping and on-stream cutting of endless tube in measured lengths.
Finished product will be of round, square or rectangular pipe.
II. The technical flow of the production line
{SteelTape} → Double-head un-coiler → Strip-head Cutter and welder →
Cage Loop → Forming section(Flattening unit +Main driving unit +Forming unit +Guide unit +High frequency induction welding unit +squeeze roller)+ De-burr frame → Zinc Pinting machine → Cooling unit → Sizing unit and straightener → Flying saw under computer-control → Run-out table
III. Basic conditions:
a) Steel Pipe Specification
1. Round Pipe diameter: Φ50.8 –Φ101.6mm
Pipe Thickness: 1.0 – 3.5mm
2. Square & Rectangle Pipe: 40X40mm –80X80mm
Pipe Thickness: 1.0 – 2.5mm
3. Pipe Length: 6.0m – 12.0m
4. Length Tolerance: 0-6mm
b) SteelTape Specification
1. Material: Carbon steel (δb≤500Mpa, δs≤235Mpa)
2. Steel Tape: Inner diameter: Φ450-530mm
Outer diameter: Φmax=1600mm
Strip steel width: 160mm-360mm
Strip steel thickness:1.0mm-3.5mm
The maximum weight: 4.0 tons
c) Electricity
1. Dynamic power: AC380V±10%, 3 phases, 50Hz±1.0%
2. Control Power: AC220V±10%, one phase, 50 Hz ±1.0%
d) Electric installed capacity: appro.600KW
e) Cooling water

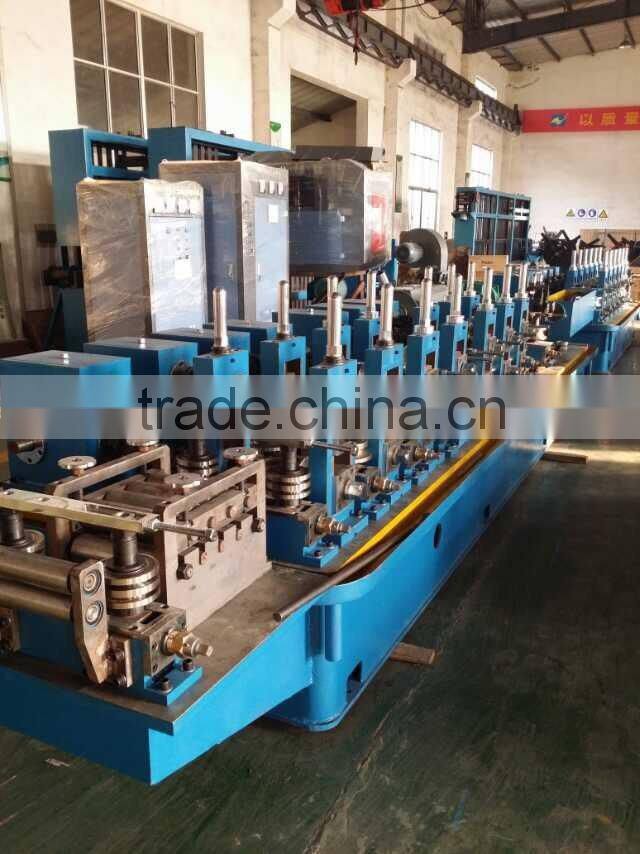

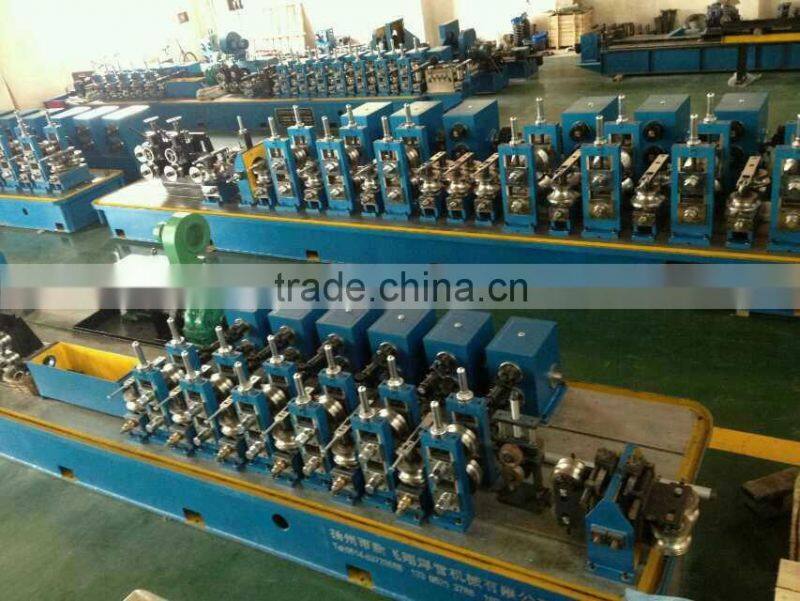

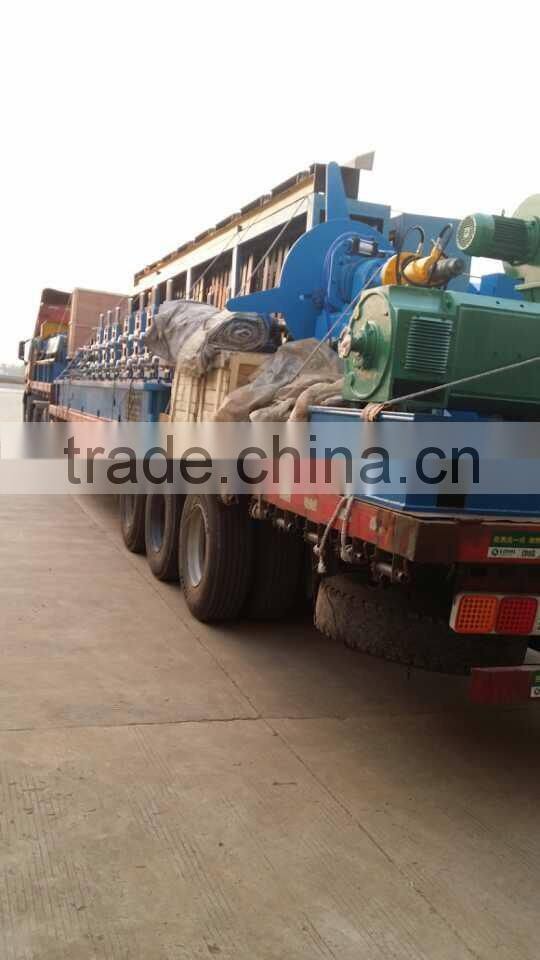

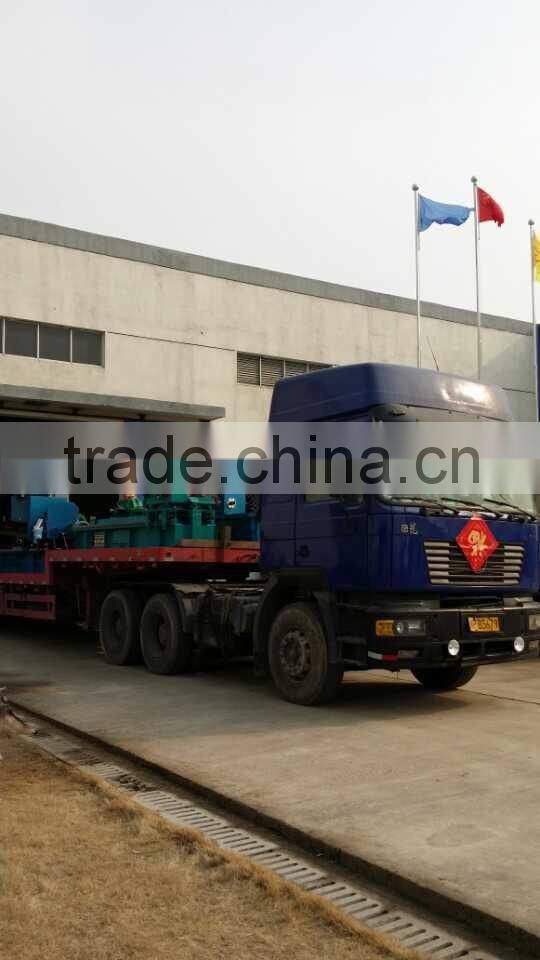

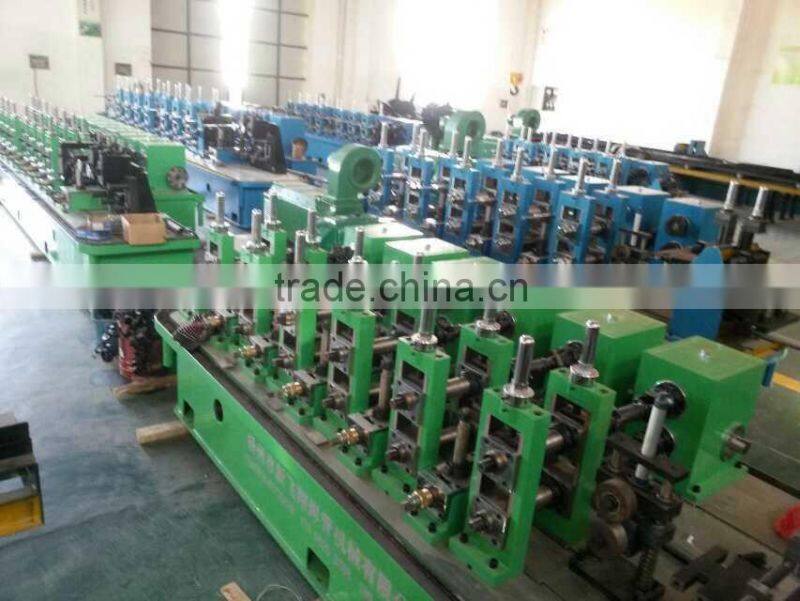

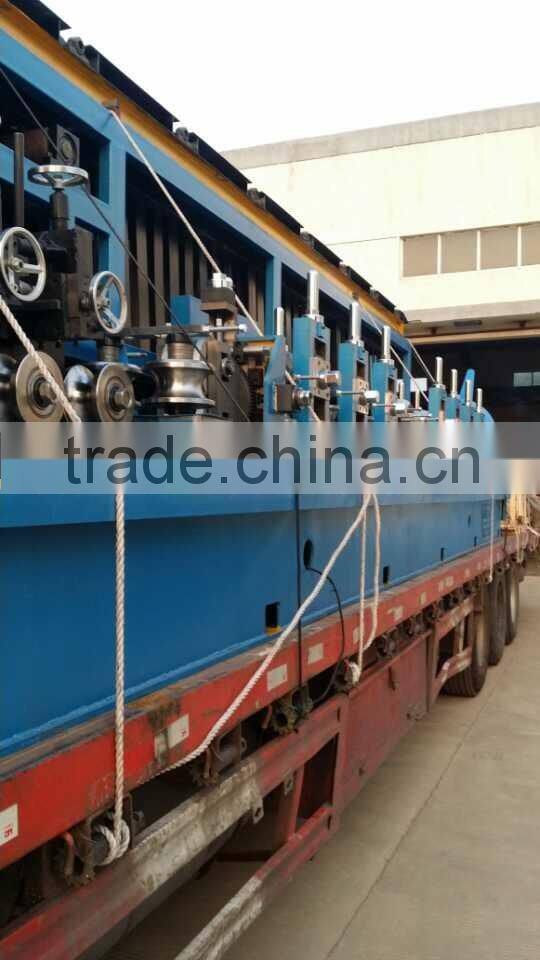

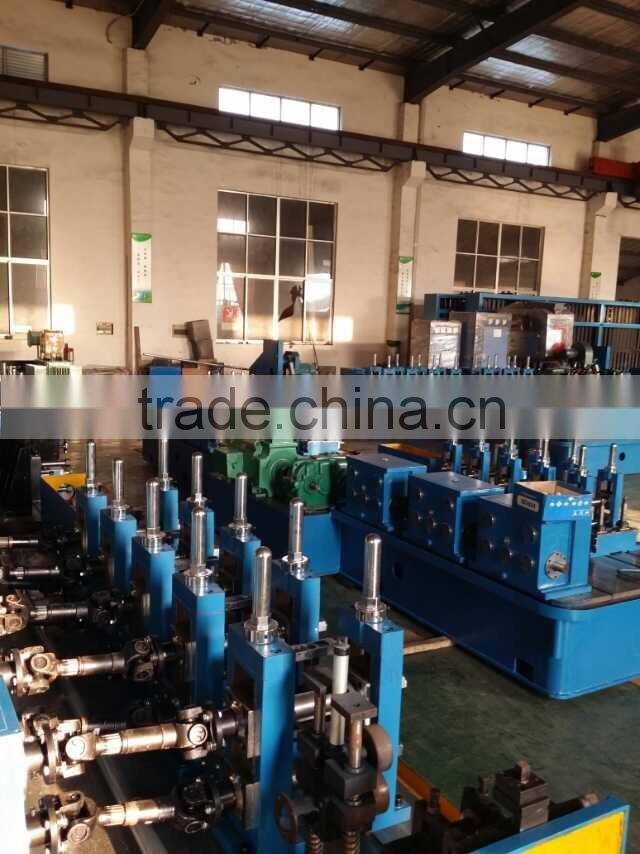

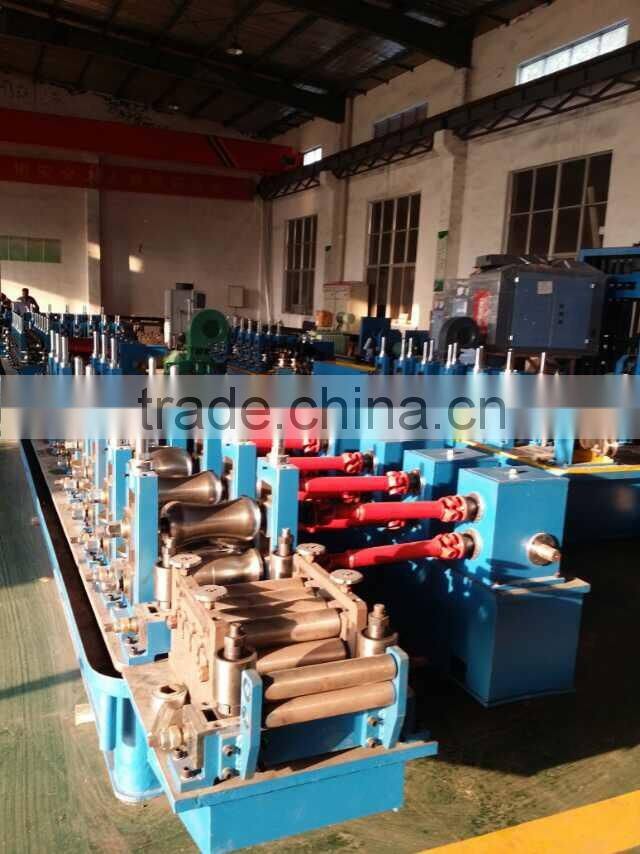

High Frequency Welded Pipe Mill Photos:

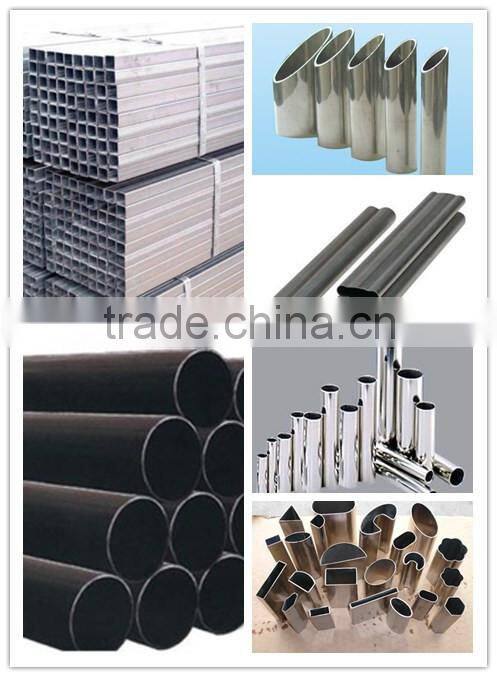

Pipe Products Show:
1.How about your High Frequency Welded Pipe Mill ?
Better is a mature brand in CHINA,through our many years research in technology. our design including structure and detailed security and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are Better machines.
2. What’s your after-sale service?
Better provide oriented after-sales service including the oversea engineers training available and also international dealer center for any emergency guidance.We have established worldwide network to guarantee our timely response for your any demand no matter where are you.
We welcome engineers from your side to learn the technical design and normal maintenance here,this will help your easy in understanding and helpful if you need to be our dealer.
3. How to operate your High Frequency Welded Pipe Mill ?
Don’t worry,we have our company own CD/Manual to show you along with the machine.So you can learn this from the existing documents to deepen your knowledge and understanding. Anyhow there are another way is through internet video face to face for machine teaching, because of the high development in internet,the world has become smaller and you can easy catch us if any assistance needed .
