Concrete Formwork
Advantages of Concrete Formwork
1. Life:turnover can be up to 40times
2. Tempreture condition:-20°C to 60°C
3. Feature:save 40%manhours and 50 %allocable cost
4. Convenient installation:be widely accepted by workers
5. Moldable size:size can be changed freely.
6. Resist compression:can support more than 5000 kilograms
7. Waterproof:100%
8. Use:be widely used in building and construction
9. Energy saving,/environmental protection,/resource circulation
Technical parameter of Concrete Formwork
Material: PVC |
Structure: solid plate |
Cycle-index: 30 times above |
Water content :0.3% |
Water thickness expansion rate: 0.1% |
Static bending strength:21.9MPa |
Bending elastic modulus:1280MPa |
Wear resistant surface(g/100r):0.08g/100r |
Condition after heating: no bubbles, no crack, no pitting |
After heating the size change rate :0.20% |
Grip screws to board : 1470N |
Grip screws to the edge of the board : 1070N |
|
Anti impact performance :14.1mm Impact toughness :64.8KJ/ m2 |
High temperature repeated dimension change rate :0.12% |
Concrete Formwork Specification:
1, 15*915*1830(mm) 16.5Kg/pc±1Kg
2, 15*1220*1240(mm) 29Kg/pc±1Kg
3, Specifications can be customized
4, About 100M3 /T

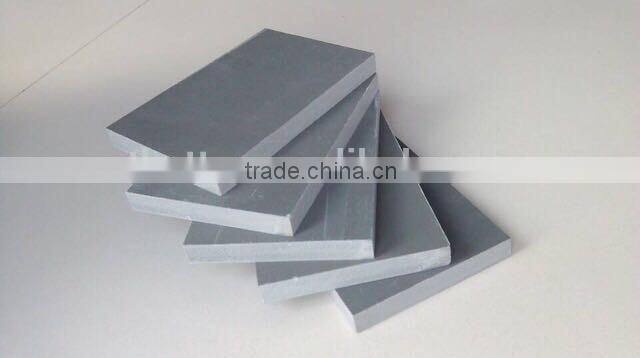

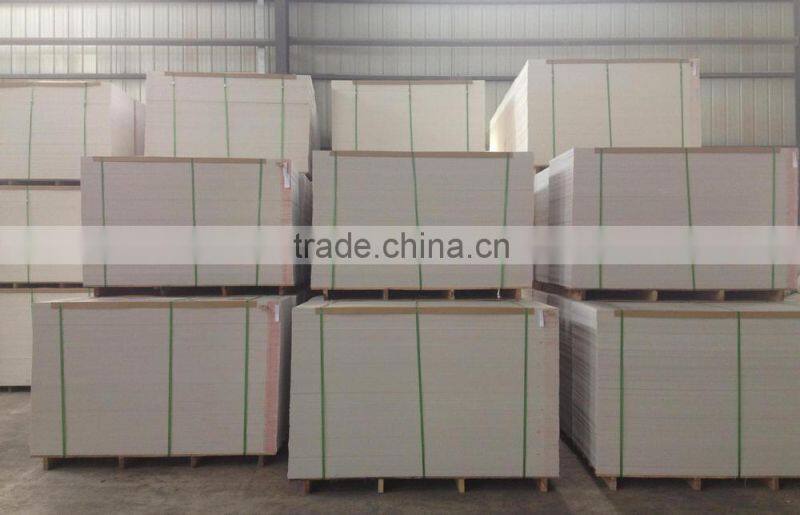

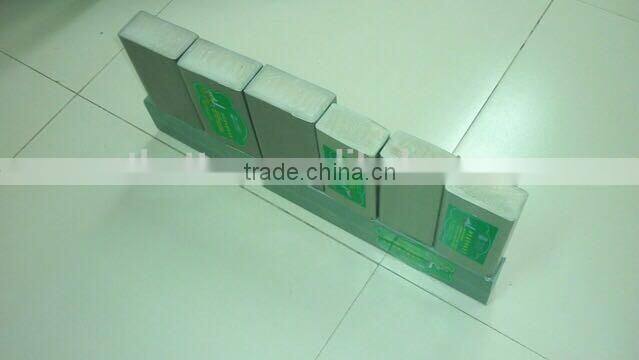

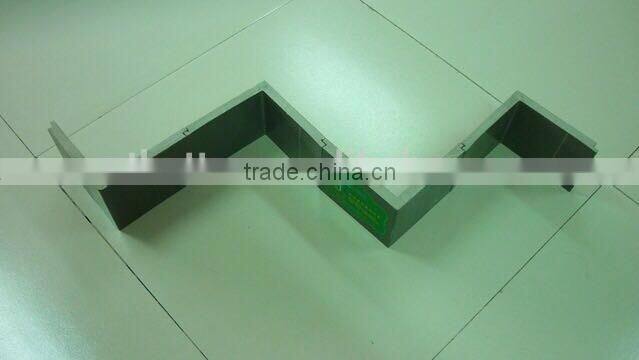

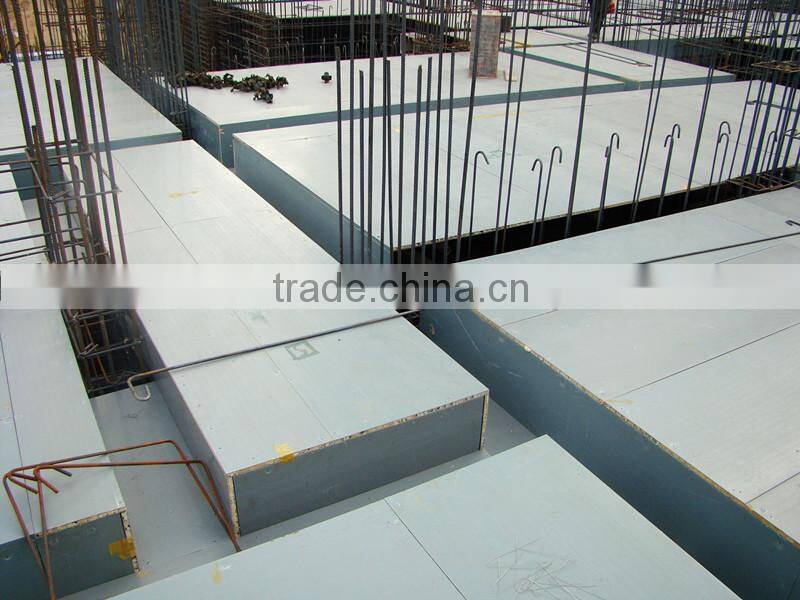

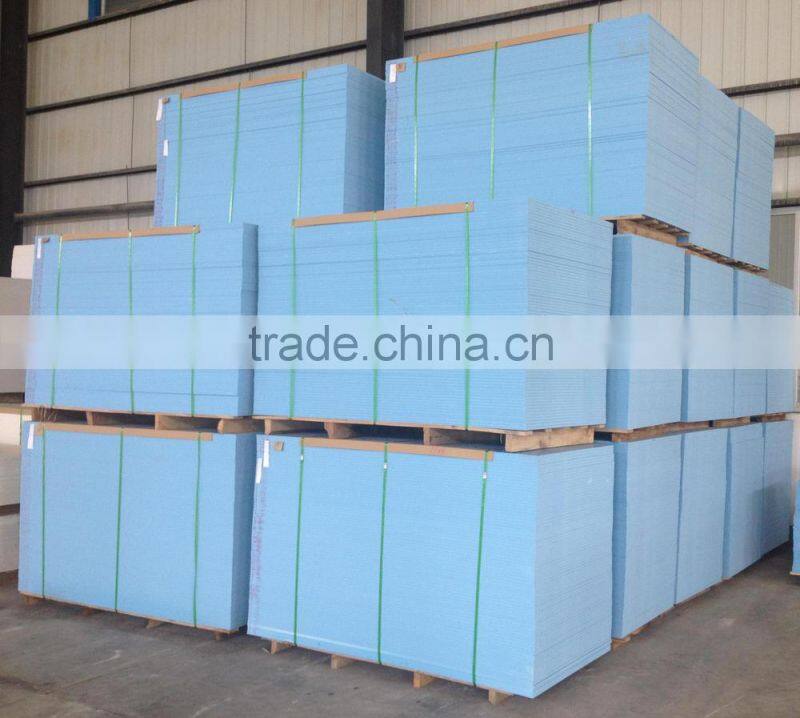

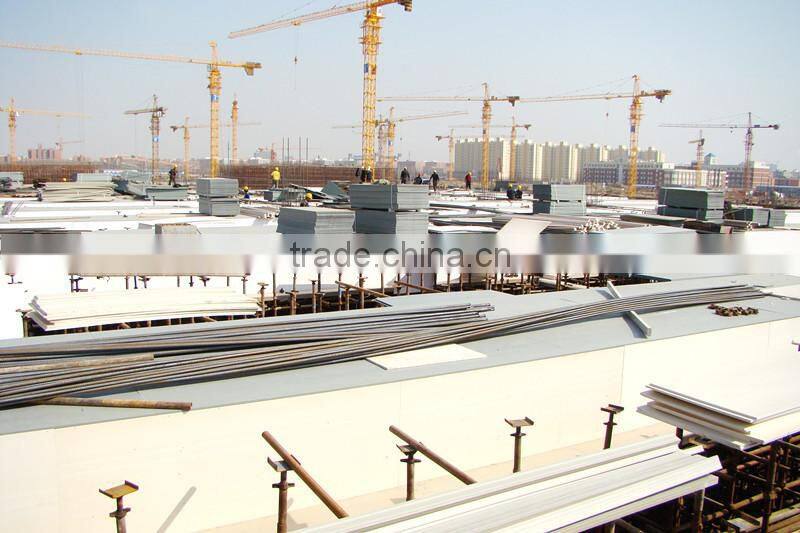

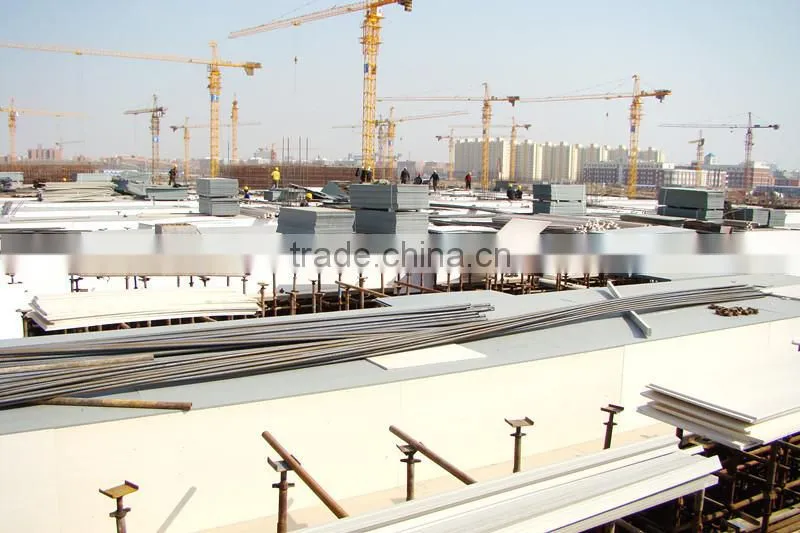

Concrete Formwork Photo Details:
