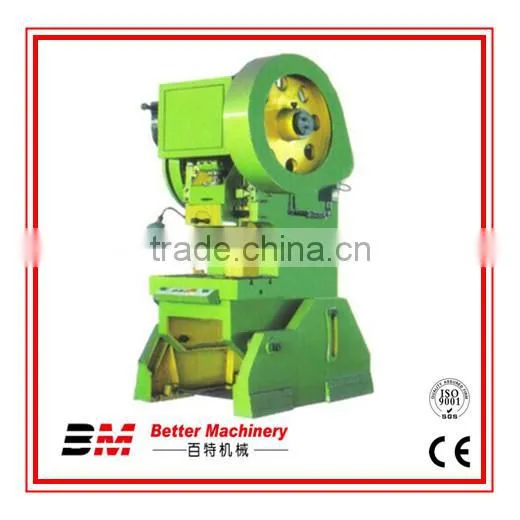

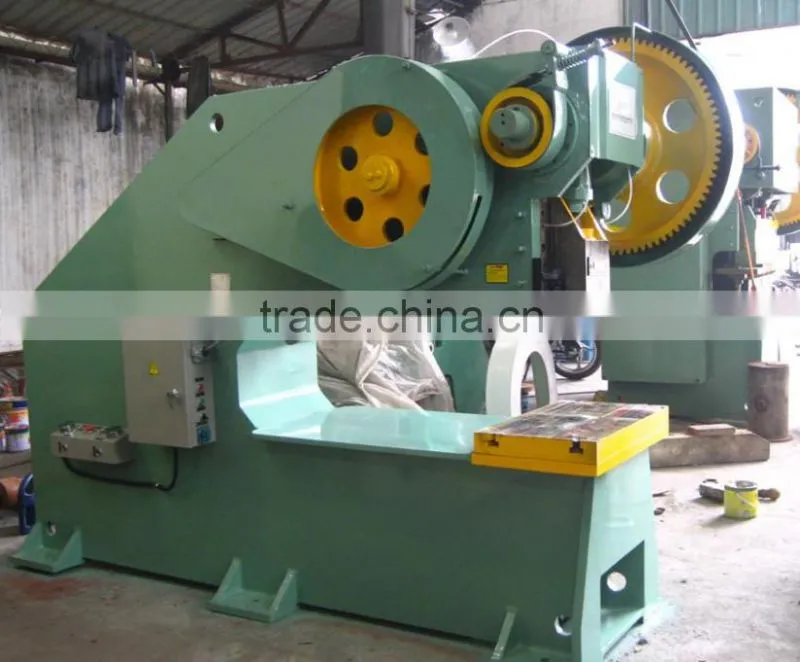

J21S 25 inclinable hydraulic punch machine
J21S 25 inclinable hydraulic punch machine performance:
u C- frame provides maximum rigidity and minimum deflection for accurate parts and long tool life .
u Steel-welded frame, high rigidity and less deformation Compact .
u Thick plates and large columns provide you with the stable platform you need for your demanding application.
u High accuracy, high efficiency, simple and convenient operation, good performance, favorable price and best service.
u Use double safety valve to ensure the accurate implementation of the clutch instruction.
u Optional photoelectric protector, feeder and other optional accessories are available for Composition nc step blunt press .
u Press-collapse block device, to ensure safety in press operation.
J21S 25 inclinable hydraulic punch machine parameter:
| NO | ITEMS | PARAMETER | UNIT |
| 1 | Nominal force | 250 | kn |
| 2 | Slide biock stroke | 70 | mm |
| 3 | Number of stroke | 70 | min |
| 4 | Max.die set height | 200 | mm |
| 5 | Die set height adjustment | 30 | mm |
| 6 | Distance from slide block centre to the frame | 710 | mm |
| 7 | Worktable dimensiones(WXL) | 400x600 | mm |
| 8 | Size of the handle hole(DiameterXdepth) | Φ40x60 | mm |
| 9 | Thickness of bolster | 50 | mm |
| 10 | Motor power | 3 | kw |
| 11 | Outine dimension(LXWXH) | 1620x800x1950 | mm |
If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
1.How about your J21S 25 inclinable hydraulic punch machine quality?
Better is a mature brand in CHINA,through our many years research in technology. our design including structure and detailed security and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are Better machines.
2. What’s your after-sale service?
Better provide oriented after-sales service including the oversea engineers training available and also international dealer center for any emergency guidance.We have established worldwide network to guarantee our timely response for your any demand no matter where are you.
We welcome engineers from your side to learn the technical design and normal maintenance here,this will help your easy in understanding and helpful if you need to be our dealer.
3. How to operate your J21S 25 inclinable hydraulic punch machine ?
Don’t worry,we have our company own CD/Manual to show you along with the machine.So you can learn this from the existing documents to deepen your knowledge and understanding. Anyhow there are another way is through internet video face to face for machine teaching, because of the high development in internet,the world has become smaller and you can easy catch us if any assistance needed.
