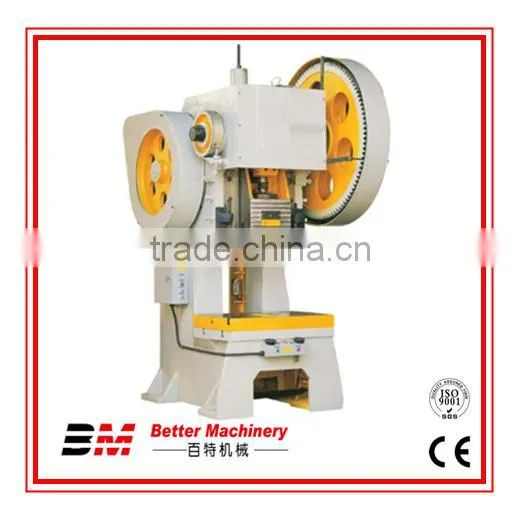

China Top selling J21S stamping power press machine
| J21S-16 stamping power press machine performance: |
Usage
1. This stamping press machine is suitable for various cold punching and pressing processing such as blanking, holes
punching, forming, bending, shallow drawing etc;
2. It is widely used in the industries such as the electronic elements, instruments,
hardware, toys, vehicles, machinery etc.
Structure
1. Casting machine fuselage with stable performances;
2. C-frame machine fuselage, open and tiltable with large working space easy for discharging the processed works and the waste materials;
3. Rigid clutch, simple structure;
4. Belt-type brake, easy for adjustment;
5. Collapsed-type safety fuse to protect the whole machine from being damaged due to overloading.
6. Horizontal crankshaft, easy for maintenance
Characteristics
1. The machine fuselage with higher strength and rigidity, economic and durable;
2. Simple structure, good versatility, easy operation and maintenance.
| J21S-16 stamping power press machine parameter: |
NO |
ITEM |
PARAMETER |
UNIT |
1 |
Nominal force |
160 |
kn |
2 |
Slide biock stroke |
60 |
mm |
3 |
Number of stroke |
80 |
min |
4 |
Max die set height |
170 |
mm |
5 |
Die set height adjustment |
30 |
mm |
6 |
Distance from slide block centre to the frame |
190 |
mm |
7 |
Worktable dimensiones(W*L) |
320*490 |
mm |
8 |
Size of the handle hole(Diameter*Depth) |
35*32 |
mm |
9 |
Thickness of bolster |
45 |
mm |
10 |
Power |
1.5 |
kw |
11 |
Outine dimension(L*W*H) |
1120*580*1700 |
mm |
1.How about your J21S-16 stamping power press machine quality?
Better is a mature brand in CHINA,through our many years research in technology. our design including structure and detailed security and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are Better machines.
2. What’s your after-sale service?
Better provide oriented after-sales service including the oversea engineers training available and also international dealer center for any emergency guidance.We have established worldwide network to guarantee our timely response for your any demand no matter where are you.
We welcome engineers from your side to learn the technical design and normal maintenance here,this will help your easy in understanding and helpful if you need to be our dealer.
3. How to operate your J21S-16 stamping power press machine?
Don’t worry,we have our company own CD/Manual to show you along with the machine.So you can learn this from the existing documents to deepen your knowledge and understanding. Anyhow there are another way is through internet video face to face for machine teaching, because of the high development in internet,the world has become smaller and you can easy catch us if any assistance needed .
