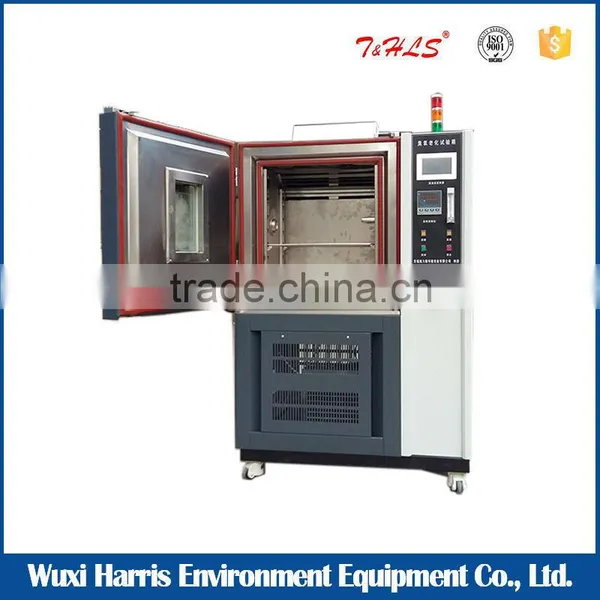

2016 New designer ninhydrin fingerprint display chamber
Ninhydrin fingerprint display is simulation under the condition of product in the humid climate environment (high temperature and high humidity conditions), let the turbulent indene three ketone solution on the surface of the specimen, can display the fingerprints, reach the role of evidence.
Nindydrin fingerprint display chamber | ||||||||||
Equipment specification |
THS-100ZX |
THS-150ZX |
THS-250ZX |
THS-500ZX |
THS-010ZX |
|||||
Workroom Dimensions (cm) |
50x40x50 |
50x50x60 |
60x60x70 |
80x70x90 |
100x100x100 |
|||||
Temperature Range |
40°C-150°C |
|||||||||
Fluctuation/Evenness |
±0.5°C/±2°C |
|||||||||
Humidity Range |
50%~98%RH |
|||||||||
Humidity Deviation |
-2%~-3% |
|||||||||
Temperature Rise Speed |
1.0°C~3.0°C/min |
|||||||||
Temperature Down Speed |
0.7°C~1.2°C/min |
|||||||||
Time needed for heating |
RT°C~150°C≤30min |
|||||||||
Time needed for cooling |
RT°C~-40°C≤60min |
|||||||||
The machine noise |
≤72 dB(A) |
|||||||||
Load on the largest |
≤20kg |
|||||||||
Equipment installed power |
~3.25KW |
~3.55KW |
~3.95KW |
~5.5KW |
~6.25KW |
|
||||
material |
The studio:# SUS 304 stainless steel |
The outer wall:Cold plate coating/#SUS304 |
|
|||||||
Wind Cycling Way |
Centrifugal fan-broadband type forced air circulation |
|
||||||||
Refrigeration Way |
Single stage compression refrigeration |
|
||||||||
Refrigerater |
French Tecumseh |
|
||||||||
Refrigerants |
R4O4A USA Dupont environmental protection refrigerant |
|
||||||||
Condensing Way |
Air-cooled or water-cooled |
|
||||||||
Heater |
Nickel chrome heating wire heater |
|
||||||||
Humidifier |
Semi-closed steam and wet |
|
||||||||
Water Suplying Way |
Automatic cycling water supply |
|
||||||||
Control instrument |
TEMI880 or OYO-8256P or HLS950 |
|
||||||||
Design criteria |
GB/T2423/5170/10586 JIS C60068 ASTM D4714 CNS3625/12565/12566 |
|
||||||||
Standard Accessories |
1 Observe window(double-deck cavity toughened glass), 1 50mm test hole in the left, 1 PL inner chamber lamp, 2 The sample is put aside frame 1 bag of wet and dry bulb, 3 fuses, 1 power line. |
|
||||||||
Safety device |
Non- fuse-switch(compressor overload, refrigerant high low voltage, over-humidity and temperature protection, Protection switch,fuse stoppage warning system |
|
||||||||
