ZK5040B Deep hole drilling machine
ZK5040B Deep hole drilling machine Performance:
1. Uses in the high speed hot extrusion,drilling,enlarging,reaming and threading;
2. The feed for spindle transmission system uses the high accuracy ball bearing guide screw,the localization is precise,the precision stability is good,specially using in the blind hole decides the deep precision high work piece;
3. Interlock devices are adopted for the workbench elecation locking,which is convenient and effective;
4. The feeding is realized by means of CNC system,capable of realizing a cycle comprising fast forward→ fine forware→ fast backward(chip removal),the efficiency prominently improved. In addition,an orders are designed specifically for drilling operation,which simplifies the operation and improves the effectiveness;
5. The elevation of the workbench is conducted by an electric-driven mechanism.There are two optional means of elevation:manual and automatic. Besides,the workbench can be moved and rotate in various directions,providing the maximum opportunities to process the parts of different industries.
ZK5040B Deep hole drilling machine Parameter
MODEL |
ZK5040B |
|
|
CAPACITY |
|
Drilling capacity(max.) |
Ø40mm |
ACCURACY |
|
Repeating accuracy |
0.015mm |
Positioning accuracy |
0.025mm |
SPINDLE |
|
Spindle taper |
MT4 |
Spindle speed |
67-1780rpm |
Spindle speed steps |
12 |
Distance spindle-column |
350mm |
SPINDLE HOLEING FIXTURE |
|
Z-axis travel |
200mm |
Rate of feed/Torque motor Z-axis |
0-5000mm/min |
COLUMN |
|
Column diameter |
Ø156mm |
TABLE |
|
Middle Table speed |
355mm/min |
Table (L×W) |
520×400mm |
Table load |
100kg |
T-slot |
14mm/2 |
Distance spindle-middle table(max.) |
515mm |
Distance spindle-base table(max.) |
1130mm |
ELECTRIC SUPPLY |
|
Motor |
2.2/2.8kW |
Motor coolant pump |
40W |
DIMENSION AND WEIGHT |
|
Overall dimension (L×W×H) |
1060×600×2290mm |
Packing size (L×W×H) |
800×1240×2150mm |
Weight |
700kg |

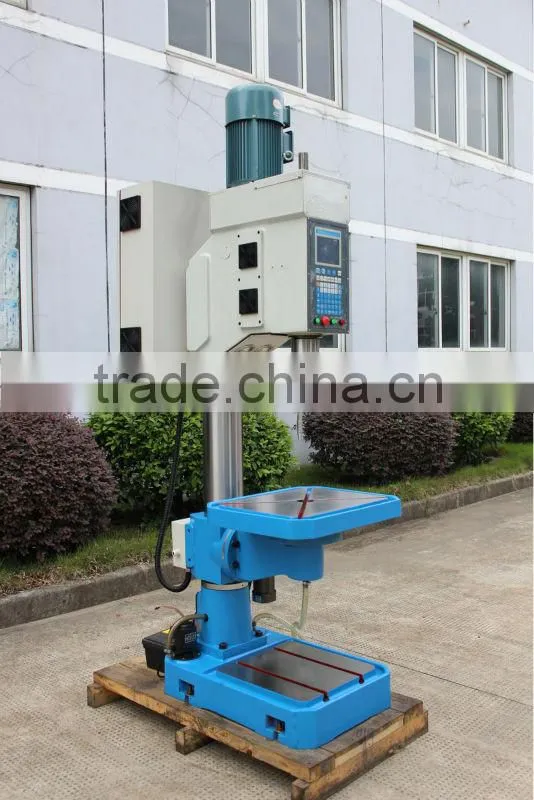

1.The front view:

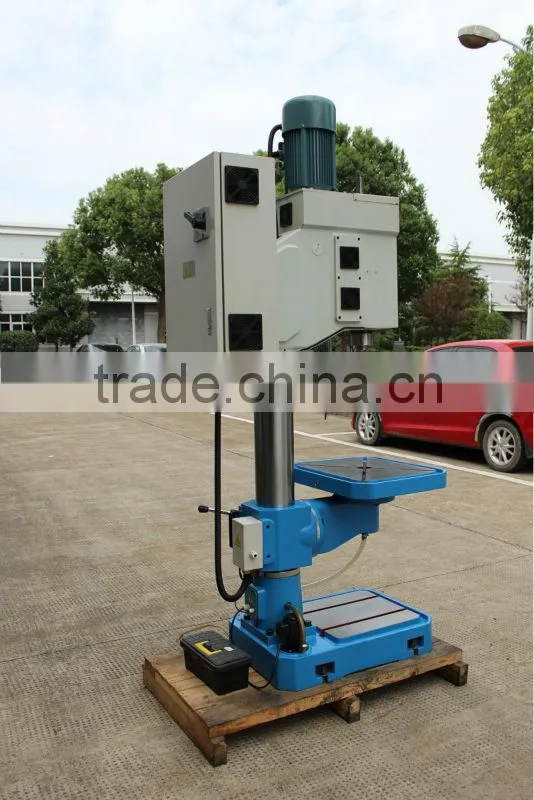

2. The side view:

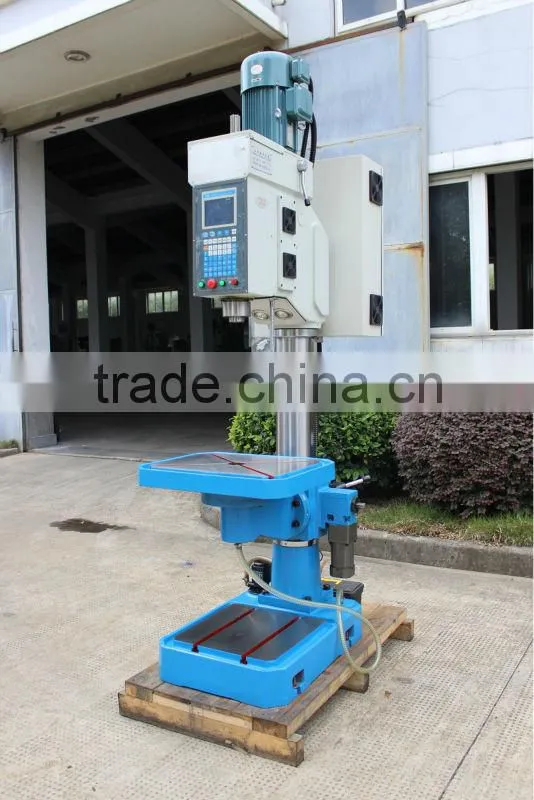

3. The back view:

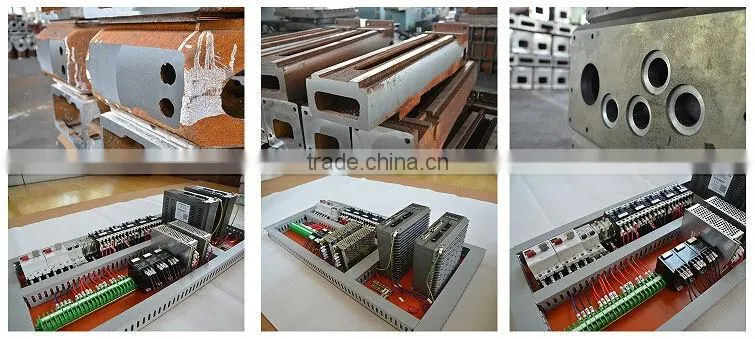

Production details photos:
1.How about your Deep hole drilling machine quality?
Better is a mature brand in CHINA,through our many years research in technology. our design including structure and detailed security and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are Better machines.
2. What’s your after-sale service?
Better provide oriented after-sales service including the oversea engineers training available and also international dealer center for any emergency guidance.We have established worldwide network to guarantee our timely response for your any demand no matter where are you.
We welcome engineers from your side to learn the technical design and normal maintenance here,this will help your easy in understanding and helpful if you need to be our dealer.
3. How to operate your Deep hole drilling machine?
Don’t worry,we have our company own CD/Manual to show you along with the machine.So you can learn this from the existing documents to deepen your knowledge and understanding. Anyhow there are another way is through internet video face to face for machine teaching, because of the high development in internet,the world has become smaller and you can easy catch us if any assistance needed .
