Specifications
Double Action Hydraulic Drawing Press1.good rigidity
2.high quality
3.low price

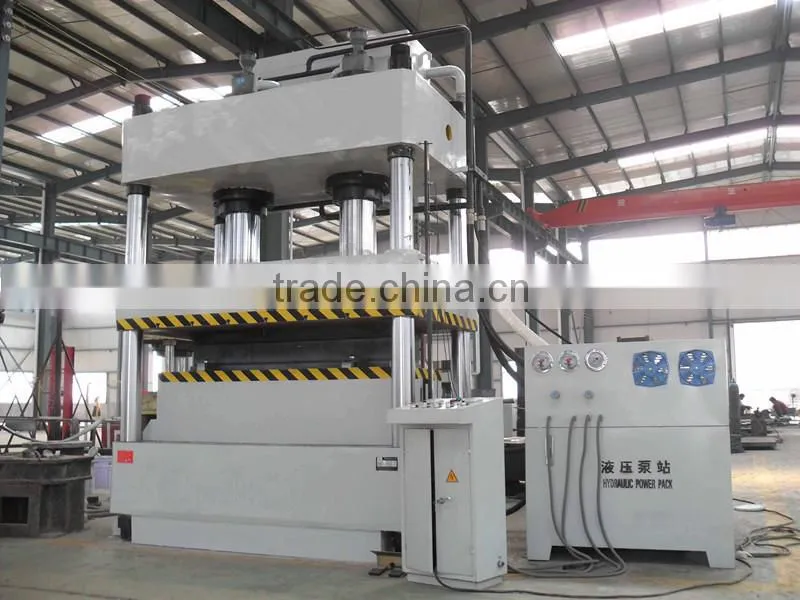

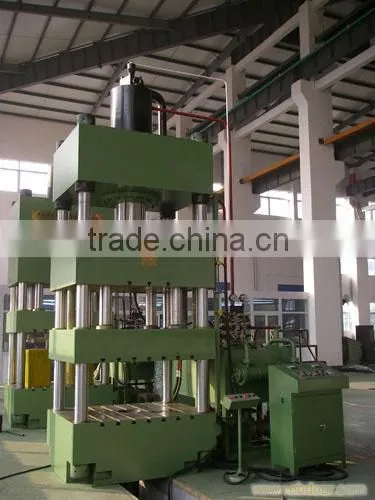

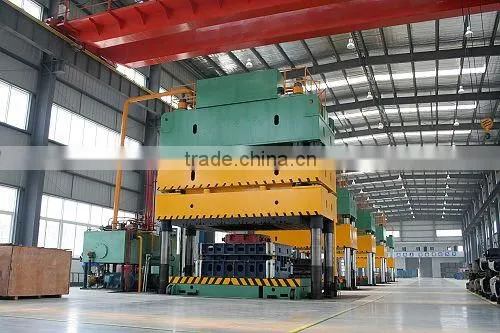

Double Action Hydraulic Drawing Press
Y28 series Double Action Hydraulic Drawing Press performance:
1.The hydraulic press of thtis series is the double -movement hydraulic prss for sheet meal drawing.
It is particularly fit drawing, forming, flanging,bending and stamping of sheet metals for making parts and components.It is also fit for stamping and pressing processes
2.The hydraulic system has a two-way cartridge inserted valve, the electrical system has PLC for control. Thus, the machine can be conveniently operated.
3. The hydraulic press is characterized with high speed under no-load condition, high efficiency in energy utilization and low power consumption with the blank holder pressure and drawing force adjustable.It is an ideal equipment for forming of sheet metal.

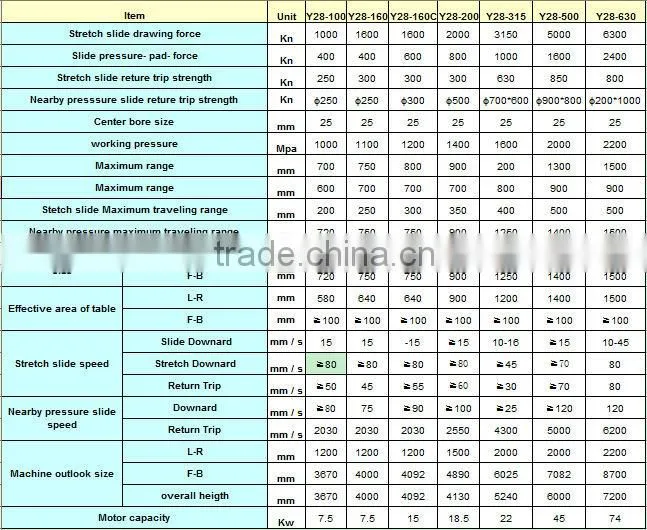

Y28 series Double Action Hydraulic Drawing Press parameter:
If you have any other requirements for the size, pls do not hesitate to contact us, or you can advise us your ideas or thoughts for the machine, we can kindly design for you and communicate with you for the details.
1.How about your Y28 series Double Action Hydraulic Drawing Press quality?
Better is a mature brand in CHINA,through our many years research in technology. our design including structure and detailed security and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are Better machines.
2. What’s your after-sale service?
Better provide oriented after-sales service including the oversea engineers training available and also international dealer center for any emergency guidance.We have established worldwide network to guarantee our timely response for your any demand no matter where are you.
We welcome engineers from your side to learn the technical design and normal maintenance here,this will help your easy in understanding and helpful if you need to be our dealer.
3. How to operate your Y28 series Double Action Hydraulic Drawing Press ?
Don’t worry,we have our company own CD/Manual to show you along with the machine.So you can learn this from the existing documents to deepen your knowledge and understanding. Anyhow there are another way is through internet video face to face for machine teaching, because of the high development in internet,the world has become smaller and you can easy catch us if any assistance needed .
