DIW 160EL hydraulic ironworker lathe
DIW 160EL hydraulic ironworker lathe performance:
1. High Quality Components & System
hydraulic ironworker lathe adopt Schneider Electric System, Japan VALQUA seal, Japan Omron proximity switch, and Italy ATOS hydraulic system, in order to provide you with high performance.
2. Cost Effective
hydraulic ironworker lathe with very good price/performance ratio
Various Hydraulic Punching Machine model options to meet your different requirement.
3. Stable Performance & Reliable Quality
hydraulic ironworker lathe use hydraulic transmission. Light weight, low noise, reliable performance.
4. Simple Operation
The operation of the hydraulic ironworker lathe is controlled by foot switch.
DIW 160EL hydraulic ironworker lathe paramenter:
| NO | ITEMS | PARAMETER | UNIT |
| 1 | Punching pressure | 160 | ton |
| 2 | Max.shearing thickness of steel plates | 30 | mm |
| 3 | Strength of steel plates | ≤450 | n/mm² |
| 4 | Angle of shearing | 8 | ° |
| 5 | Shearing sizes of one stroke(WXH) |
20x600 30x355 |
mm |
| 6 | Ram stroke | 80 | mm |
| 7 | Number of stroke | 8-22 | times/min |
| 8 | Depth pf throat | 600 | mm |
| 9 | Punching thickness | 28 | mm |
| 10 | Max.diameter of punching | 38 | mm |
| 11 | Round steel | 65 | mm |
| 12 | Square steel | 55x55 | mm |
| 13 | 90° shearing of equal-angle steel | 180x180x16 | mm |
| 14 | 45° shearing of equal-angle steel | 80x80x10 | mm |
| 15 | H-beam | 175x175 | mm |
| 16 | C-channel | 280x86x11.5 | mm |
| 17 | I-beam | 280x124x10.5 | mm |
| 18 | Main motor power | 11/15 | kw |
| 19 | Overall dimension(LXWXH) | 2680x1060(1360)x2380 | mm |
If you have any other requirements for the size,please do not hesitate to contact us,or you can tell us your requirements for the machine,we can kindly design it for you and communicate with you for the details.

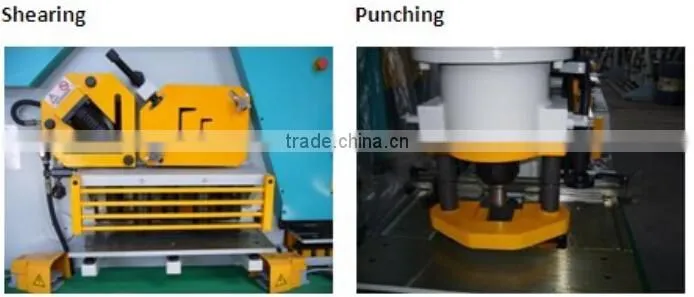

The details of DIW 160EL hydraulic ironworker lathe:
