Small Medical Bottle Filling Machine

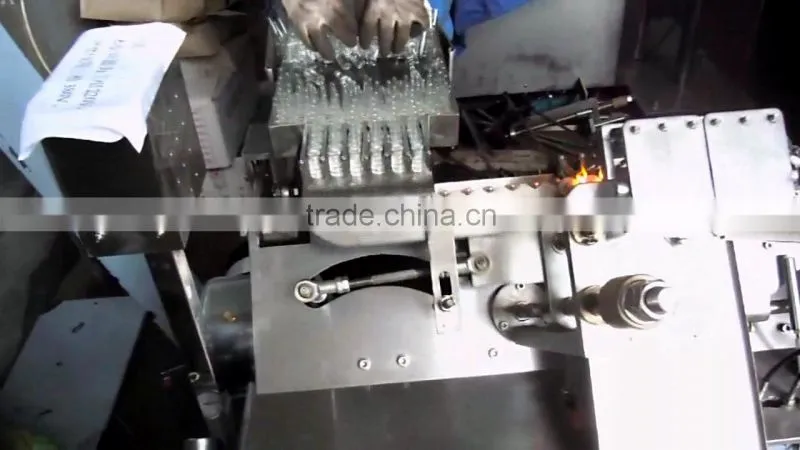

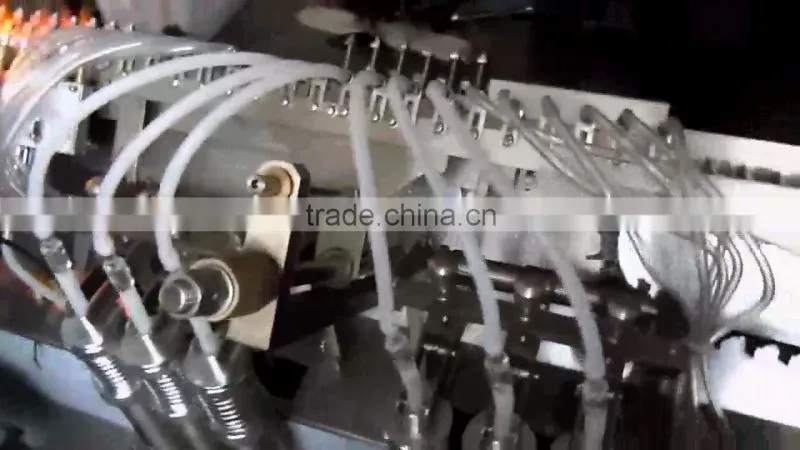

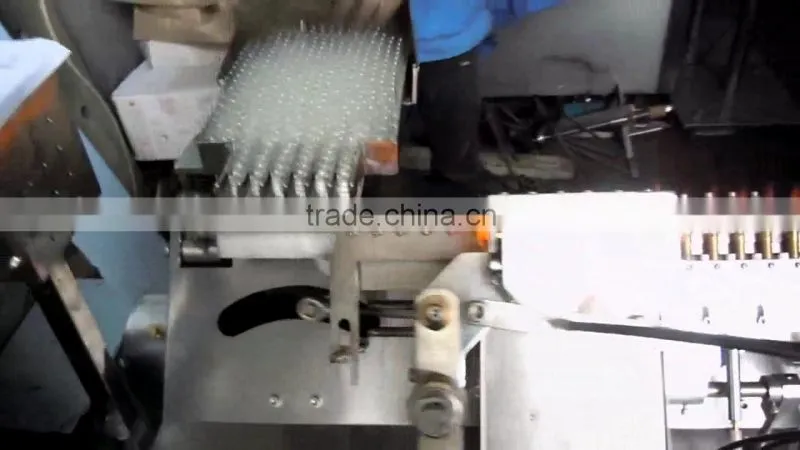

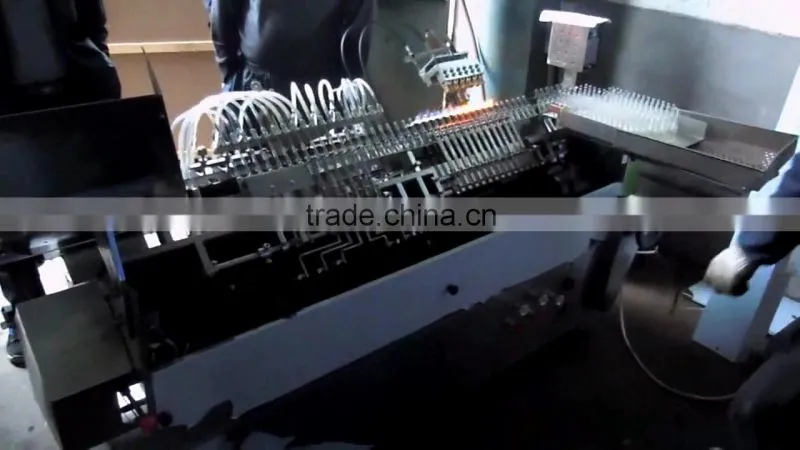

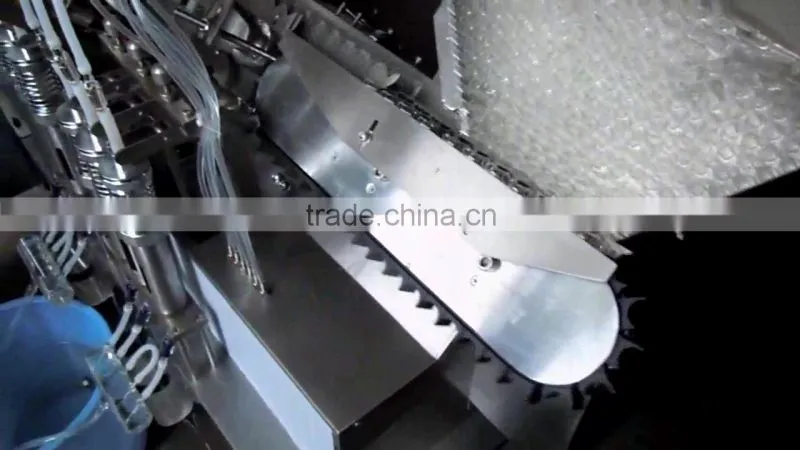

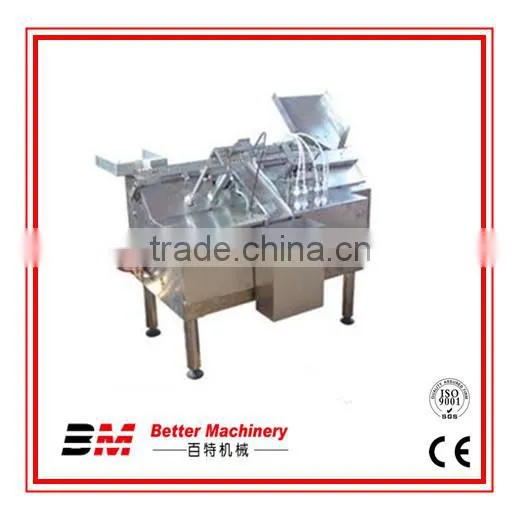

Small Medical Bottle Filling and Sealing Machine
Introduction:
Filling and sealing machine for ampoule Model BM-6 is equipment specifilized in filling and sealing 5ml to 10ml,10-20ml bottle in pharmaceutical works.This machine is equipped with automatic stop-filling device which can make filling case when there is no ampoule into filling station.

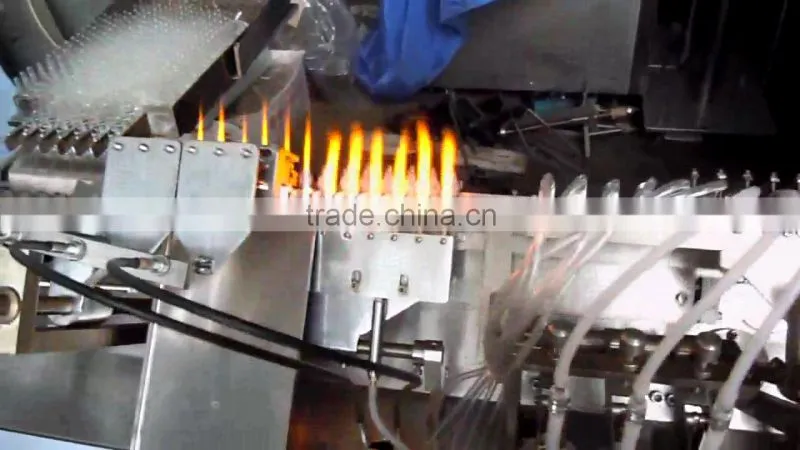

Suitable for pharmaceutical ampoule filling and sealing drawing, the local station for the 6 bottles for one stepper drive system, each with 6 bottles as a group, were sent to the various processes point to complete the delivery bottles, before nitrogen, drench, after nitrogen, preheated, drawing sealing processes.
Using hydrogen generator, the interface is fully matched. Drive rack stainless steel, pressure bottle tied tight fit.
Small Medical Bottle Filling and Sealing Machine Technical parameter
Voltage |
380V,50/60HZ(cutomized by different country) |
Power |
0.8KW |
Filling Nozzles |
6 Nozzles |
Applicable volume |
5ml-10ml(cc),15-20ml |
Yield capcacity |
8000-12000pcs/hour |
Dimension |
1650*900*1500mm |
Weight |
350kg |
Small Medical Bottle Filling and Sealing Machine Packing List
- Glass 8 holes 2 pcs
- piston 18 pcs
- drencher 4 pcs
- chain link of sending bottles 10 pcs
- discharging baffle 7 pcs
- needles 6 pcs
- 5-20ml Ampoule filling & sealing machine 1 set
1.How about your Small Medical Bottle Filling and Sealing Machine quality?
Better is a mature brand in CHINA,through our many years research in technology. our design including structure and detailed security and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are Better machines.
2. What’s your after-sale service?
Better provide oriented after-sales service including the oversea engineers training available and also international dealer center for any emergency guidance.We have established worldwide network to guarantee our timely response for your any demand no matter where are you.
We welcome engineers from your side to learn the technical design and normal maintenance here,this will help your easy in understanding and helpful if you need to be our dealer.
3. How to operate your Small Medical Bottle Filling and Sealing Machine ?
Don’t worry,we have our company own CD/Manual to show you along with the machine.So you can learn this from the existing documents to deepen your knowledge and understanding. Anyhow there are another way is through internet video face to face for machine teaching, because of the high development in internet,the world has become smaller and you can easy catch us if any assistance needed .
