Specifications
High Speed Ampoule Printing Machine1. For volume 1-20ml ampoules
2. High speed
3. Economic price and good quality

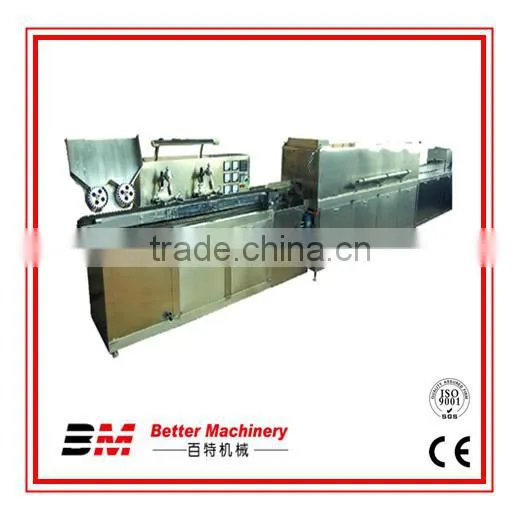

High Speed Ampoule Printing Machine
Performance:
This machine applies the high-precision orientation screen board print. Control system applies the programmed controller. Agglomeration subsection control temperature.
The machine can auto print on the 1ml, 2ml, 5ml, 10ml and 20ml and non-state standard ampoule color print and print word. It can meet the printing requirements for the home and abroad customers.
The machine have high automatization, compact structure and simple operation. It is an ideal equipment for the ampoule process in the pharmaceutical factory and medical plastic factory.
Characteristics:
1. The full production capacity applies the programmed controller, high automatization, stable and reliable. When there are no ampoules under the screen board, the knife can auto uplift, then prevent the use life of the screen board.
2. Apply the high-precision orientation silk screen board print. Silk screen board come and back once can complete two ampoules print. It owns high-efficiency and good coherence.
3. Agglomeration applies the electric heat and liquid gas heat. During the agglomeration, the temperature is subsection auto control. There isnt twice labor, so prevent the ampoule quality.
Main Technical Specifications:
Model |
BMG-I |
BMG-II |
Ampoule Specification (ml) |
1ml, 2ml, 5ml, 10ml, 20ml |
1ml, 2ml, 5ml, 10ml, 20ml |
Capacity (C) |
3600/h |
7500/h |
Motor Power (kw) |
0.55kw 380v |
0.75kw 380v |
Overall size (mm) |
6000*600*1300 |
7000*600*1300 |
Weight (kg) |
400 |
400 |
Oven Power(kw) |
18 |
20 |
Photos:
1.How about your High Speed Ampoule Printing Machine quality?
Better is a mature brand in CHINA,through our many years research in technology. our design including structure and detailed security and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are Better machines.
2. What’s your after-sale service?
Better provide oriented after-sales service including the oversea engineers training available and also international dealer center for any emergency guidance.We have established worldwide network to guarantee our timely response for your any demand no matter where are you.
We welcome engineers from your side to learn the technical design and normal maintenance here,this will help your easy in understanding and helpful if you need to be our dealer.
3. How to operate your High Speed Ampoule Printing Machine?
Don’t worry,we have our company own CD/Manual to show you along with the machine.So you can learn this from the existing documents to deepen your knowledge and understanding. Anyhow there are another way is through internet video face to face for machine teaching, because of the high development in internet,the world has become smaller and you can easy catch us if any assistance needed .
