Leader high quality fruit juice refiner for litchi
Let’s start the journey of exploring our product
Leader high quality fruit juice refiner for litchi
Introduction
Leader high quality fruit juice refiner for litchi is mainly used to separate the nucleus and little fruit
skins from fresh fruit which have been cleaned,disinfected and peeled off the skins,it is also
used to refine the fruit pulp and fruit juice.Then the fruit pulp is conveyed to the process of next.
Working principle

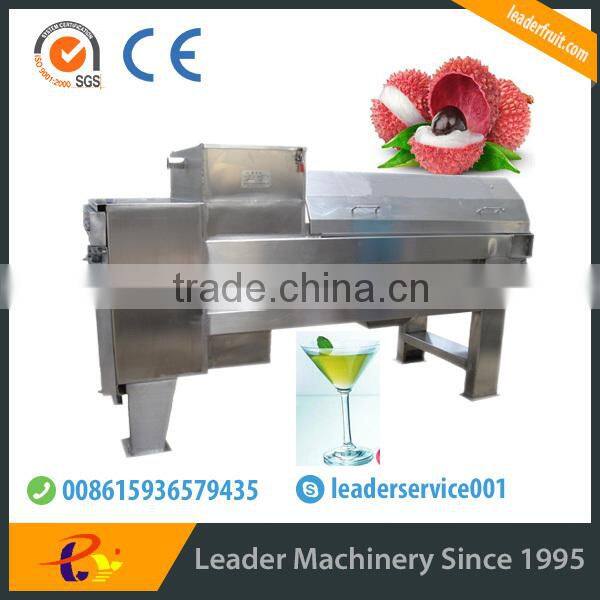

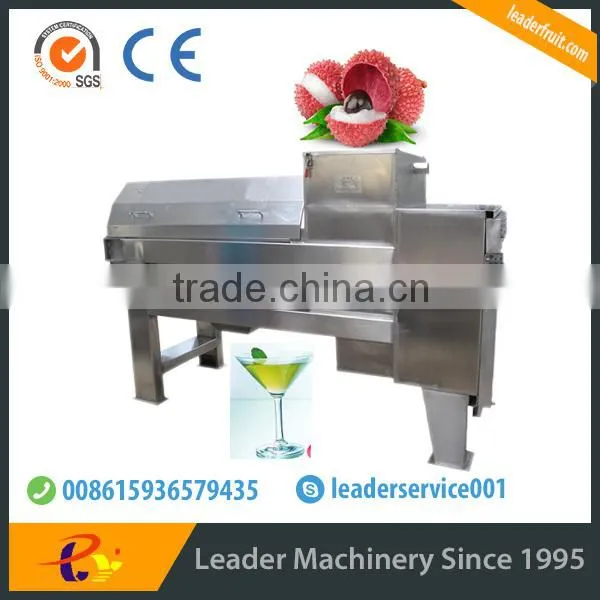

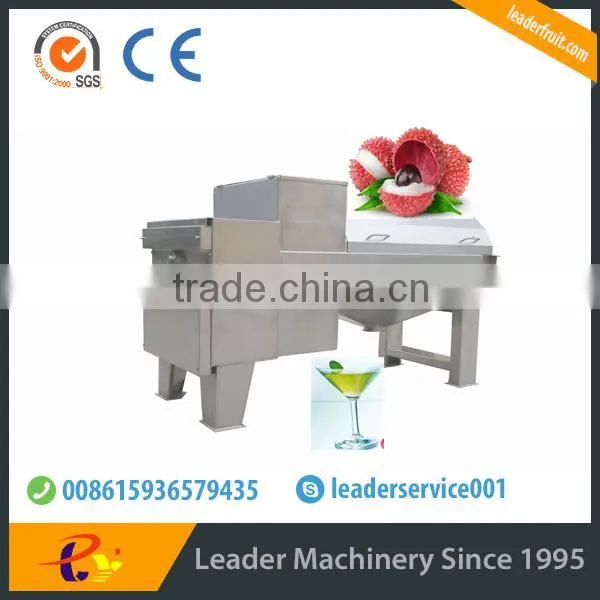

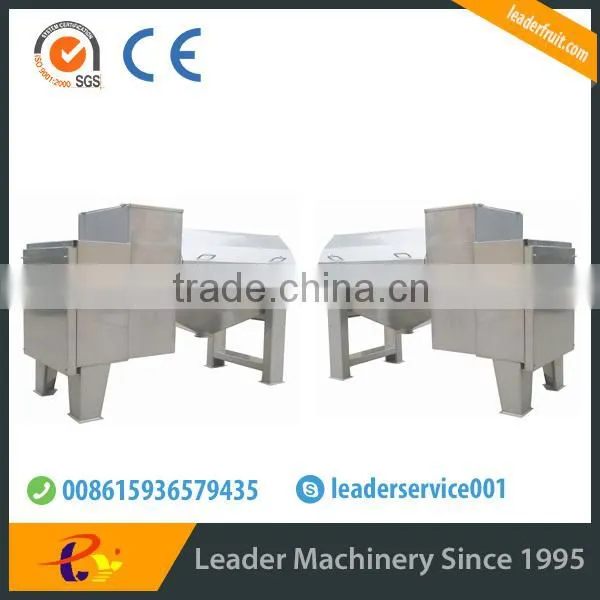

Leader high quality fruit juice refiner for litchi mainly consists of hopper,rotary screen,disengaging
shaft,gearing,rack and shield.Materials get into separation region from hopper.Then at the function
of disengaging shaft with high rotary speed,the nucleus and little skins of materials are separated
from pulp.The skins and nucleus are expelled from the tail of the machine.The pulp fall into the screw
pump below and are conveyed to the process of next.
Applied fields
Leader high quality fruit juice refiner for litchi is mainly used to further process fruit juice
for fruit juice and fruit wine.
Feature
1.The production is large.
2.This machine is easy to use.
3.The material of squeegee have two kinds,one is polyurethane (PU)and the other is food rubber,according to the fruit and application method.
4.The complete machine is made of 304 stainless steel apart from the conveyor,it confirms to the manufacturing standard of food.
Technical parameters
|
LDR2 |
capacity |
2000-5000 |
Kg/h |
Rotary screen diameter |
406 |
mm |
|
Motor power |
7.5 |
kw |
|
Speed governing method of the motor |
Frequency control |
|
|
Rotary screen power |
1.1 |
kw |
|
Screw pump power |
3 |
kw |
|
Overall dimensions |
2105*730*1050 |
mm |
|
Weight |
About 800 |
kg |
|
|
LDR5 |
capacity |
5000-8000 |
Kg/h |
Rotary screen diameter |
630 |
mm |
|
Motor power |
11 |
kw |
|
Speed governing method of the motor |
Frequency control |
|
|
Rotary screen power |
2.2 |
kw |
|
Screw pump power |
5.5 |
kw |
|
Overall dimensions |
2820*960*1530 |
mm |
|
Weight |
About 1150 |
kg |

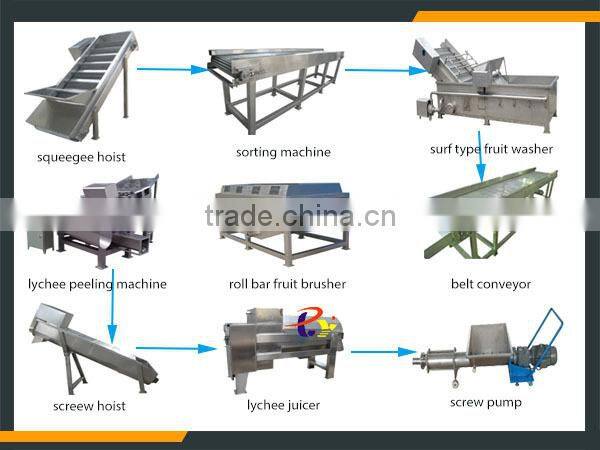

Fruit juice refiner production line
Patent Certificate
Packaging
For export, we usually use different packs for different products according to its size.
For small size, crate case is adopted.
For big size and heavy good, fumigation-free wooden case or pallet is offered for 20’ or 40’ container or bulk shipment.
Five years export experience guarantees you to get your goods safely and quickly.
Do you have questions?Pl refer to our FAQ.
1.Q: How can I get a suitable model?
A:Pl tell me your fruit to be processed,its variety,its min,max and regular diameter,your requirement about capacity.Fruit photos are much appreciated.Then i will select suitable model for you.
2.Q:What is your machine material?
A:Our machine material are food grade stainless steel for all body.
3.Q:Could you pl kindly design a workshop layout for line?
A: Yes,according to the length and width of your worksite ,our engineer can design a layout for you.
4.Q:How could you demonstrate the effect of your machine?
A: We can offer video and you are welcome at any time to visit us for products and our production capacity.
For more, please contact us!
