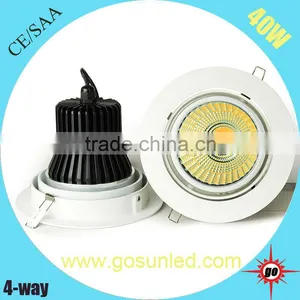

Independently Design Recessed Dimmable 40w 4-way COB LED Ceiling Downlight
Specifications
40W LED COB Downlight1.Epistar / Cree chips.
2.Ceramic PCB.
3.Driver:Lifud / Meanwell.
4.Certificate:CE & RoHS.
Detailed Product Description
2.High output: 80-90lm/w.
3.New Design, CRI > 82.
4.MeanWell Driver is possible.
Products Features:
(1)LED Brand: Epistar / Cree.
(2)high output: 3300-3600lm.
(3)Ceramic material PCB.
(4)Beam Angle:30 or 60 degree.
(5)Size: φ198*H170mm φ170(cutting hole).
(6)Available Color:Pure &Natural &Warm White.
(7)Frequency Range:50-60Hz.
(8)Warranty:3 years.
(9)Life span: 50,000+hrs.
(10)Certificate: CE, ROHS, SASO,SAA.
(11)After sale service: Free replacement.
(12)Dimmable:Triac or dali is optional.

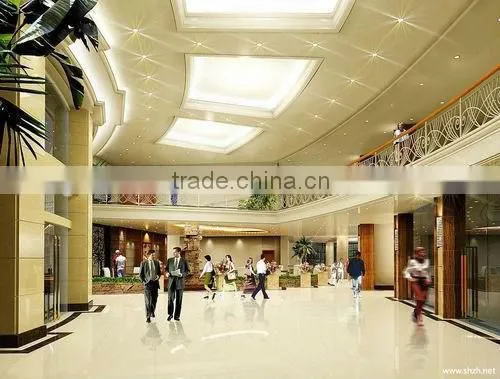

Application:
(1)Mall Lighting.
(2)Hotel Lighting.
(3)Exhibition Lighting.
(4)Public Lighting.
Data Sheet:
| Part No. | Color | Power | Voltage | CCT | Lumen | Size |
| GS-CL-COB-40W-B-PW | Pure White | 40W | 100-240vAC | 5900K-6300K | 3500-3600lm | φ198*H170mm |
| GS-CL-COB-40W-B-NW | Natural White | 40W | 100-240vAC | 4000K-4500K | 3400-3500lm | φ198*H170mm |
| GS-CL-COB-40W-B-WW | Warm White | 40W | 100-240vAC | 2900K-3300K | 3300-3400lm | φ198*H170mm |
Test report: ( Note: The beam angle is only about 1/2 output of the all illuminated. )
More Pictures:
