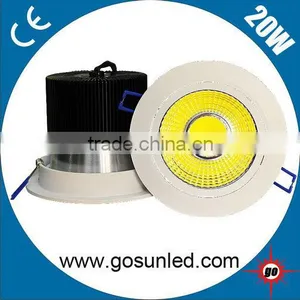

Dimmable 20w COB LED Downlights 2700k-6500k Australian Standard With Rohs&CE Certificates and 3 Year Warranty

Dimmable 20w COB LED Downlights 2700k-6500k Australian Standard With Rohs&CE Certificates and 3 Year Warranty thumbnail-1
Dimmable 20w COB LED Downlights 2700k-6500k Australian Standard With Rohs&CE Certificates and 3 Year Warranty photo-1
US$ 26.9 - 37.9 MOQ: 1 Piece
Key Specifications
Get Latest Price
LED Light Source:
Epistar chip COB LED
Warranty(Years):
3
Input Voltage(V):
100-277
Contact Supplier Request Quote Chat Now
Shenzhen Gosun LED Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shen Zhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source Epistar chip COB LED
Warranty(Years) 3
Input Voltage(V) 100-277
Lamp Power(W) 22
Lamp Luminous Flux(lm) 2200-2700
Lamp Luminous Efficiency(lm/w) 120
Color Temperature(CCT) Pure White
Working Temperature(℃) -45, 45
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum
IP Rating IP54
Certification CE, Energy Star, FCC, SAA, SASO, UL
Model Number GS-SCL-COB-30W-NW
Place of Origin Guangdong, China
Brand Name GOSUN

Specifications

Light Source: LED Item Type: Downlights LED Light Source: Epistar chip COB LED Lamp Luminous Flux(lm): 3300-3600 Lamp Luminous

Specifications



Item Type: Downlights LED Light Source: COB LED Lamp Luminous Flux(lm):3600



Specifications:

1.Output:2200-2700lm.
2.CRI: 82.
3.Beam Angle: 30, 60.
4.Chip brand:  Epistar 10*23

5.Certificate: CE/RoHS/SAS0/SAA

6.Driver:Lifud(or MEANWELL)

CE,RoHS,FCC,ERP Asia, EU, US standard
GOSUN is professional in produce indoor COB LED Commercial Lighting which include 10-60W COB led track light, 6-40W COB led downlight, 3-15W COB led spotlight.



20W High power dimmmable COB LED Downlights:





Features:

High light efficiency, high brightness, high color rendering, low light decay, uniform color, no lightspot.





Application:



Products are widely used as indoor illumination lighting in specialty stores, shopping malls, art gallery, showroom, offices, factories, supermarkets, the exhibitions, etc.







Parameters:



Material

Aluminum



Color temperature

Warm white: 2700K / 3500K

Natural white:4000-4500K

Cool white:5500-6500K

Power of LED

20W

LED Chip (quantity)

Epistar (320pcs)

System Consumption

22W

Input voltage

AC100-277V

Beam angle

30 / 60degrees

Power efficiency

>87%

Led Luminous Efficiency

120LM/W

LED luminous efficiency

3300-3600LM

Color Rendering Index

>82

Light design

COB LED + Reflective cup secondary light distribution

Lifetime

>50,000hrs

Color of housing

White, Black, Silver

Optical data

Test reports, IES files

Certificate of lamp

CE, RoHS, FCC, ERP, IES

Certificate of driver

CE, RoHS, UL, SAA, TUV, CQC, FCC





Product Datasheet:



Part No.

Color

CCT

Output

GS-SCL-COB-20W-WW

warm white

2700-3500k

2200-2400lm

GS-SCL-COB-20W-NW

natural white

3500-4500k

2400-2600lm

GS-SCL-COB-20W-CW

cool white

5500-6500k

2600-2700lm

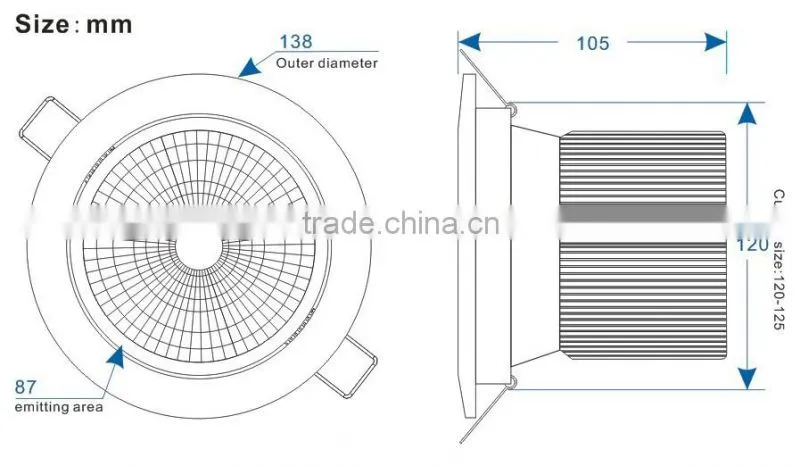

Dimension:

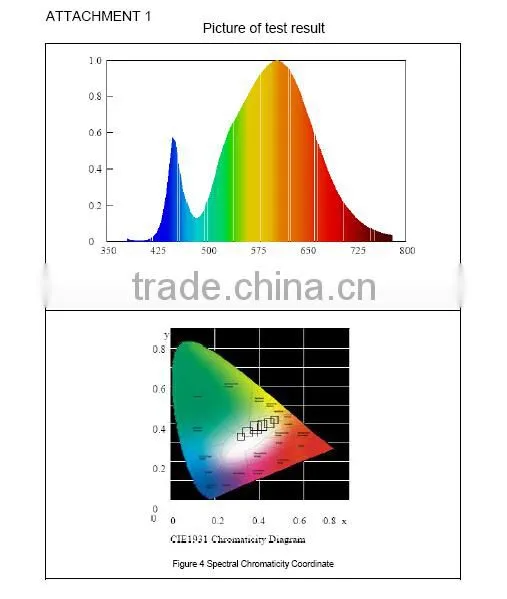

 IES Test:(please contact us to get the IES file ):

Dimmable 20w COB LED downlights 2700k-6500k Australian Standard with Rohs&CE certificates and 3 year warrantyDimmable 20w COB LED downlights 2700k-6500k Australian Standard with Rohs&CE certificates and 3 year warranty





GOSUN packing:



Dimension:







 Dimmable 20w COB LED downlights 2700k-6500k Australian Standard with Rohs&CE certificates and 3 year warranty

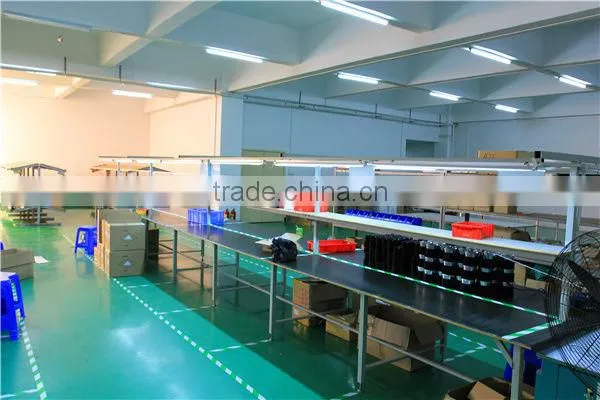

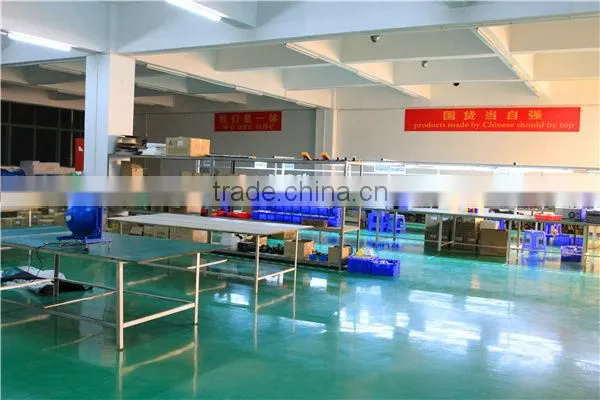

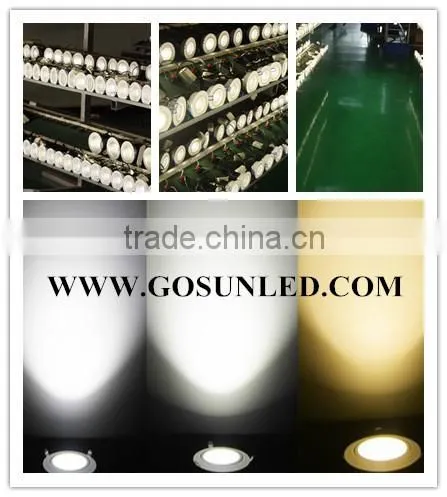

GOSUN Workshop's Description:





GOSUN Aging room:

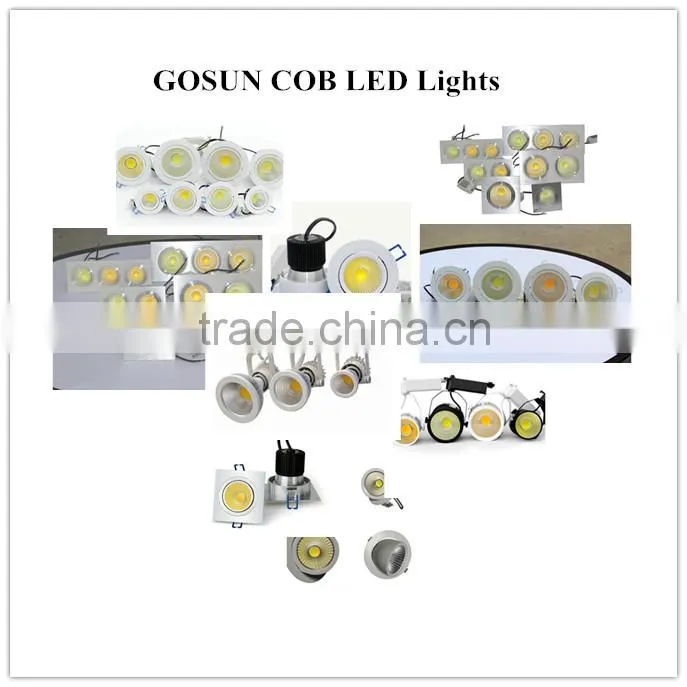

GOSUN More products:

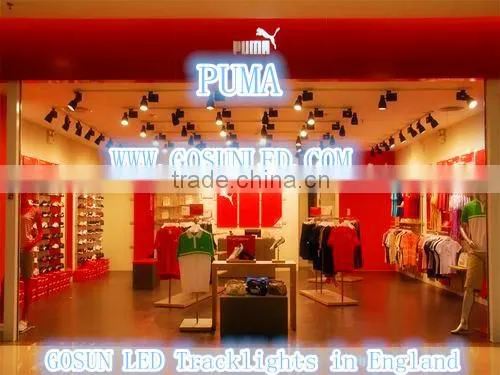

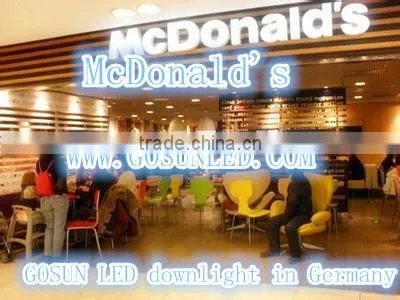

GOSUN Represetative Projects

PUMA, Landrover, McDONLD'S,



GOSUN'Certifacates

 CE, ROHS, SASO, TUV, ERP test report for the whole lamp.

UL, SAA, TUV, CE, ROHS for the driver.





GOSUN Quality Control

1. 100% testing before aging .

2. Aging for no less than 24hours, and the switch is off-on aucomatically every 2minutesduring

aging procedure.

3. 100% testing by safe tester (with 3700V high voltage) before packing.

4. Except normal CE, RoHS, FCC certificates for the finished products, we can provide IES files

and ERP reports.



GOSUN Services and terms

Warranty: 3years , free replacement.

Lead time: 7-12 days.

Payment: TT, Western Union, Paypal, Money Gram.

Transportation: DHL, UPS, FedEx, Air, Sea, etc.





GOSUN focus on COB LED Commercial Lighting since from 2010, and we make

COB led lamps only,  we belive high quality & high efficiency based on profession.

GOSUN wish our lamps would light up your life.







         WWW.GOSUNLED.COM
