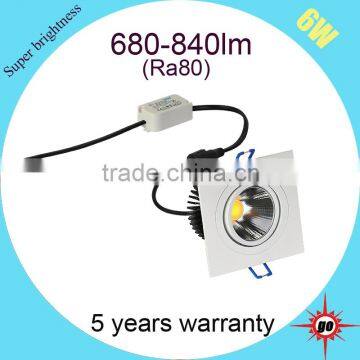

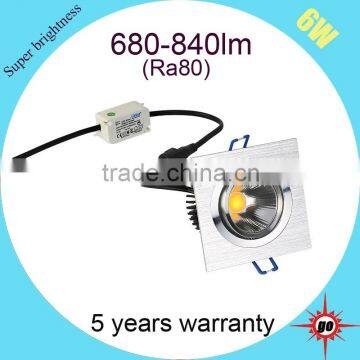

2016 New Fashionable Square LED Downlight 6W

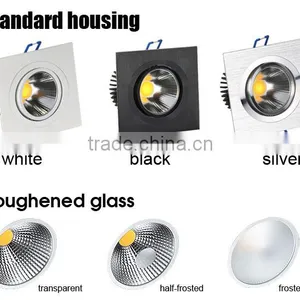

2016 New Fashionable Square LED Downlight 6W thumbnail-1
2016 New Fashionable Square LED Downlight 6W thumbnail-2
2016 New Fashionable Square LED Downlight 6W thumbnail-3
2016 New Fashionable Square LED Downlight 6W thumbnail-4
2016 New Fashionable Square LED Downlight 6W thumbnail-5
2016 New Fashionable Square LED Downlight 6W thumbnail-6

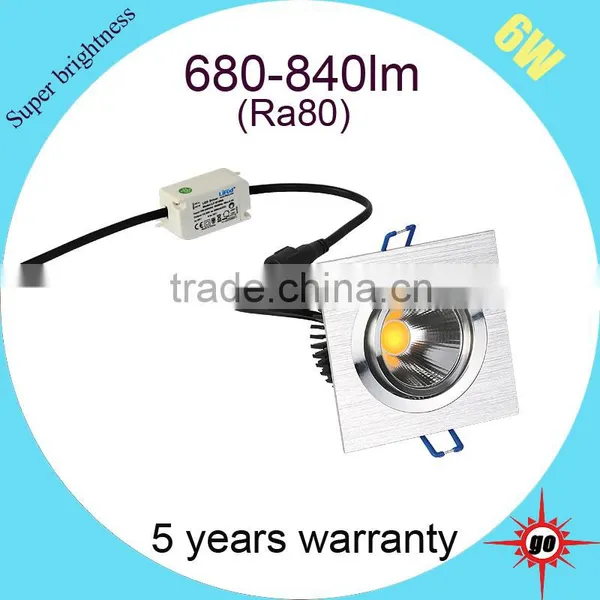

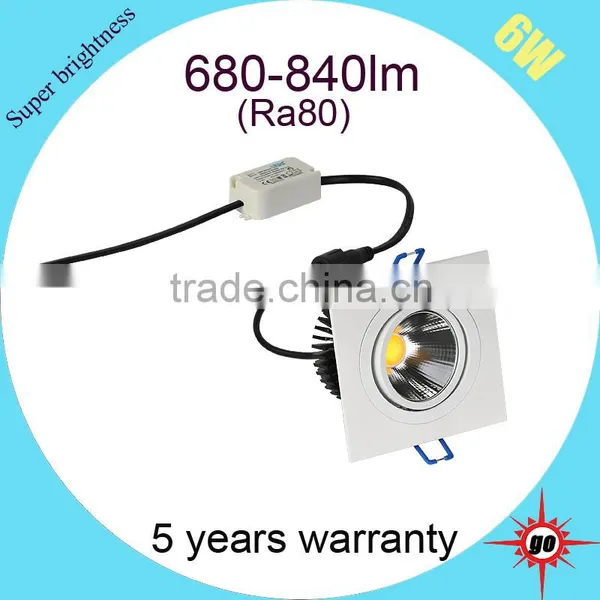

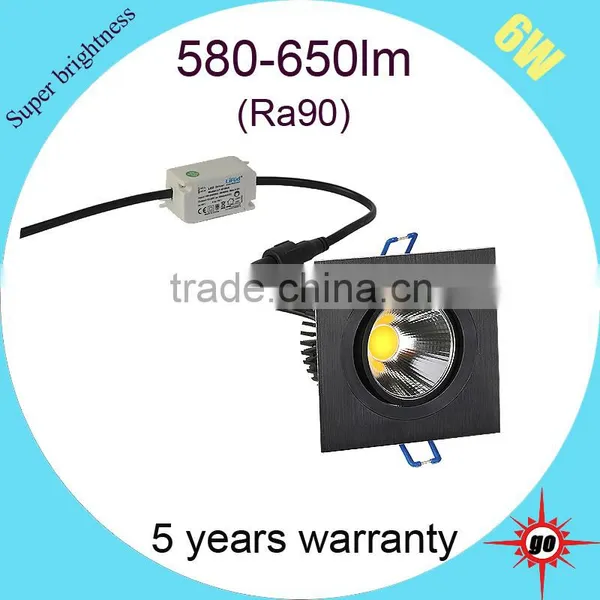

2016 New Fashionable Square LED Downlight 6W photo-1
2016 New Fashionable Square LED Downlight 6W photo-2
2016 New Fashionable Square LED Downlight 6W photo-3
2016 New Fashionable Square LED Downlight 6W photo-4
2016 New Fashionable Square LED Downlight 6W photo-5
2016 New Fashionable Square LED Downlight 6W photo-6
US$ 12.8 - 12.8 MOQ: 1 Piece
Key Specifications
Get Latest Price
Light Source:
Incandescent Bulbs
Input Voltage(V):
AC100-277V
Install Style:
Downlights
Contact Supplier Request Quote Chat Now
Shenzhen Gosun LED Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Light Source Incandescent Bulbs
Input Voltage(V) AC100-277V
Install Style Downlights
Certification CE, GS, SAA, SASO
Lamp Power(W) 7.5
Lamp Luminous Flux(lm) 1200
Lamp Luminous Efficiency(lm/w) 110
Color Temperature(CCT) Warm White
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum
Shade Type Clear Glass
Model Number GS-SCL6WS-WW
Place of Origin Guangdong, China
Brand Name gosun



6W square LED downlight IP42

Available watt: 6W,9W,10W,15W,20W,30W,40W

                                     2*6W,3*6W,2*9W,

                                     3*9W,2*10W,3*10W

                                     2*15W,3*15W,2*20W,

                                      2*30W,2*40W

Detail Descriptions:



1.Product features



LED power 6W
Lamp consumption 7.5W
Output 680-740lm
Beam angle 30/40/50 degree
Input voltage AC100-277V/180-270v
Frequency Range 50-60HZ
CRI >82(Max95)

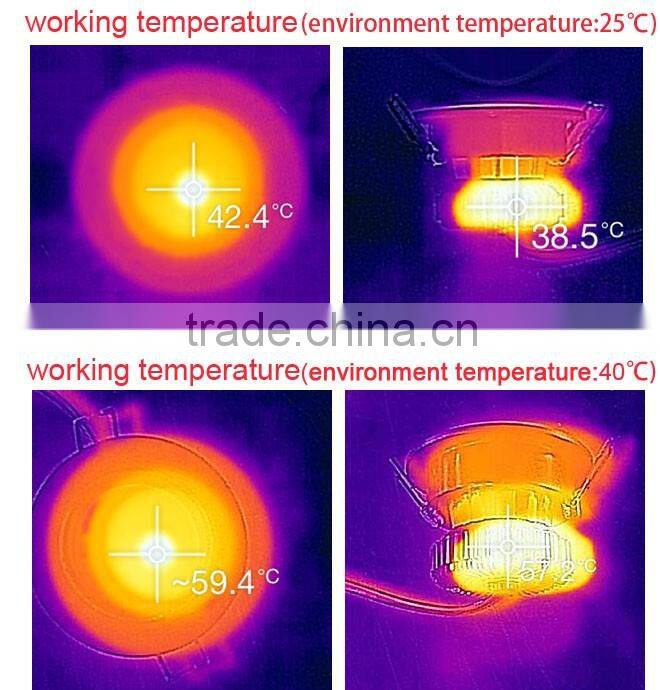

Working Temperature -40°c-45°c
Storage Temperature -25°c-65°c
Color of housing Aluminum,white ot black








PCB Ceramic
Chip Brand Gosun/Cree/bridgelux/Citizen/Epistar
Output 680-740lm
Chip Qty 140pcs
CRI >82(Max95)
dimension 92*92*H70mm
cutout 72-80mm



  2016 new fashionable square LED downlight 6W

3.Driver parameter



Brand Lifud/Meanwell/EAGLERIES/PHILIPS/TRIDONIC
Input AC100-277vAC/AC180-277V
Output 28-32vDC,350mA
Power Factor 0.9-0.99
Power Efficiency 88%
Certificate EMC/TUV/UL/SAA/CB/PSE/CQC
Dimmable Triac/ Dali /WI-FI/0-10 available

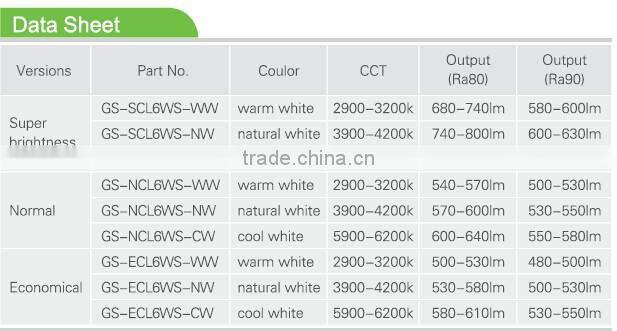

  Data Sheet:

2016 new fashionable square LED downlight 6W

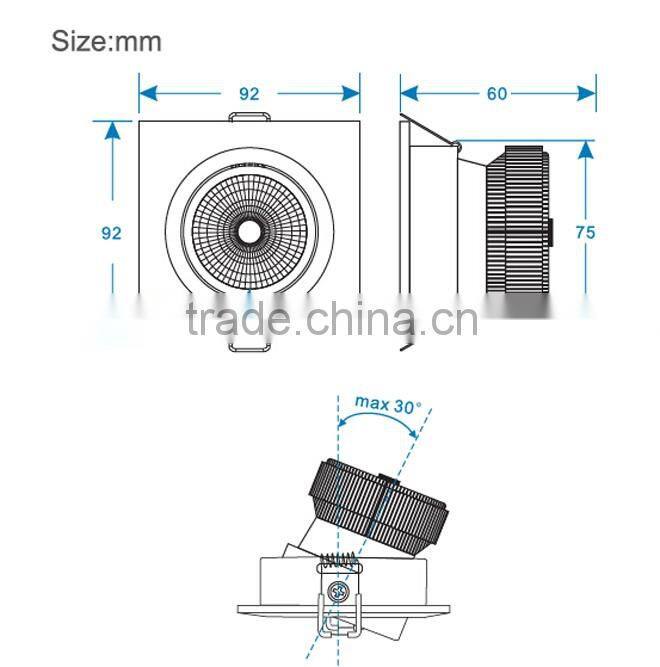

Dimensions(mm):
2016 new fashionable square LED downlight 6W

More pricture:


 2016 new fashionable square LED downlight 6W
2016 new fashionable square LED downlight 6W

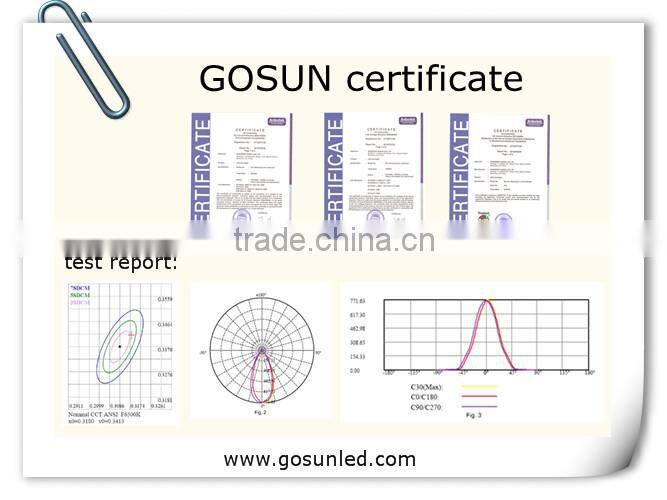

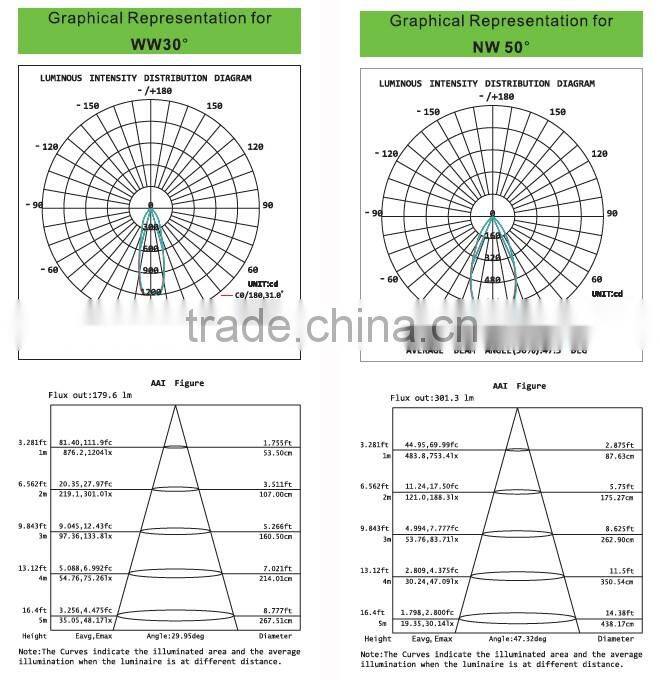

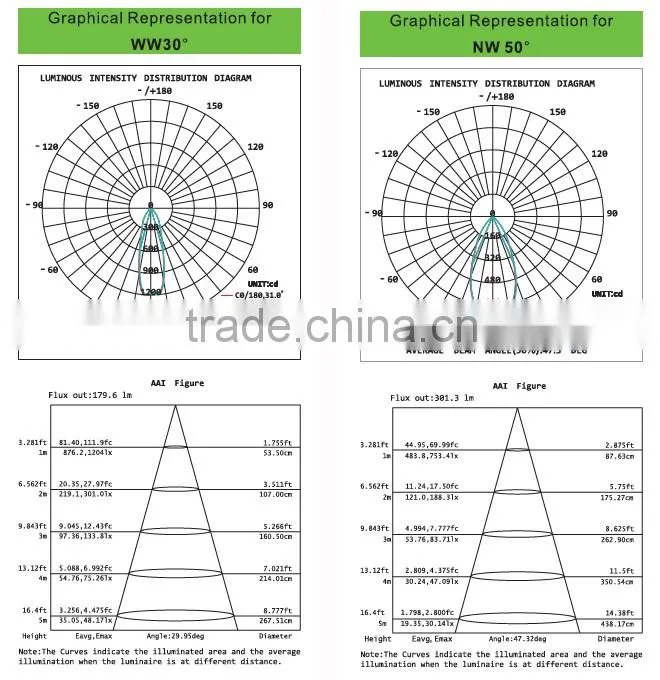

Test Report(Please contact us to get the IES files):

 2016 new fashionable square LED downlight 6W

2016 new fashionable square LED downlight 6W

2016 new fashionable square LED downlight 6W

2016 new fashionable square LED downlight 6W
2016 new fashionable square LED downlight 6W
2016 new fashionable square LED downlight 6W
efficiency, even color without light spot, because of the special features, our products are mainly used in specialty stores, shopping malls, art gallery, showroom, the exhibitions, etc.

We are professional and focused on COB led lamps, we believe these are basis of quality, and quality is a vitality of enterprises.

Gosun, Light up your life!!!

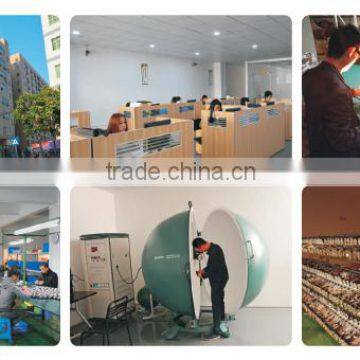

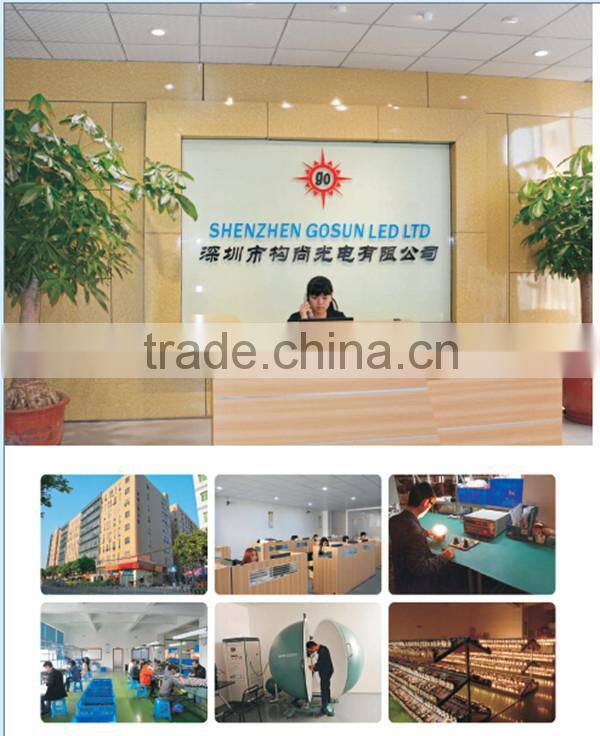

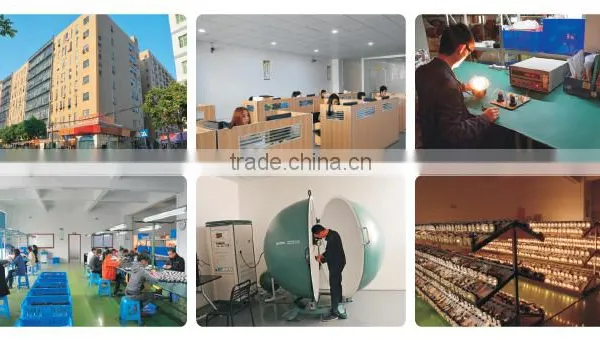

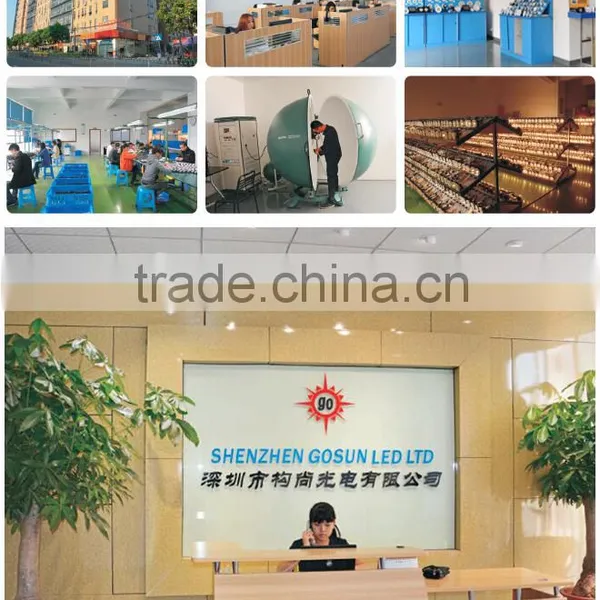

Company picture:
2016 new fashionable square LED downlight 6W
2016 new fashionable square LED downlight 6W

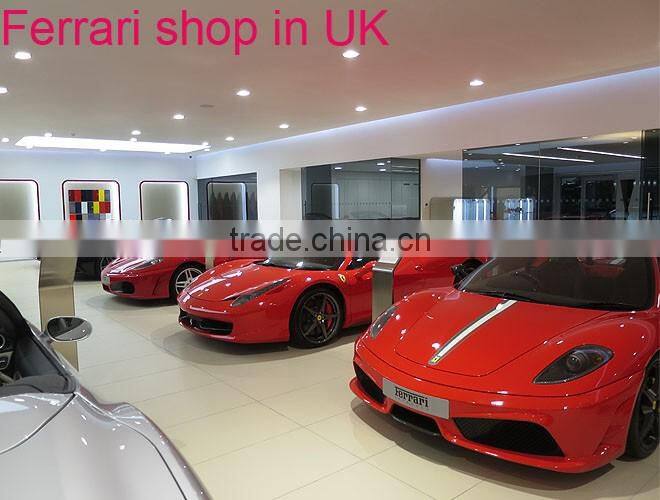

Projects Ferrari
2016 new fashionable square LED downlight 6W

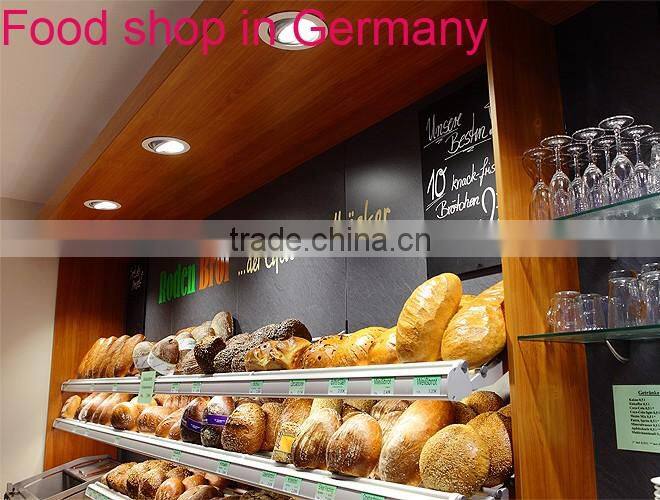

Projects for Germany
2016 new fashionable square LED downlight 6W









Our Services





1.Your inquiry related to our products or prices will be replied in 24hours.


2.Well-trained and experienced staffs to answer all your enquires in fluent English


3. We can help you to design and put into any your customized lightings .


4.Distributership are offered for your unique design and some our current models


5.Protection of your sales area, ideas of design and all your private information.



Advantages:

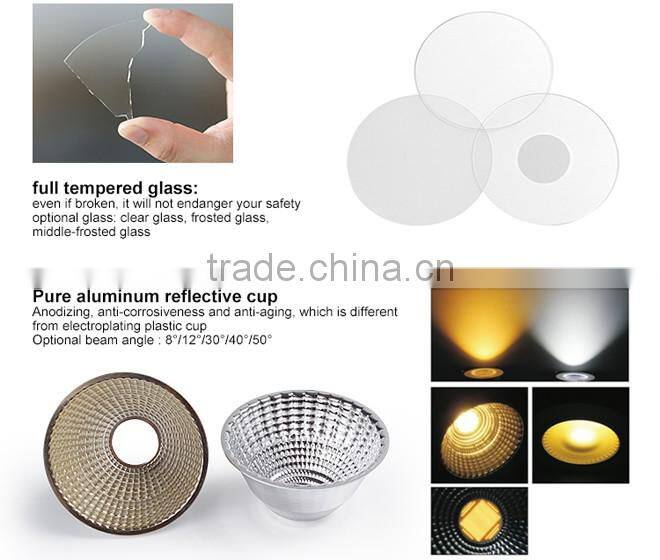

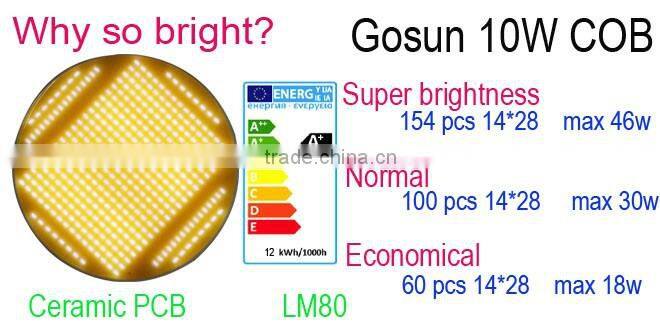

1.Light source:  COB light source is made of ceramic PCB and Gosun/Cree/bridgelux/Citizen chip for your choose.



2.Rflector cup:  the reflector is designed by professional optical lab company.The Emitting effect is more than 93%.



3.Driver:   Lifud/Meanwell/EAGLERIES/PHILIPS/TRIDONIC  driver is optional,with CE/ROHS/SAA/UL/TUV certificates.



4.Design:  All the COB products are designed by ourself.

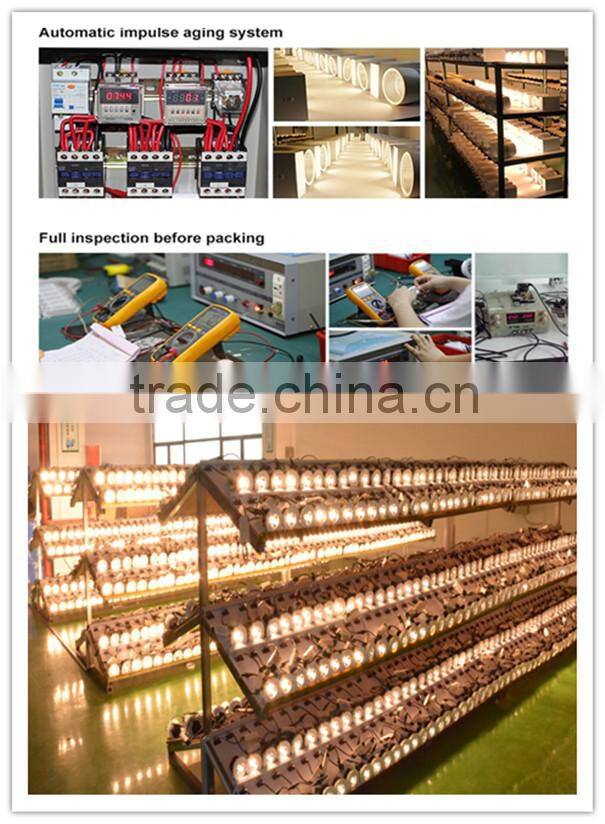

5.Aging:  All the products aging 24 hours and turn on and off more than 500 times by relay.







Our Terms:



1. MOQ: 1PCS welcome.



2. 5days lead time for samples, and 10days for bulk.



3. Usually we accept T/T, Paypal, and Western union to pay.



4. DHL/UPS/FEDEX/TNT Express,sea and air transportation you can choose.



5. We doing neutral packing, and we can put your company's information on when you required.



6. We accept 30% and 70% payment terms when large quantity.



7. 3 year warranty, in case any quality issue in 3 years, we replace with new items without any excuse,



 8. We can return samples if you don't like them at all.





               Any inquiry will be highly appreciated!!
