US$ 35.8 - 60.8 MOQ: 1 Piece
Key Specifications
Get Latest Price
LED Light Source:
COB
Warranty(Years):
5
Input Voltage(V):
AC100-277V
Contact Supplier Request Quote Chat Now
Shenzhen Gosun LED Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
HongKong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source COB
Warranty(Years) 5
Input Voltage(V) AC100-277V
Lamp Power(W) 44
Lamp Luminous Flux(lm) 4500-4700
Lamp Luminous Efficiency(lm/w) 105
Color Temperature(CCT) Warm White
Working Temperature(℃) -45, 45
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum Alloy
IP Rating Other, IP 42
Certification BV, C-tick, CCC, CE, CQC, EMC, Energy Star, FCC, GS, PSE, SAA, SASO
Model Number surface mounted
Place of Origin Guangdong, China
Brand Name Gosun





 40W surface mounted LED downlight with

CE/RoHS/SASO/SAA/GS certificate







Available watt:

 20w,30w,40w,50w



Apllication:



 They are suitable for different kinds of indoor illumination lighting: such as home lighting, shopping mall,super-market, hotel, restaurant, office, factory, etc.





Advantages:



       1.Light source: COB light source is made of ceramic PCB and small chips.For example,a 10w COB is made of 160 pcs chips,and 30w made of 500pcs.



       2.Rflector cup: The reflector is designed by professional optical lab company.The Emitting effect is more than 93%.



       3.Driver: Lifud driver or MEANWELL driver is optional,with CE/ROHS/SAA/UL/TUV certificates.

           Parameter:
          (1) Brand: Lifud (LED Friend).
          (2) Input:100-277v AC.
          (3) Output: 27-42vDC, 320mA.
          (4) Power Factor: 0.9-0.98.
          (5) Power Efficiency: 85%
          (6) Certificate:EMC/TUV/UL/SAA

       4.Design: All the COB products are designed by ourself.



      5.Aging: All the products aging 24 hours and turn on and off more than 500 times by relay.





Data Sheet:



Versions  Part No. Color CCT Output(Ra80) Output(Ra90)       Size



Super

brightness

 GS-SFDL40W
-COB-WW		 Warm white 2900-3200K 4500-4600lm 3600-3700lm



φ157*H157*

φ180
GS-SFDL40W
-COB-NW		 Natural white 3900-4200K 4600-4700lm 3700-3800lm
GS-SFDL40W
-COB-CW		 Cool white 5900-6200K 4700-4800lm 3800-3900lm

Normal

 GS-SFDL40W
-COB-WW
 Warm white
 2900-3200K
 3900-4000lm 3300-3400lm
GS-SFDL40W
-COB-NW		 Natural white 3900-4200K 4000-4100lm 3400-3500lm
GS-SFDL40W
-COB-CW		 Cool white 5900-6200K 4100-4200lm 3500-3600lm
Economical GS-SFDL 40W
-COB-WW		 Warm white 2900-3200K 3600-3700lm 3100-3200lm
GS-SFDL40W
-COB-NW		 Natural white 3900-4200K 3700-3800lm 3200-3300lm
GS-SFDL40W
-COB-CW		 Cool white 5900-6200K 3800-3900lm 3300-3400lm

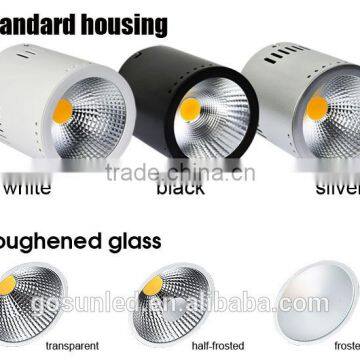

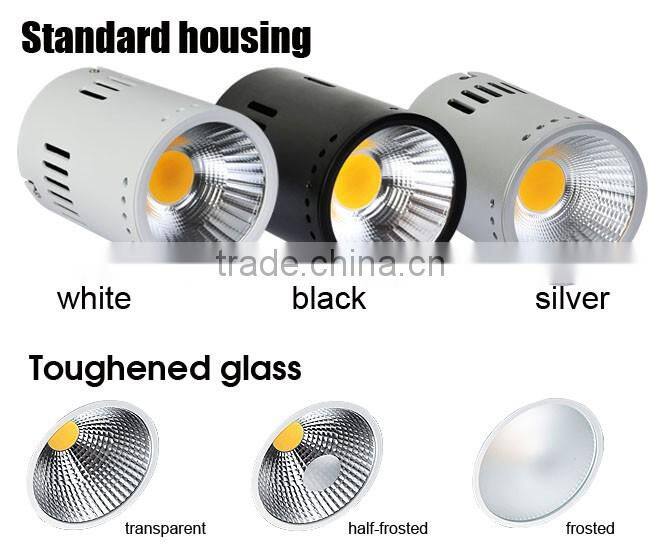

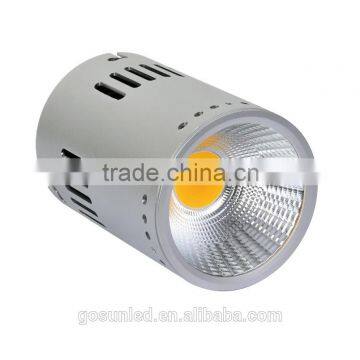

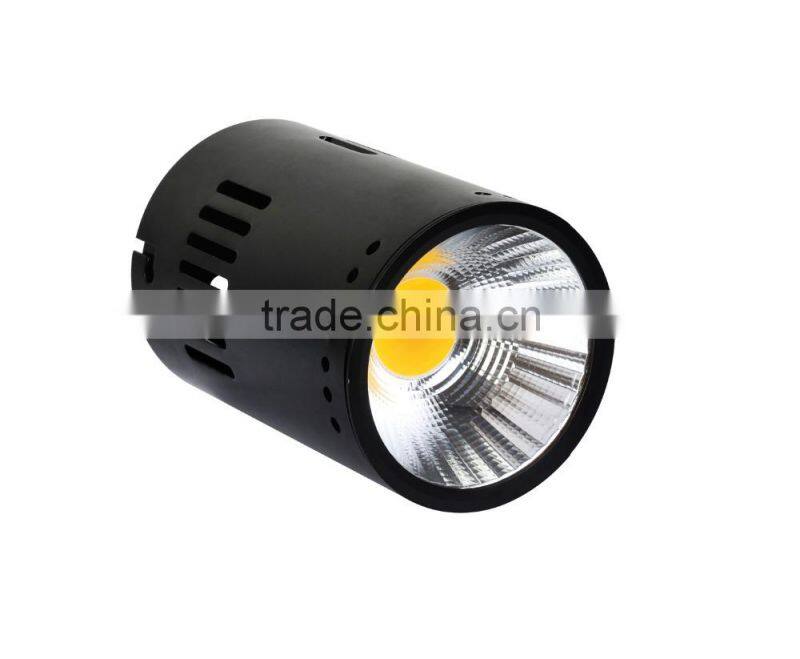

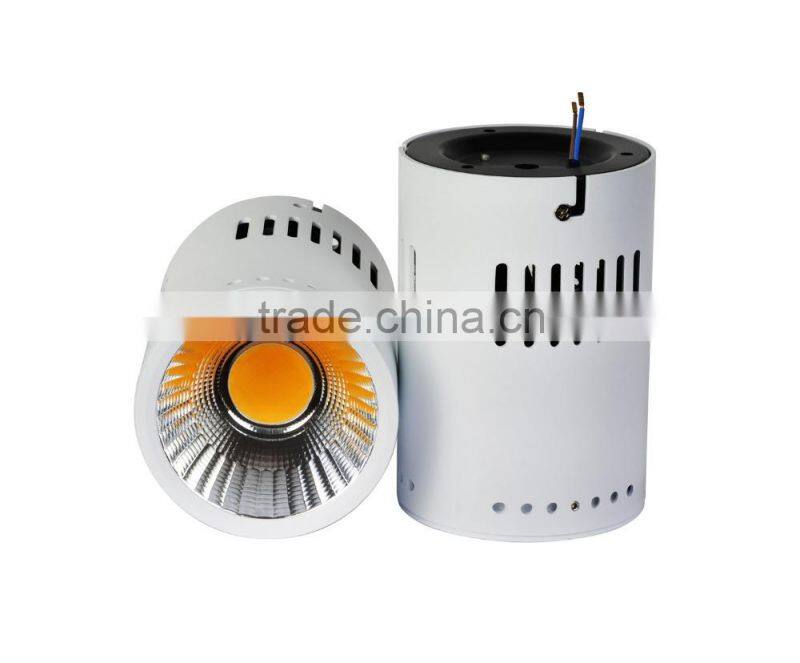

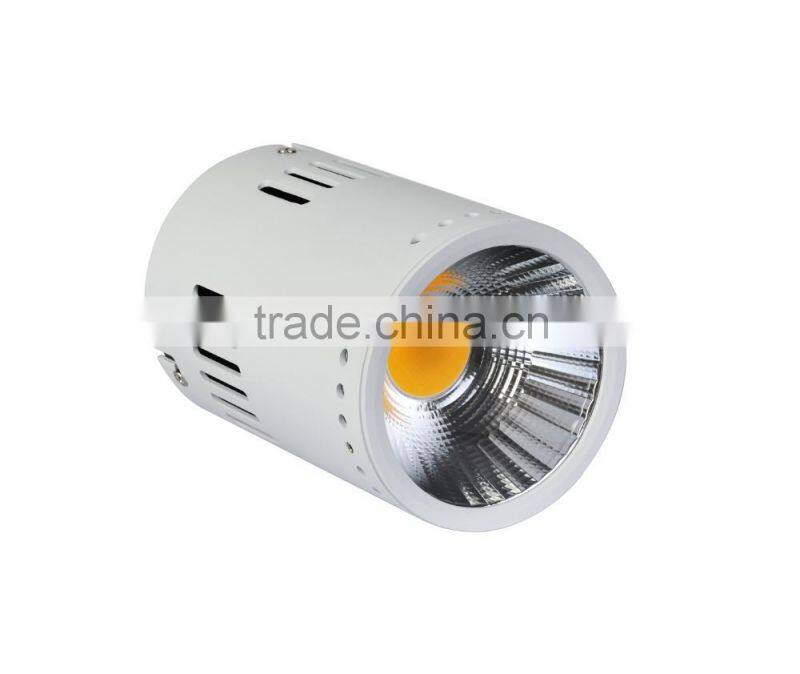

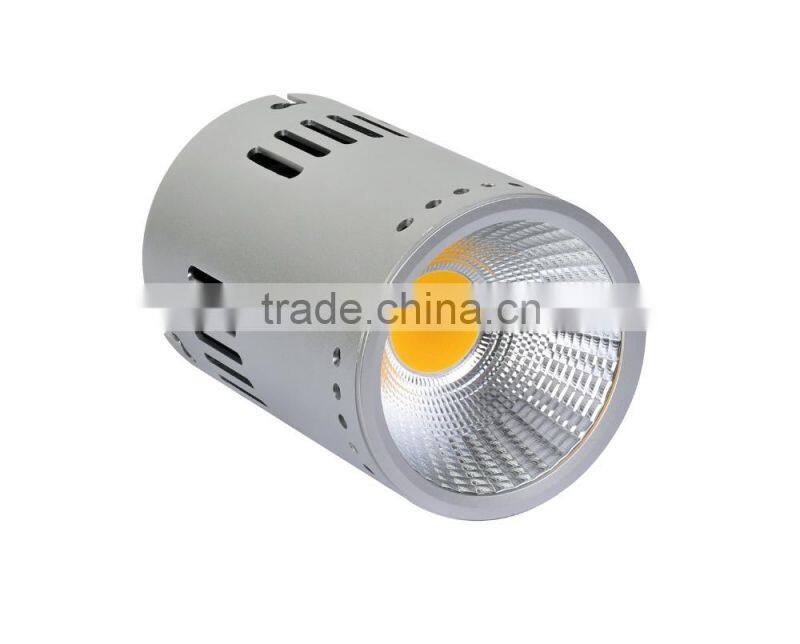

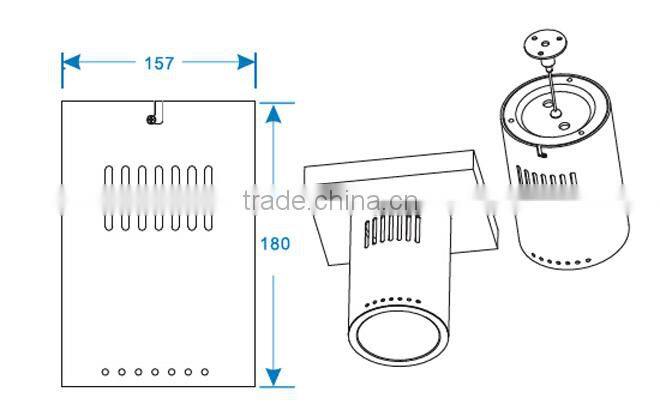

Picture and Dimension:

40W surface mounted LED downlight with CE/RoHS/SASO/SAA/GS certificate40W surface mounted LED downlight with CE/RoHS/SASO/SAA/GS certificate40W surface mounted LED downlight with CE/RoHS/SASO/SAA/GS certificate40W surface mounted LED downlight with CE/RoHS/SASO/SAA/GS certificate

40W surface mounted LED downlight with CE/RoHS/SASO/SAA/GS certificate

 40W surface mounted LED downlight with CE/RoHS/SASO/SAA/GS certificate

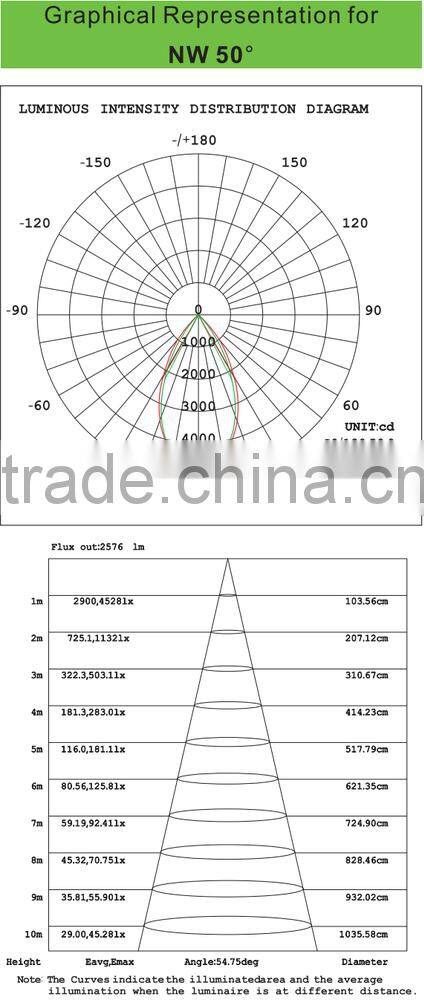

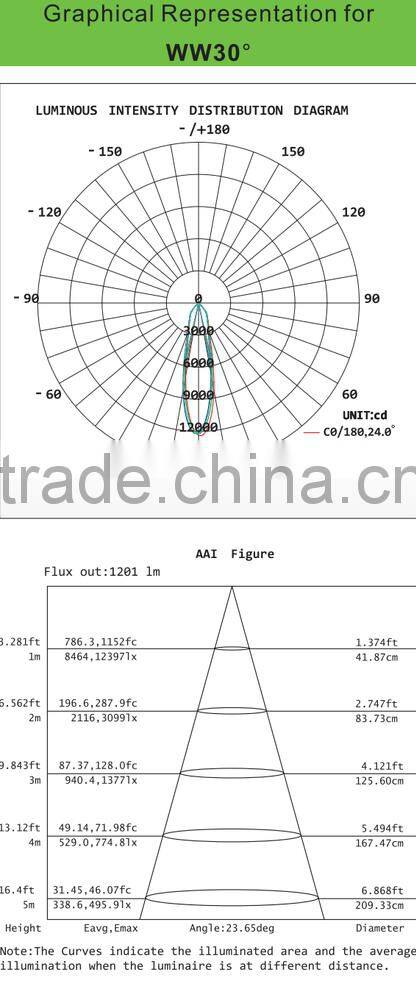

IES Test:(please contact us to get the IES file)











Images for Reference

 40W surface mounted LED downlight with CE/RoHS/SASO/SAA/GS certificate

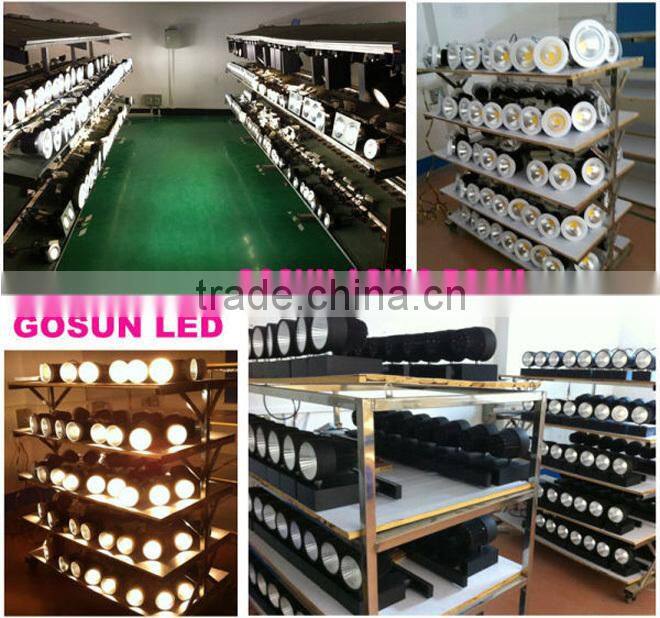

Aging test:

 40W surface mounted LED downlight with CE/RoHS/SASO/SAA/GS certificate

 40W surface mounted LED downlight with CE/RoHS/SASO/SAA/GS certificate







Lighting:







More Products

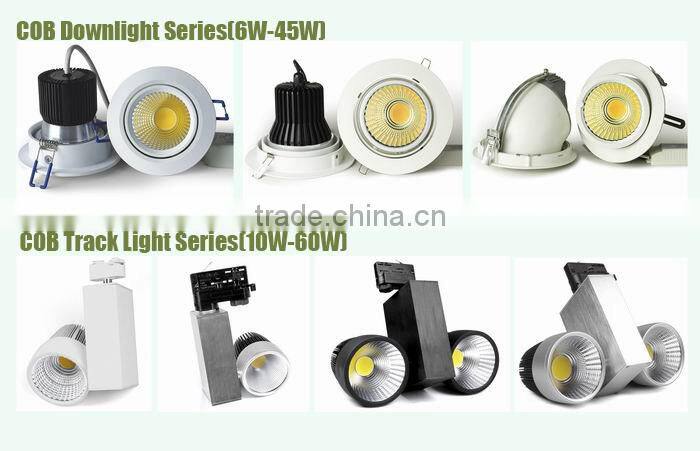

Other products:

40W surface mounted LED downlight with CE/RoHS/SASO/SAA/GS certificate





  40W surface mounted LED downlight with CE/RoHS/SASO/SAA/GS certificate
Question & Answers



 Q&A



Q1. What certificates you have?

A: CE & RoHS, SAA.



Q2. What's the warranty?

A:  5 years.



Q3. What's the MOQ?

A: MOQ is 1.



Q4. How long is the delivery time?

A: The lead time is 7-10 days for normal order.



Q5. What's your payment terms please?

A: T/T in advance, L/C, Paypal, West Union.





Certificates



Certificates(CE ROHS):

















Attention:



 1.Avoid using under high temperature and high humidity conditions.



 2.Turn off the power before installation.



 3.Do not use in enclosed fixtures.



 4.Do not connect to a dimmer.



 5.Do not touch the metal part while the power is on



Our service:



1.Your inquiry related to our products or prices will be replied in 24hours.



2.Well-trained and experienced staffs to answer all your enquires in fluent English



3.Any your customized lightings we can help you to design and put into product.



4.Distributoership are offered for your unique design and some our current models.

5.Protection of your sales area, ideas of design and all your private information.



 Any inquiry or trial order with sample will be highly appreciated!
