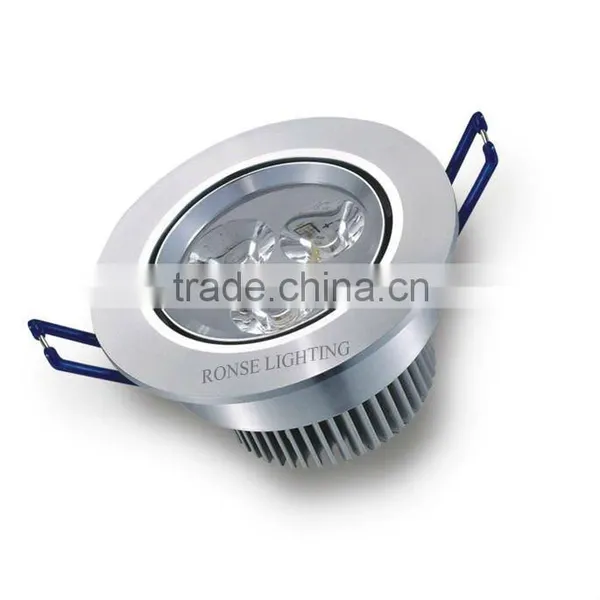

IP20 high power led down light 3W (RS-20112)

Specifications

IP20 high power led down light 3W
1.CE, RoHS
2.High brightness
3.Factory price & 2 years warranty
4.IP20 led down light

IP20 high power led down light 3W (RS-20112)



(I) Application for high high power led  light

The product can be widely used for illumination in supermarket, shop, hotel, showroom, meeting-room, factory, museum, school, hospital and so on



(II) Our Advantages & service

1.  We apply pure aluminum for the housing material, have better heat dissipation

2. We are equipped with several advance CNC machines and a team of professionals who have been in this field for over 10     years, we get good praises from numerous clients for outstanding design, perfect craft and knight service

3.  From raw material to finished product, we can control the quality and delivery time

4. We design and manufacture the led lights by ourselves, and we also can design the lights according to the customers' needs

5. OEM & ODM are welcomed



 (III) Specification  of High power LED down light  3w

Model no.	RS-20112
Housing material	Aluminum
Surface treatment	Polished Alu/Brushed Alu/ sand alu.
Dimension	Ø86*62mm Cut-out: 75mm
Input	AC100-265V  50/60HZ
Power	3W
Light source	3*1W LED
Emitting color and color temperature	Warm white  3000K Natural white  4200K Cool white  6500K
Luminous flux	270-300 lm
Color rendering index (CRI)	85 Ra
Beam angle	30°/38°/45°/60°
LED driver	Constant current
Lifespan	50000 hrs



The line drawing picture and simple description of  led down light  3w









 Luminous intensity distribution Diagram of IP20 led down light 3w



Back picture of led down light 3w







Our integrating sphere for testing luminous flux of led light







The aging for led light
