Home > Manufacturing & Processing Machinery > Machinery for Food, Beverage & Cereal > Fruit & Vegetable Processing Machinery > Filtering Machine

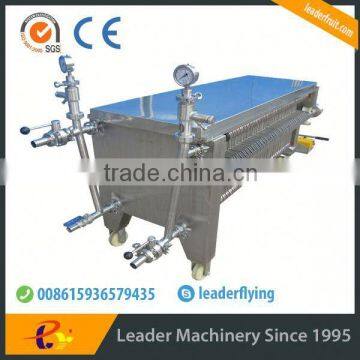

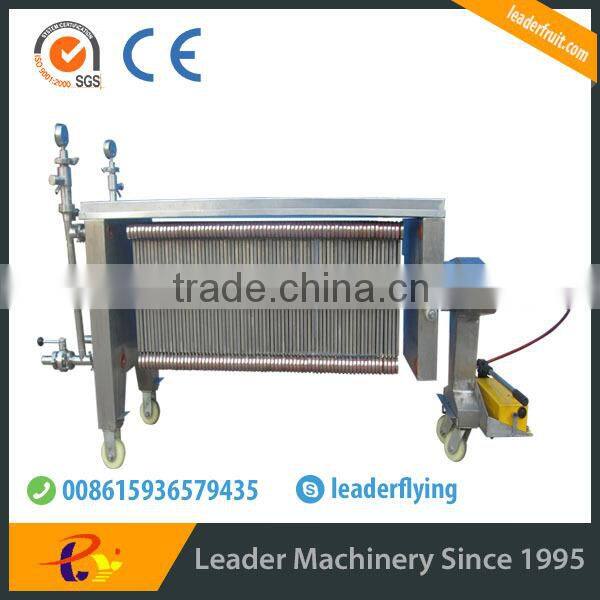

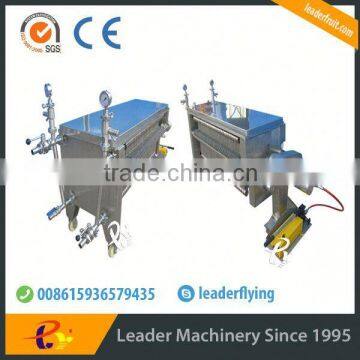

Filtering Machine

Name: Filtering Machine
Brand: Leader
SKU: 104286759
Availability: InStock

US$ 800 - 5,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Henan, China

Brand Name:

Leader

Contact Supplier Request Quote Chat Now

Xinxiang City Leader Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Any port in China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Henan, China

Brand Name Leader

Model Number LDFL

Type Other, filter

Voltage 380v or optional

Power(W) refer to parameters

Weight refer to parameters

Dimension(L*W*H) it depends

Certification CE,ISO, CE and ISO

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

filtering machine

Let’s start the journey of exploring our product

filtering machine

Product Description

Introduction

filtering machine is produced with the technology imported from German.It is the clarifying and degerming machine which is the most widely used and the most reliable.It can be equipped with different type refined filtering or degerming cardboard to filter every kind of liquid products of different industries such as wine,drink,food,medicine and chemicals.Its retention rate of solid particles and thallus whose diameter is 0.2-0.5μm is 100 percent.So it can take place of the old technology of pasteurization,and it also can reserve the character of the original liquid products.

Working principle

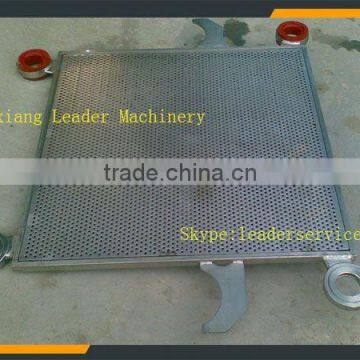

$key is connected with diatomite filter directly or with pump. The liquid products which need further filtration are conveyed to the import channel formed by filter plate,seal and end plate.Then they flow into the end plate and each fine filter box.Because of the pressure difference before and after filtration,the liquid products flow into filter box through the fine filter plate.Then under the closure,screening and adsorption of fine filter plate,the impurities such as solid particles and thallus are separated from the liquid products.Finally,the clarified liquid products flow out from the outlet channel at the other side of the filter plate.

Applied fields

$key is mainly used to clarify and degerming filter liquid products in different industries such as wine,drink,food,medicine and chemicals.

Feature

(1)The structure of this machine is simple,and it is easy to use.

(2)This machine moves flexible.And it is easy to maintain.

(3)It can reserve the character of the original liquid products.The quality of filter is stable and reliable.

(4)It can re-filter the liquid products when the intermediate of filter plate group is setted with special plates.

Clarification and degerming can be carried same machine same time.

Technical parameters

	400×400			600×600			1000×1000
Reference flow	Clarifying	degerming		Clarifying	Degerming		Clarifying	Degerming
Fruit wine(hl/h)	20-40	15-25		45-75	30-50		70-105	45-70
Quantity of filter plate(piece)	39			69			99
Quantity of end plate(piece)	2			2			2
Filter area(square meter)	5.7			10			14.3
Filter cardboard size(mm)	807×397×3.5
Highest working pressure(MPa)	0.4
Biggest pressure difference(MPa)	0.1
Furthest journey of screw (mm)	230		380			500
Overall dimensions(mm)	2056×800×1050		2766×800×1050			3416×800×1050
Weight(kg)	810		1000			1180

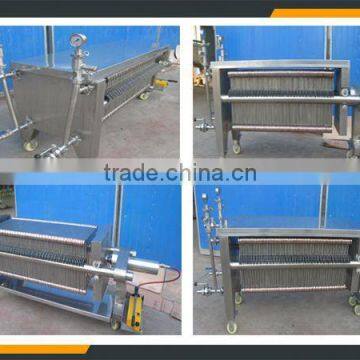

Scene shows

Patent Certificate

Production ability

Packaging & Shipping

Packaging

For export, we usually use different packs for different products according to its size.

For small size, crate case is adopted.

For big size and heavy good, fumigation-free wooden case or pallet is offered for 20’ or 40’ container or bulk shipment.

Five years export experience guarantees you to get your goods safely and quickly.

FAQ

Do you have questions of filtering machine?Pl refer to our FAQ.

1.Q: How can I get a suitable model?
A:Pl tell me your fruit to be processed,its variety,its min,max and regular diameter,your requirement about capacity.Fruit photos are much appreciated.Then i will select suitable model for you.

2.Q:What is your machine material?

A:Our machine material are food grade stainless steel for all body.

3.Q:Could you pl kindly design a workshop layout for line?A: Yes,according to the length and width of your worksite ,our engineer can design a layout for you.

4.Q:How could you demonstrate the effect of your machine?

A: We can offer video and you are welcome at any time to visit us for products and our production capacity.

Our Services

For more, please contact us!
