Leader best selling soda drinks cap closing machine
Let’s start the journey of exploring our product

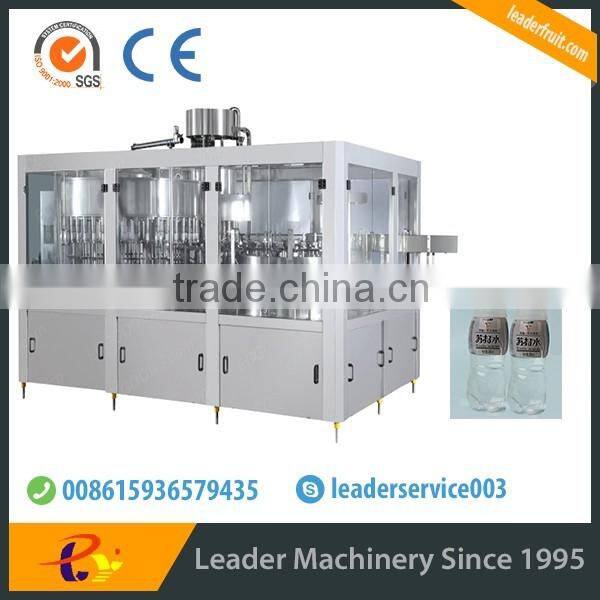

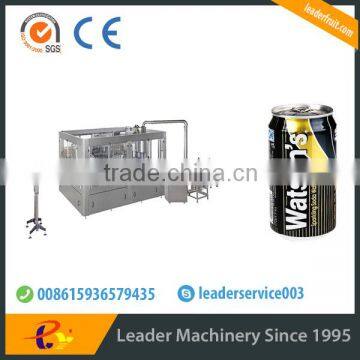

Leader best selling soda drinks cap closing machine
Introduction
This soda drink cap closing machine is mainly used for sterilizing, washing, filling and capping four in one operation. The touch screen of the machine guaranteethe full automation of the filling system available for PET bottles and plastic bottles and the machine is mainlyfor the filling of soda drinks. All parts can be freely adjusted according to the bottle type, simple, quick, stable and reliable. Besides the PLC control system is adopted in the machine to run the machine automatically. With the wind sent device to send the bottle into the filling system and the bottle chain channel output using variable-speed mode, the whole machine becomes more stable and easy to handle when in corporation with the host complement. The degree of the automation is very high, and this machine is the first choice of many factories major in producing soda drinks.
Working principle
Empty bottles are sent into the filling machine through the conveying line. First, these empty bottles are washed and sterilized in the machine, then sent to the filling part, finally they are capped and delivered out through the conveying line to the next stop. The whole process is running automatically.
Applied field
This soda drink cap closing machine is mainly used for sterilizing, washing, filling and capping four in one operation. It is available for PET bottles and plastic bottles, mainly filling soda drinks. This machine is the first choice of many factories major in producing soda drinks.
Feature
1. Wind sent and neck handing technology is adopted.
2. Three devices are in one operation, less time, more stable and reliable.
3. All the parts that can touch the drinks are made of stainless steel beyond the state health standards.
4. High speed and big flow filling device with less time.
5. Full automation requires less human resources and less money.
Technical Parameters
|
Model (RCGF) |
16-16-12-6 | 18-18-18-6 | 24-24-24-8 | 32-32-32-10 | 40-40-40-12 | 50-50-50-15 |
| sterilizing heads | 16 | 18 | 24 | 32 | 40 | 50 |
| washing heads | 16 | 18 | 24 | 32 | 40 | 50 |
| filling heads | 12 | 18 | 24 | 32 | 40 | 50 |
| capping heads | 6 | 6 | 8 | 10 | 12 | 15 |
|
capacity (b/h) |
2000-3000 | 4000-6000 | 8000-10000 | 10000-12000 | 12000-15000 | 16000-20000 |
|
power (kw) |
3.0 | 3.5 | 4.5 | 6.5 | 7.5 | 8.5 |
|
dimension (m) |
2.3*1.8*2.3 | 2.7*2.1*2.3 | 2.9*2.2*2.9 | 3.7*2.8*2.9 | 5.5*3.3*2.9 | 6.5*4.5*2.9 |
|
weight (kg) |
3500 | 4500 | 5500 | 7500 | 5800 | 9500 |
Patent certificate
For export, we usually use different packs for different products according to its size.
For small size, crate case is adopted.
For big size and heavy good, fumigation-free wooden case or pallet is offered for 20’ or 40’ container or bulk shipment.
Five years export experience guarantees you to get your goods safely and quickly.
Do you have questions? Pl refer to our FAQ.
1.About this machine
Q1:What is the material of your this machine?
A:Apart from transmission, all materials are sus 304.
Q2:How can I get a suitable model?
A:Pl kindly tell me the diameter range of your bottles and your requested capacity per hour ,then we will choose suitable model for you.
Q3:I want a whole line for juice/wine, could you pl help?
A:Yes,we can provide you a whole line to get nature fresh juice.
Q4:Could you pl kindly design a workshop layout for line?
A:Yes,according to the length and width of your worksite ,our engineer can design a layout for you.
2.About test
Q:How could you demonstrate the effect of your machine?
A:We can offer video and you are welcome at any time to visit us for products and our production capacity.
3.About payment
Q:What payment term will you accept?
A:We always accept T/T,L/C,Westen Union,Paypal.Other ways can be negotiated.
4.About transportation
Q:What is the transportation you always use?
A:For big products,the usual way is by sea,and for small,DHL is usually used.We also can deliver according to your requirements.
5.About after-sales
Q1:Will you send engineer to our company to install machines?
A:When it is needed, our engineer can go to customer site to install and adjust machines and train operators.
Q2:Will you provide products user book with detailed specification and operation instructions?
A:Yes,it will be sent with machines.
Q3:How long is the guarantee period?
A:We have one year maintenance for free and all life attention service.
Q4:Do you have any warranty about motor?
A:During one year since you get machine ,a new motor will be sent with the proofs that it break downs in normal operation.
For more,please contact us!
