Products Features:
(1)LED Power: 2*30W.
(2)Lamp Consumption: 66W.
(3)Output: 7000-7900lm.
(4)Input voltage:100-277v AC, 50-60hz
(5)Beam Angle: 30°/60°
(6)CRI:> 82.
(7)Working Temperature:-40°C~+55°C.
(8)Storage Temperature: -25°C~65°C.

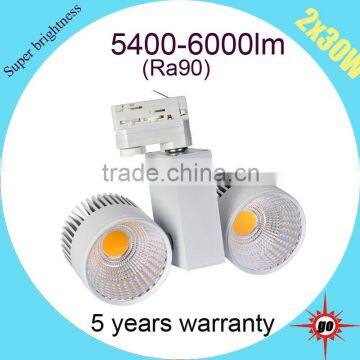

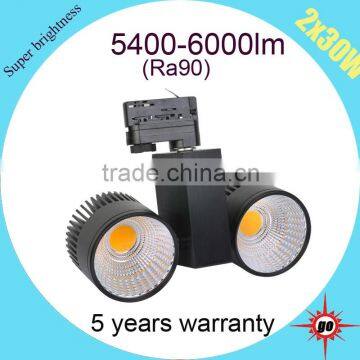

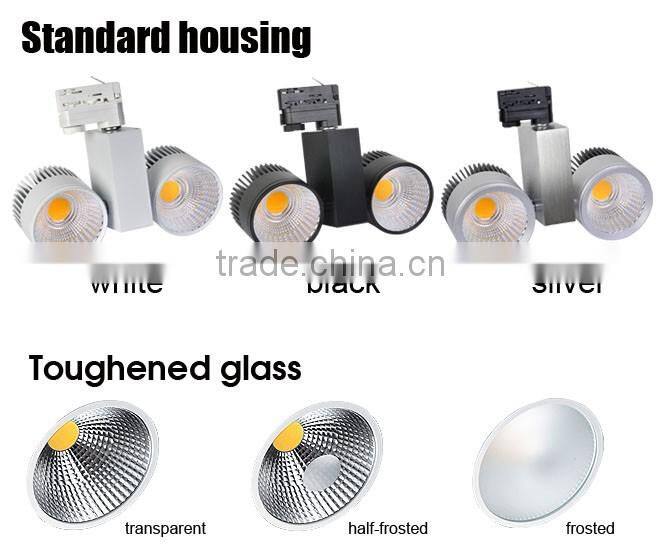

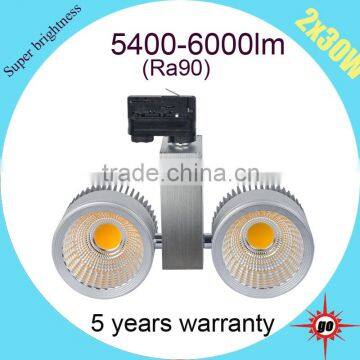

(9)Color of housing: white, black, silver.
(10)Track connector: 2-way, 3-way, 4-way available.
(11)Life span: 50,000+hrs.
(12)Certificate: CE/RoHS
(13)Warranty: 5 years.

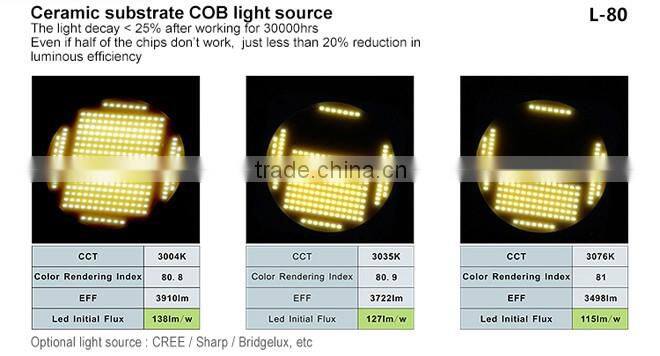

COB Parameter (total 2 COB):
(1)PCB: Ceramic.
(2)Chip Brand: Epistar 14*28
(3)Chip Qty: 462 pcs x2.
(4)CRI> 82.
(5)Voltage: 30-33vDC
(6)Current: 1000-1050mA.



Driver Parameter(total 2 driver):
(1)Brand: Lifud (LED Friend).
(2)Input: 100-277v AC.
(3)Output: 27-42vDC, 1000mA.
(4)Power effect: 0.9-0.96
(5)Power Efficiency: 87%
(6)Certificate: CE/TUV/UL/CQC/SAA

Dimmable: Triac or Dali is available.
Meanwell LPF-40 is optional.

Datasheet:

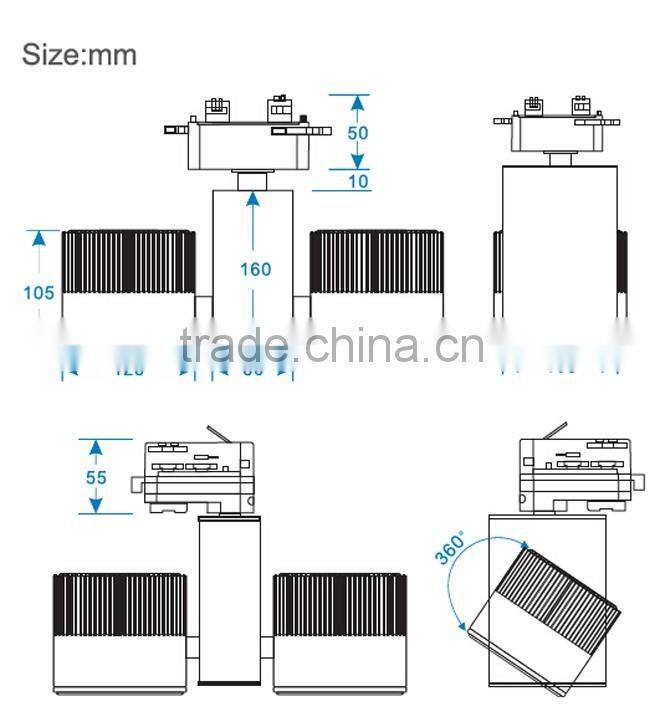

Dimension:

Packing:

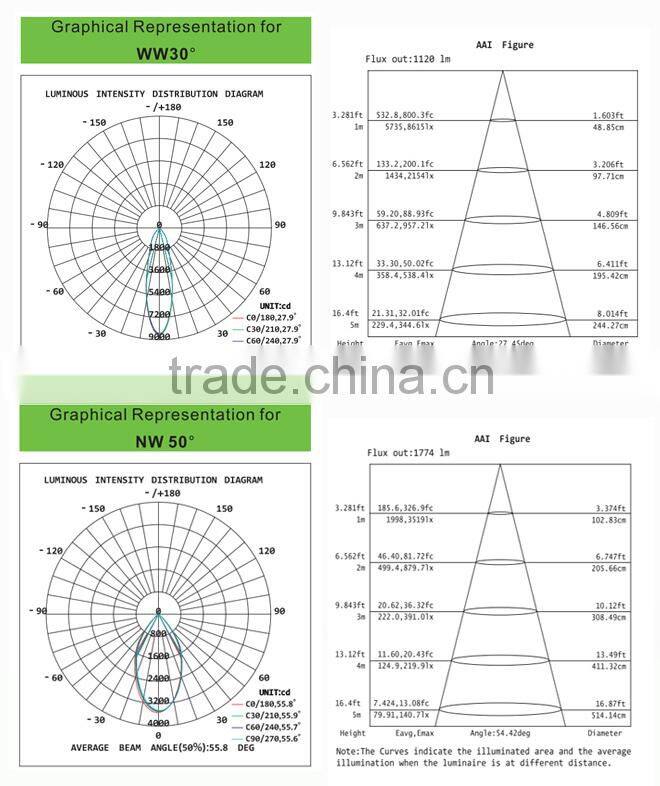

Test reports: (Note: The beam angle is only about 1/2 output of the all illuminated.)

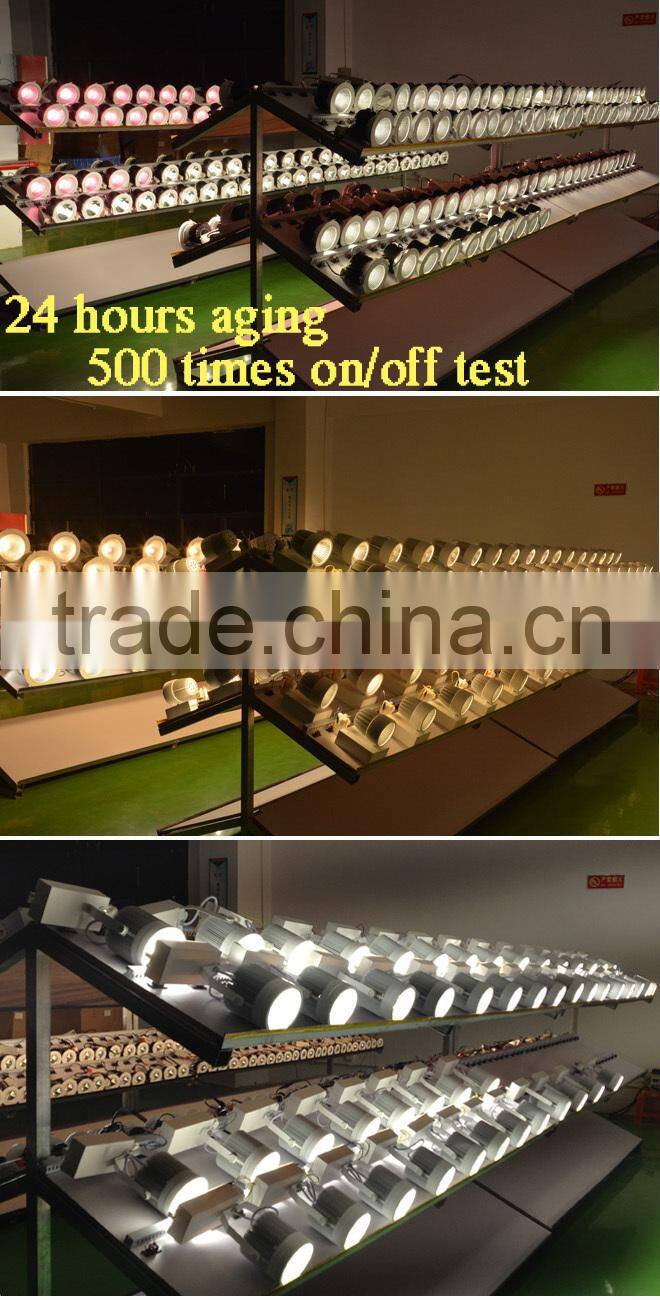

Aging Test

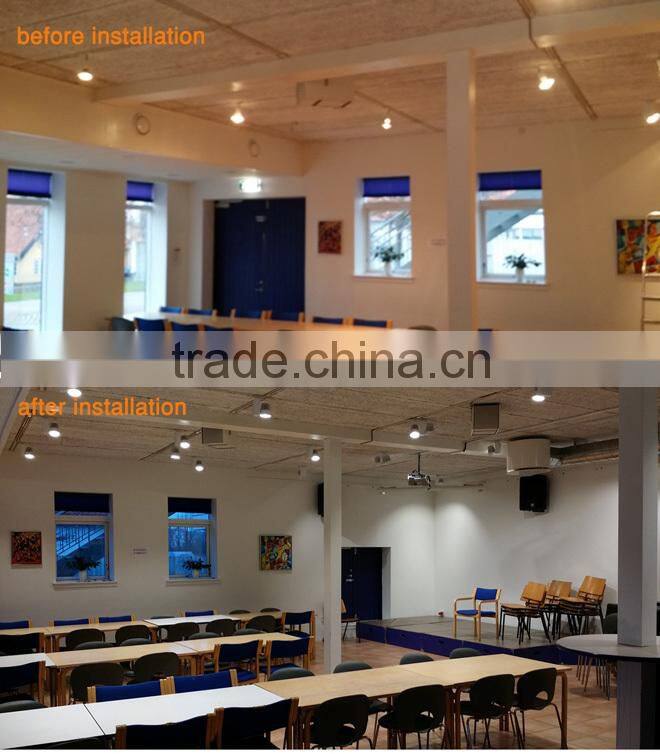

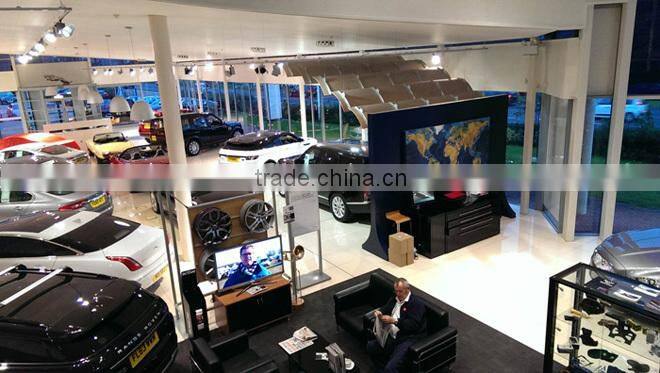

Projects:

 GOSUN certificates:

CE, ROHS, SASO, TUV, ERP test report for the whole lamp.

UL, SAA, TUV, CE, ROHS for the driver.

   Our Service

1.Your inquiry related to our products or prices will be replied in 24hours.

2.Well-trained and experienced staffs to answer all your enquires in fluent English.
3.Any your customized lightings we can help you to design and put into product.
4.Distributorship are offered for your unique design and some our current models.
5.Protection of your sales area, ideas of design and all your private information.

 Welcome to inquiry!
