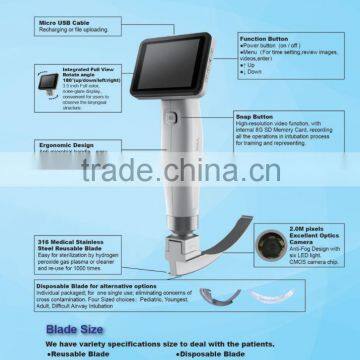

Product Characterics:__________________________________________________

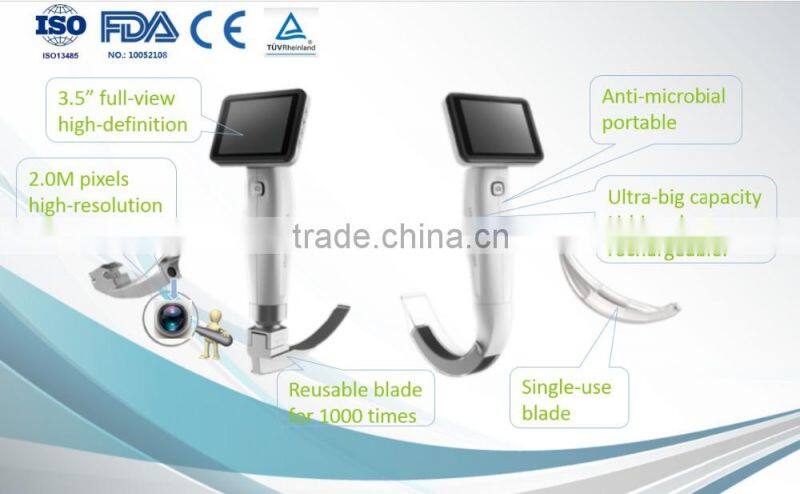

- 2.0M pixel high-resolution full view : 7 times higher than traditional video Larynscope, clearly supporting different angles view of the laryngeal structure avoiding intubation injury.
- Shortest starting up time: only take 3-4 seconds to activate, quickly responsive to emergency use .
- Ergonomic durable design: 350G light-weighted for easy carrying, 180° rotation for easy operation.
- Complete specification of blades: Disaposable and Reusable ,for Newborn/pediatric/adult/difficult airway intubation size.
- Ultra big capacity of lithium-ion battery for continuous use of 200 minutes .
- 24 months warranty.
2)Ergonomic durable design, easy to operate.
3)Utilize 316 medical stainless material, blade can be sterilized under high temperature and pressure or through anti-microbial soaking.
4)The device presents state-of-the-art technique at an affordable price.
Clinical Advantage: ____________________________________________________
1)Avoid the injury intubation may cause to the laryngeal structure by getting a optimal view of the laryngeal structure.
2)Unique anti-fog capacity, no need to preheat, save time in emergency intubation operation.
3)Complete specifications of blades (Pediatric Size/Adult Size/Difficult Airway Intubation Size optional).
4)Ultra big capacity of the battery,can be continually used for 200 minutes.
Application: __________________________________________________________
1)Difficult airway intubation(CL from 1~4 grade),Traumatic airway intubation ,Intubation for cervical activity limited patients Replace routine laryngoscope.
2)Use for anesthesia department, emergency department,ICU,Cardiology,etc.
3)Wild rescue,first aid center,ambulance.
System Configuration: _________________________________________________

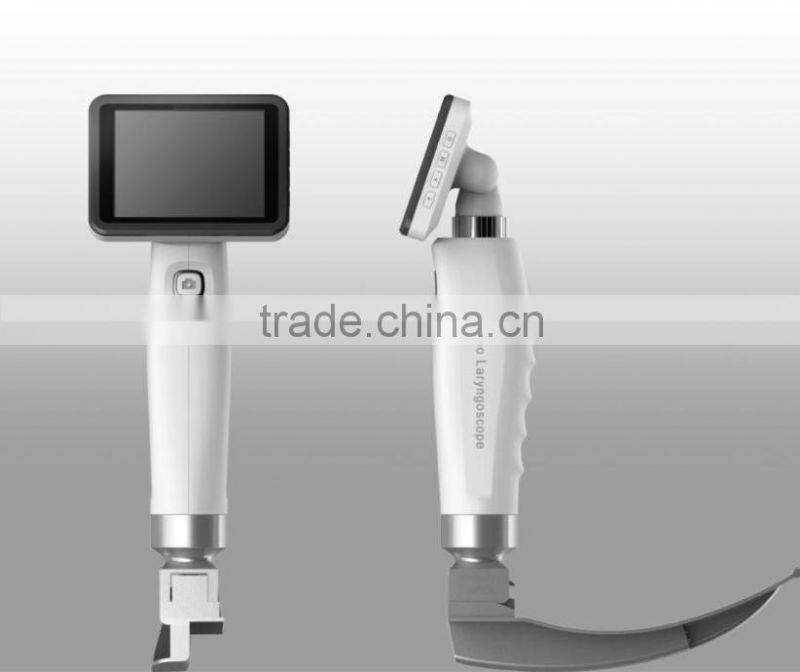

- 3.5” Portable color display

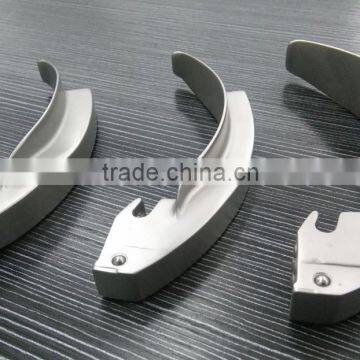

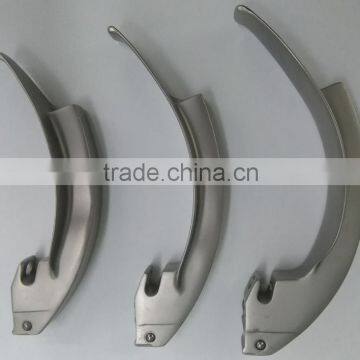

- Various specifications of blades Reusable Video Laryngoscope Blade-(Pediatric/Adult/Difficult airway intubation Size optional)
- Rechargeable lithium-ion battery
- Instruction manual
- Quick installation guide
- Warranty card
Parts |
Parameter |
Technical data |
|
Display |
Size |
3.5"Full View |
Monitor |
LCD |
|
Resolution Ratio |
640*480(RGB) |
|
Aspect Ratio |
4:3 |
|
Video Refresh Rate |
30FPS |
|
Illumination |
LED |
|
Data Output |
Easy to establish and store files. |
|
|
Image Output |
Connect to external monitor and convenient for training and presentation. |
|
|
Laryngoscope Blade (camera included) |
Resolution Ratio |
2.0M Pixels |
Field Angle |
66° |
|
Illuminance |
≥800LUX |
|
|
Battery |
Type |
Rechargeable Lithium Battery |
Long working time |
≥200minutes |
|
Voltage |
3.7V |
|
Capacity |
3200mAh |
|
Charging times |
≥300 times |
|
Charging time |
<8H |
|
|
Power Adapter |
Charging port |
Micro USB |
Input |
100-250V,50Hz |
|
Output |
5V,1000mA |
|
|
Transport/ Storage Condition |
Temperature |
10 Celsius~45Celsius |
Humidity |
≤93% |
|
AP |
500hPa to 1060hPa |
|
|
Working Condition |
Temperature |
5 Celsius~40 Celsius |
Humidity |
30%~85% |
|
AP |
700hPa to 1060hpa |
|
Unique Anti-fog Function |
Get anti-fog function upon powering without preheating |
|
Weight |
≤350g (≤350g light-weight, portable, comfortable) |
|
Camera Function |
Get serial camera shooting by pressing the button on the handle for training and presenting. |
|
Handle |
Comfortable ergonomic short handle design |
|
Shipment: __________________________________________________________
