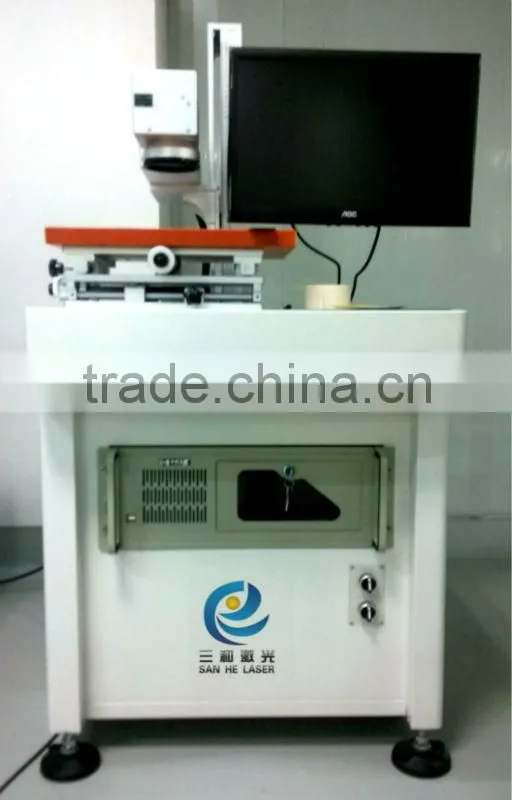

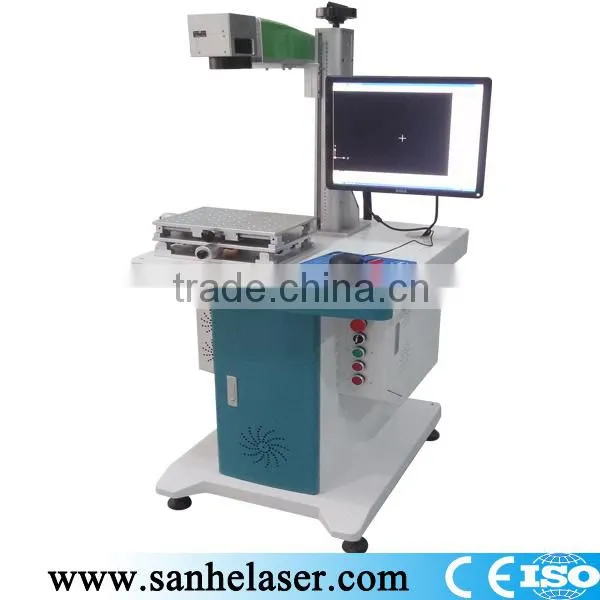

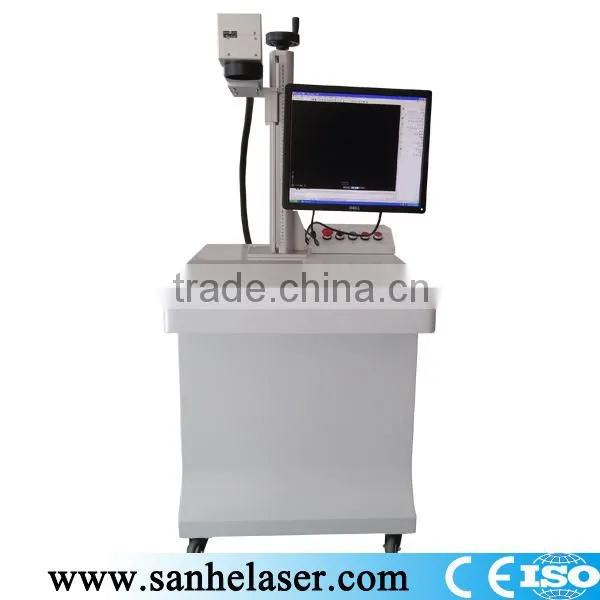

Factory New model 3HE-20W laser engraving machine for cookware,laser engraving machine low price,fiber laser engraving machine

wood box

Specifications

laser engraving machine for cookware
Maintenance-free
Long-life
Fast processing speed

New model  3HE -20W    laser engraving machine for cookware,laser engraving machine low price,fiber laser engraving machine









Features and principle:

Fiber laser using an integrated overall structure,and no any pollution,and air cooled power coupling loss,with other lasers do not have the high efficiency,long life span and low maintenance properties.

Fiber laser marker laser marking applications with many unique advantages. Unlike conventional solid-state lasers use a YAG laser media, fiber laser using a long as Yb-doped double-clad fiber laser and high efficiency multimode laser diode pumping.

1.Excellent beam quality:Compared with the traditional solid laser marking machine, machine output, gathering spot diameter less than 20um. divergence angle is semiconductor-pumped laser one-fourth. especially suitable for precise, refined marking.

2.Very long working life, 100000 working hours and no need maintainance

3.Very very thinner lines than traditional solid laser marking systerms.

4.Wide application, could work on NON-METAL and METAL material.

5.High converstion efficiency of electro-optic, the power consumption of the whole equipment is below 600W, it is only 1/10 of the solid laser marking machine pumped by the lamp.



The scope of using:

Electronic components, electrical appliances, telecommunications, auto parts, precision hardware, gifts and jewelry, medical equipment, instruments, eyeglasses and clocks and sanitary ware industry, not suitable for highly reflective material.



Technical parameters:

Average output power	5W,10W,20W(continuous or pulse)
Laser wavelength	1064nm
Power adjustment range	10-100%
Repetition rate	20-80KHz
Laser beam quality m2	1.4-1.8
Divergence angle	0.3mrad
Mark	Static or mobile marking
Marking LineWidth	0.01-0.2mm
Minimum focusing spot	0.01mm
Minimum character height	0.2mm
Re-precision	0.2um
Marking speed	≤7000mm/s
Supported formats	Graphics, text, bar codes, two-dimensional codes, automatic marking the date, frequency, lot number, serial number, file links
Mark character types	Vector and bitmap graphics, text
Operating system	Windows XP, supporting PLT, PCX, DXF, BMP etc file format
Marking range	50x50/100 x100/150 x150mm
Dimensions(L*M*Hmm)	550 x900 x1200
Electrical requirement	100-240V, Single phase,500W

Key models:3HE-FM5,3HE-FM10,3HE-FM20

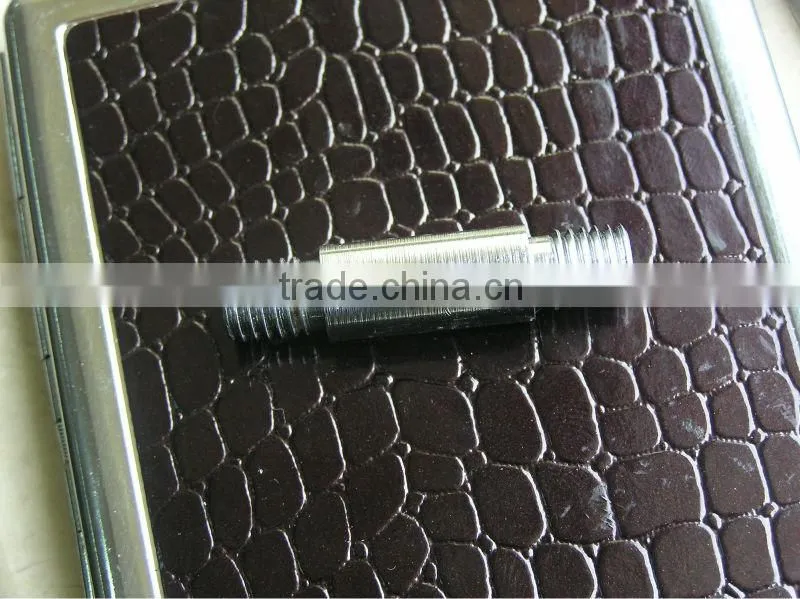

Marking samples:

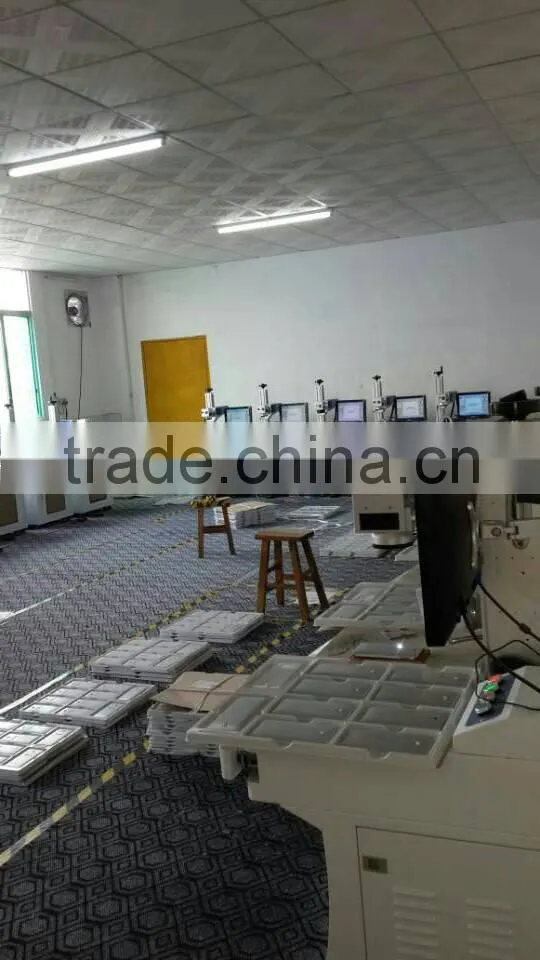

Dongguan sanhe laser technology limited company is a company engaged in the development, production and sales of well-paid technology enterprise, is located in Dongcheng, Dongguan city industrial zone, with a modern production plant, the strength, talent is sufficient, have a professional research and development and production team.Company since its inception, the introduction of advanced laser technology and convergence with international laser industry solutions, and well-known institutions and optoelectronic Research Institute maintains a long-term good relations of cooperation, in the field of energy development and application of new laser bold in innovation, the pursuit of excellence.

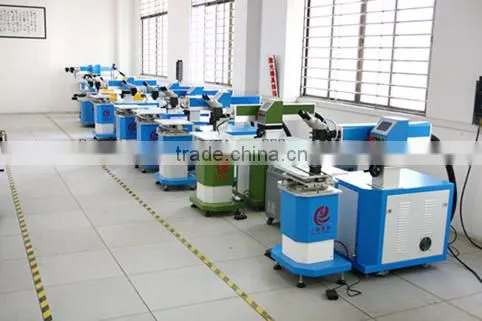

Sanhe laser company have launched a series of large power laser cutting series, the laser marker series, industrial laser equipment, such as laser welding, the company relies on excellent quality and leading-edge technology, to meet the requirements of different lasers use area.Equipments are exported to the United States, Korea, India, Viet Nam, Japan, Malaysia and many other countries.
