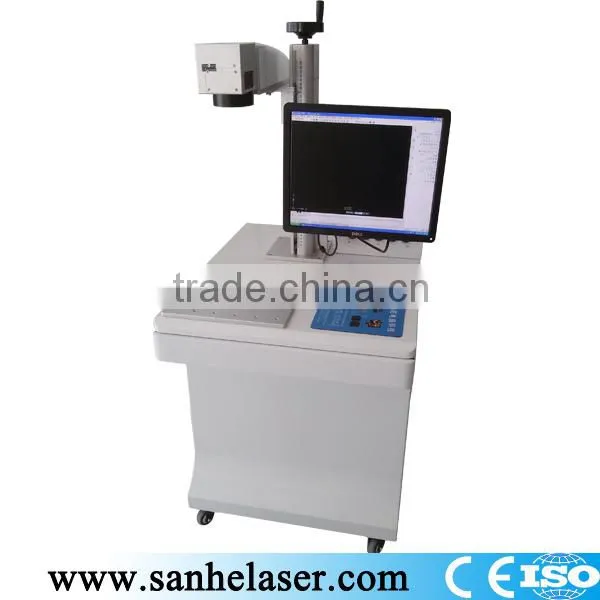

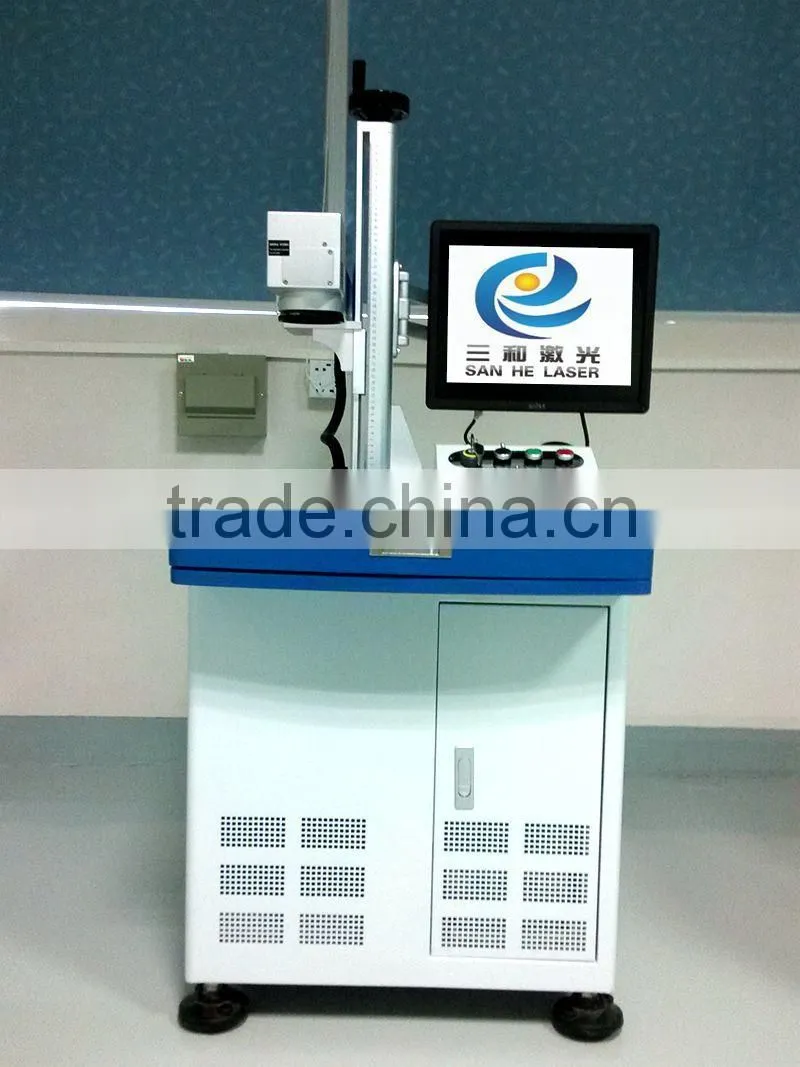

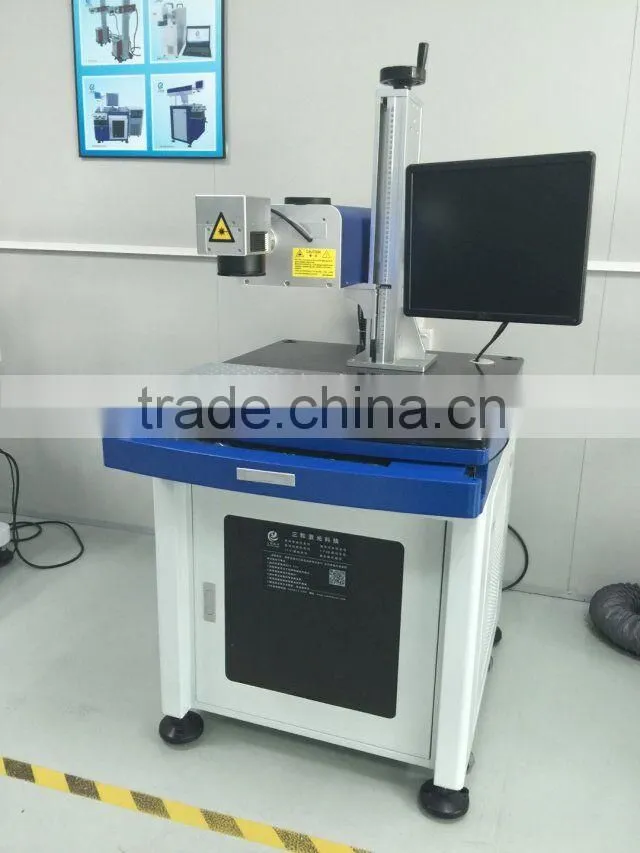

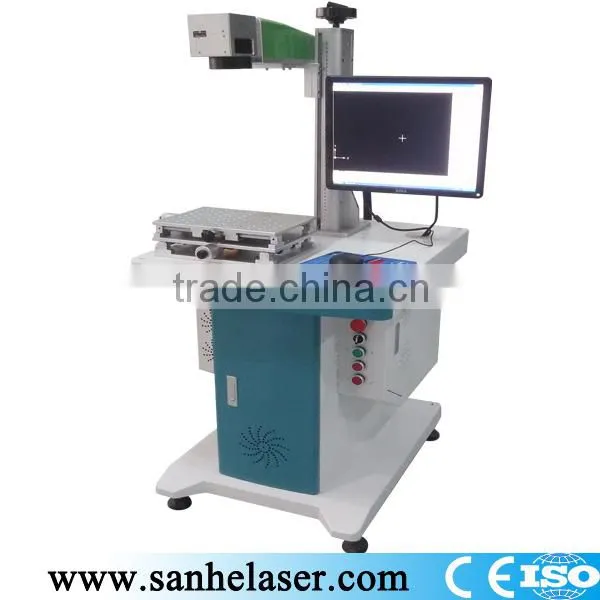

Multifunctional high precision fiber laser marking machine for wholesales
- 200 Set / Sets per Month
- Shenzhen
- T/T
You May Like
-
Professional cup laser engraving machine with CE certificate
-
From China laser marker for metal with CE certificate
-
Factory direct metal marking machine with great price
-
New design stainless steel laser marking /laser marker made in China
-
Key laser marking machine/mini fiber laser marking machine/air cooling fiber laser marking machine
-
Factory direct 3HE 50W semiconductor laser engraving machine,metal laser engraving machine,laser engraving machine for press
Product Details
| Condition | New | Laser Type | Fiber Laser | |
| CNC or Not | Yes | Cooling Mode | Air Cooling | |
| Control Software | Genuine laser software | Graphic Format Supported | BMP, DXP, PLT, DXF, Other, BMP, DXP, PLT, DXF,PCX | |
| Working Accuracy | 0.2um | Place of Origin | Guangdong, China | |
| Brand Name | 3HE | Model Number | FM20 | |
| Power(W) | 20W | Certification | CE, ISO | |
| After-sales Service Provided | Engineers available to service machinery overseas |
wood box
Product Description

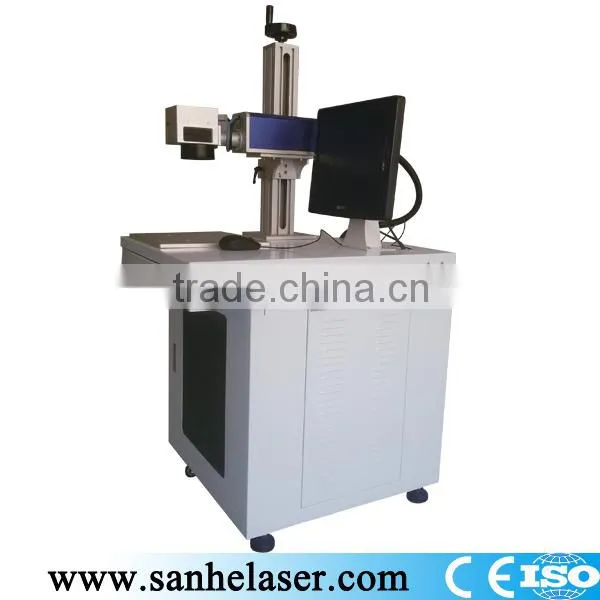

New model 3HE - 20wMultifunctional high precision fiber laser marking machine for wholesales fiber laser marking machine ,laser marking machine for metal, portable laser marking machine
Features and principle:
Fiber laser using an integrated overall structure,and no any pollution,and air cooled power coupling loss,with other lasers do not have the high efficiency,long life span and low maintenance properties.
Fiber laser marker laser marking applications with many unique advantages. Unlike conventional solid-state lasers use a YAG laser media, fiber laser using a long as Yb-doped double-clad fiber laser and high efficiency multimode laser diode pumping.
1.Excellent beam quality:Compared with the traditional solid laser marking machine, machine output, gathering spot diameter less than 20um. divergence angle is semiconductor-pumped laser one-fourth. especially suitable for precise, refined marking.
2.Very long working life, 100000 working hours and no need maintainance
3.Very very thinner lines than traditional solid laser marking systerms.
4.Wide application, could work on NON-METAL and METAL material.
5.High converstion efficiency of electro-optic, the power consumption of the whole equipment is below 600W, it is only 1/10 of the solid laser marking machine pumped by the lamp.
The scope of using:
Electronic components, electrical appliances, telecommunications, auto parts, precision hardware, gifts and jewelry, medical equipment, instruments, eyeglasses and clocks and sanitary ware industry, not suitable for highly reflective material.
Technical parameters:
Average output power | 5W,10W,20W(continuous or pulse) |
Laser wavelength | 1064nm |
Power adjustment range | 10-100% |
Repetition rate | 20-80KHz |
Laser beam quality m2 | 1.4-1.8 |
Divergence angle | 0.3mrad |
Mark | Static or mobile marking |
Marking LineWidth | 0.01-0.2mm |
Minimum focusing spot | 0.01mm |
Minimum character height | 0.2mm |
Re-precision | 0.2um |
Marking speed | ≤7000mm/s |
Supported formats | Graphics, text, bar codes, two-dimensional codes, automatic marking the date, frequency, lot number, serial number, file links |
Mark character types | Vector and bitmap graphics, text |
Operating system | Windows XP, supporting PLT, PCX, DXF, BMP etc file format |
Marking range | 50x50/100 x100/150 x150mm |
Dimensions(L*M*Hmm) | 550 x900 x1200 |
Electrical requirement | 100-240V, Single phase,500W |
Key models:3HE-FM5,3HE-FM10,3HE-FM20

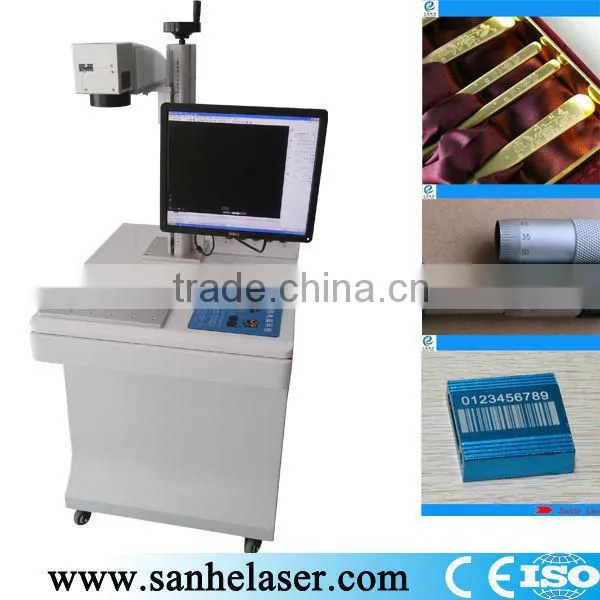

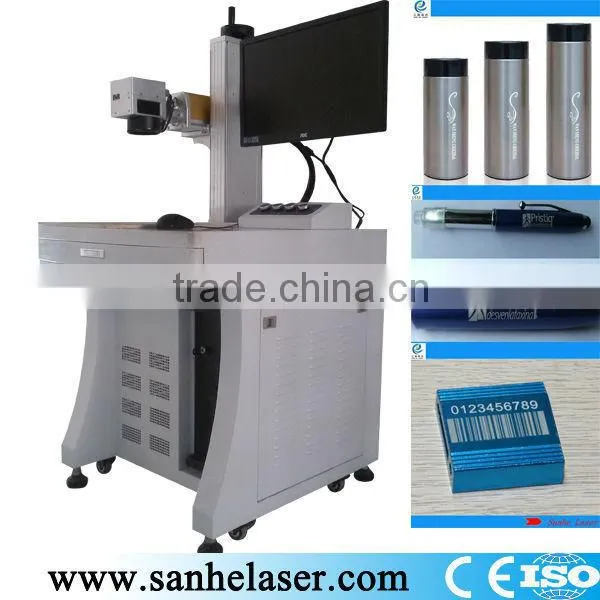

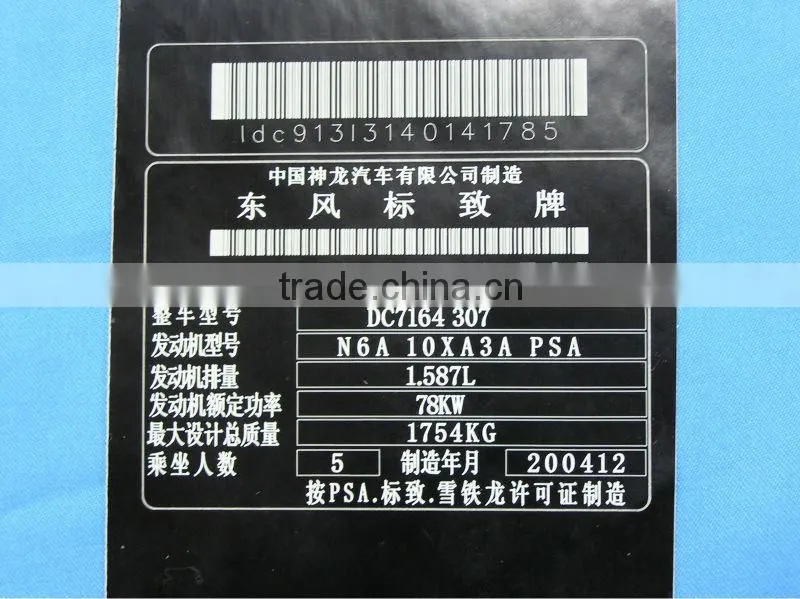

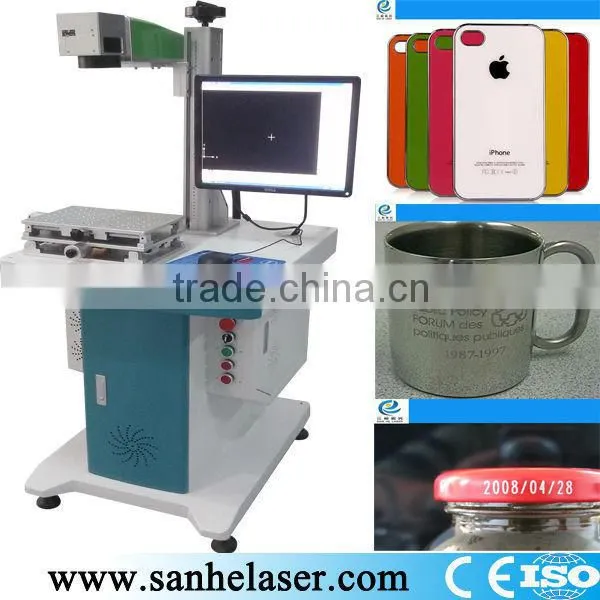

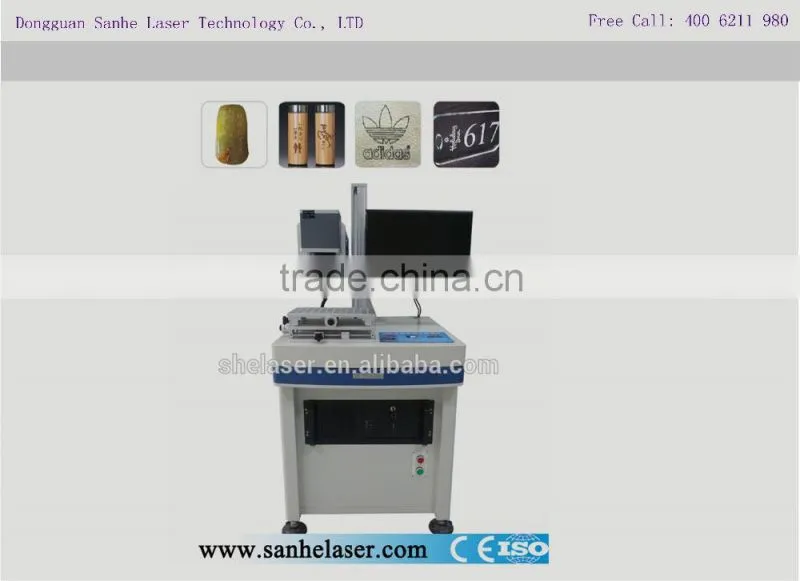

Marking samples:
Dongguan sanhe laser technology limited company is a company engaged in the development, production and sales of well-paid technology enterprise, is located in Dongcheng, Dongguan city industrial zone, with a modern production plant, the strength, talent is sufficient, have a professional research and development and production team.Company since its inception, the introduction of advanced laser technology and convergence with international laser industry solutions, and well-known institutions and optoelectronic Research Institute maintains a long-term good relations of cooperation, in the field of energy development and application of new laser bold in innovation, the pursuit of excellence.

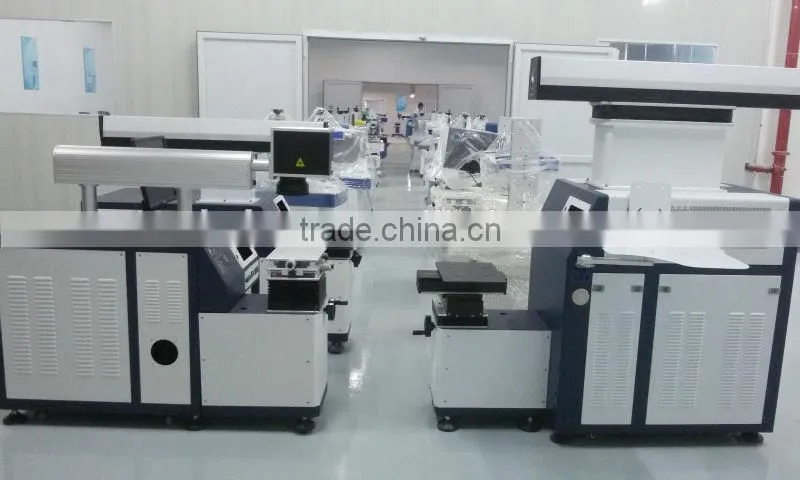

Sanhe laser company have launched a series of large power laser cutting series, the laser marker series, industrial laser equipment, such as laser welding, the company relies on excellent quality and leading-edge technology, to meet the requirements of different lasers use area.Equipments are exported to the United States, Korea, India, Viet Nam, Japan, Malaysia and many other countries.
I. The whole set of machine is guaranteed for one year, not including normal replacement of wearing parts.
II. We depend on our domestic reputation and customer satisfaction to succeed. Therefore, your feedback is extremely important to us.
III. If you have any particular suggestions or questions on our products, please feel free to contact us. We will be very grateful and reply your email or fax within 24 hours.
Why buy from us?
- We order all our products directly from factory, no agents,no middleman, which guarantee the lowest prices for our customers.
- We have 2 large warehouses & nearly one million worth of stocks ready to go.
- We are looking for distributors USA, Australia and some area around the world, contact us for more detail.
- For group buy for schools and club purchases up to a certain amount, we will offer a great discount.
- Customers can choose to join our membership program for reward points or discounts and we offer VIP sales or events for our members.
Please let us kown:
1.what kind of machine you need
2.the information about the material you want to prcess
3.what is your business scope?Are you end user or distributor?
We will be very happy to help you in any way we can.

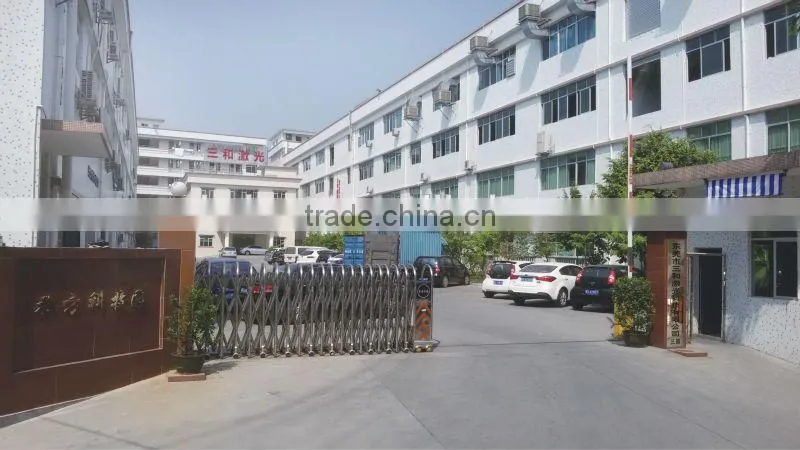

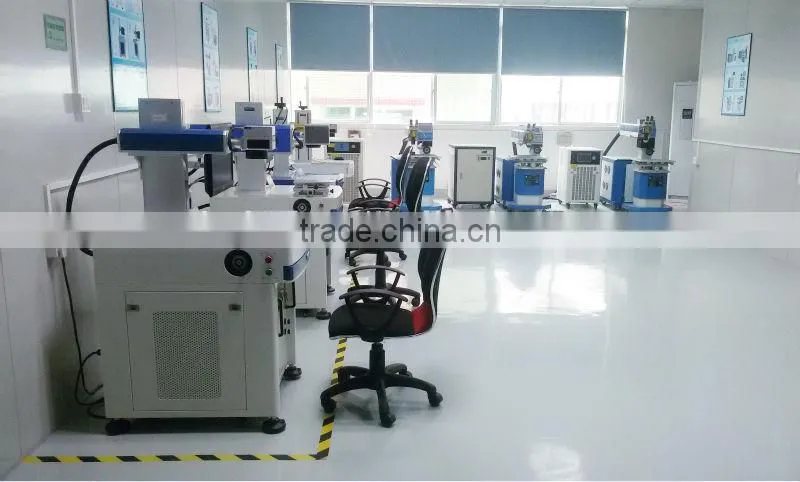

Company Profile

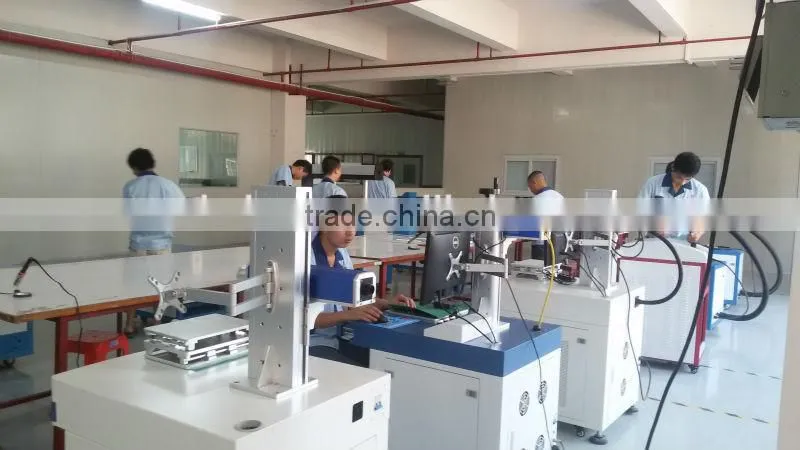

Our company is engaged in the development, production and sales with a modern production plant. The strength, talent is sufficient with professional development and production teams. We have launched a series of large power laser cutting machines, laser marking series, laser industrial laser welding equipment. With excellent quality, leading-edge technology, our products meet the requirements of different laser fields. Our equipment is exported to the United States, Korea, India, Vietnam, Japan, Malaysia and many other countries. Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
