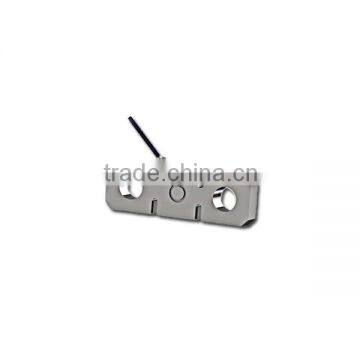

70t crane torsional ring type load cell
Features of ring load cell
- Simple structure and easy to install
- Optional measurement range: 20-700kN (approximate 2-70t)
- Applied to cargo measurement on port and dock, and safety testing of lifting equipment
Parameter of crane load cell
Description | |
Material |
Alloy and Stainless Steel |
Rated Load(kg) |
20/30/50/70/100/150/200/300/500/700kg |
Performance | |
Accuracy |
0.03%F.S(linearity + hysteresis + repeatability) |
Sensitivity |
2.0mV/V |
Excitation voltage |
5~12V DC (Recommend 5V) |
Creep(30 min) |
±0.02%F.S/30min |
Zero balance |
±1.0%FS |
Input Resistance |
380±10Ω |
Output Resistance |
350±3Ω |
Insulation Resistance |
≥5000MΩ |
Working Environment | |
Safety overload |
150%F.S |
Operation overload |
-20~+65°C |
Zero Drift |
±0.02%F.S/10°C |
Output Drift |
±0.02%F.S/10°C |
Protection Class |
IP67 |

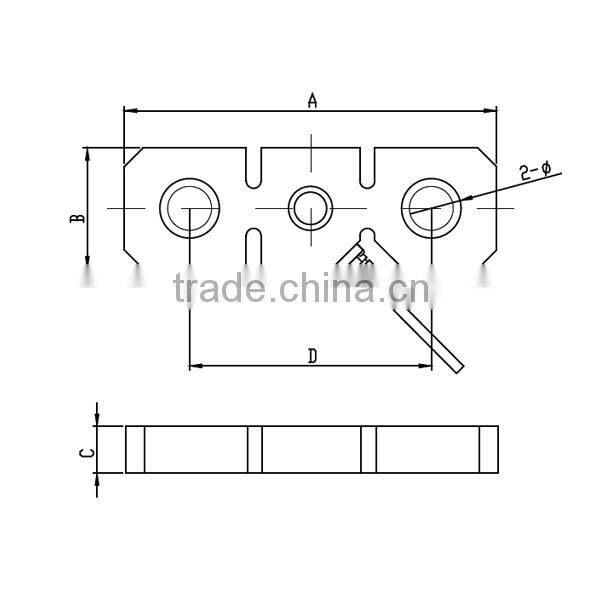

Dimension of torsional ring type load cell
Rated Load (t) Size (Unit: mm, Error: ±1mm) | |||||
|
A |
B |
C |
D |
Φ |
2-3 |
200 |
65 |
25 |
130 |
32 |
5 |
230 |
70 |
30 |
150 |
36 |
7-10 |
300 |
90 |
38 |
200 |
45 |
15-20 |
330 |
110 |
42 |
205 |
60 |
30 |
350 |
126 |
50 |
216 |
60 |
50-70 |
500 |
180 |
60 |
320 |
72 |
Our Services
Sensor can be customized by your special request, We can supply technical consulting service for your user.
The quality principle: Quality is the best sales
Payment: We accept T/T, PayPal, Western Union, MoneyGram , Escrow
Shipping:
1. All parts will be shipped out within 1 - 3 working days after confirm the payment
2. DHL / FEDEX / UPS / EMS / TNT / China Post /Aramex
3. We are not responsible for force majeure accidents, delays or other issues, like the shipping service.
After-sales service
We can offer good technical support and good warranty for you after service as professional manufacturer.
Warranty: One year
During the warranty, if the goods after delivery are damaged with error caused only by itself quality problem, the goods can be returned for free repair and maintenance. however, if the goods is damaged with error caused by user’ s man-made and force majeure factor, we will be not responsible for free repair and maintenance.
GUANGXING pressure, level and flow Instruments has been certified with ISO 9001 (2008)achieved GB/T19001-2008/ISQ9001:2008, GJB 9001B-2009, CE and RoHS, intrinsic safety explosion-proof and isolated safety explosion-proof certification. we developed a lot of sensor products, such as a pressure sensor / transducer / sensor, level transmitter / ultrasonic level meter / ultrasonic flow meter, etc. Our products are widely applied in the fields of chemical industry, petroleum, pharmacy, electricity, municipal works, environmental protection, food and paper-making.
We have the key technology and development center of advanced sensors, and we cooperation with Northwestern Polytechnical University, Xi'an Jiao Tong University and other colleges and universities. Product quality is the life of enterprise, customer demand is our existence!
