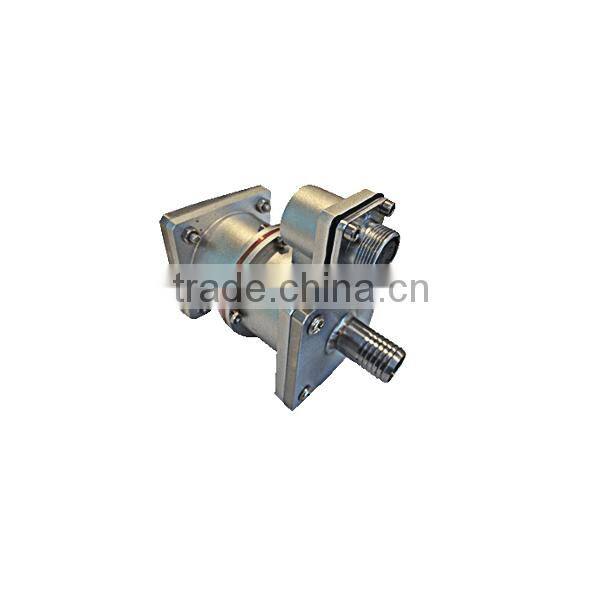

Chip aircraft engine monitor debris alarms
Description of chip monitor
DC series MetalCheck is a kind of advanced full flow online oil metal particle sensor, which detects the metal and non-ferromagnetic metal particles in the lubricating oil after wear. It provide real-time particle detection and quantitative analysis, to provide reliable, drought warning instructions for the impending failure. The reliability of the metal scanning detector is derived from the simple maintenance free design, simple installation and use, no need for cleaning, no false alarm. The mechanical condition monitoring system based on the metal scanning detector (MetaICheck) can effectively monitor the damage process of the gear box and the bearing, and provide early warning of failure, so as to avoid serious mechanical damage.
Features of aircraft engine monitor
- Full flow real-time monitoring
- Monitoring the diversity of faults
- Small in size, light in weight, easy to install
- Data transmission reliable, distance of up to 1000 meters
- Automatic storage, graphic display monitoring terminal data
- In the range of sensitivity, 100% detect ferromagnetic and non-ferromagnetic metal particles
Applications of aircraft engine monitoring
Aircraft engine, gear box, wind power generation, power plants, locomotives, ships etc.
Parameter of Chip aircraft engine monitor debris alarms
Parameter table | |||||
Model |
DCR-8 |
DCR-12 |
DCR-14 |
DCR-18 |
DCR-38 |
Common path |
8mm |
12mm |
14mm |
18mm |
38mm |
|
Min Ferromagnetic diameter |
100μm |
125μm |
175μm |
200μm |
350μm |
|
Min non-ferromagnetic diameter |
400μm |
500μm |
550μm |
600μm |
1000μm |
Max debris numbers |
100 1/s |
100 1/s |
100 1/s |
100 1/s |
100 1/s |
Min flow rate |
>0.4L/min |
>0.6L/min |
>2L/min |
>6L/min |
>12L/min |
Max flow rate |
<4L/min |
<70L/min |
<320L/min |
<880L/min |
<1000L/min |
Pressure |
<3MPa |
||||
Oil Temp. |
<190°C |
||||
Ambient Temp. |
<55°C |
||||
Humidity |
<85% |
||||
Power supply |
18~36 VDC |
||||
Max startup current |
<1A |
||||
Operating current |
<0.25A |
||||
|
Power isolation voltage |
1500VDC |
||||
|
Communication protocol |
CAN2.0, 485, 422 |
||||
|
Communication isolation voltage |
2500 VDC |
||||
Baud rate |
500k(CAN2.0), 115.2k(485/422)bps |
||||
Drive node |
32 |
||||

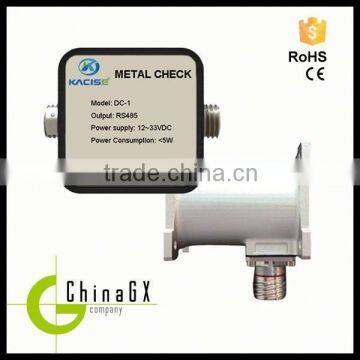

DC-1 wear debris sensor

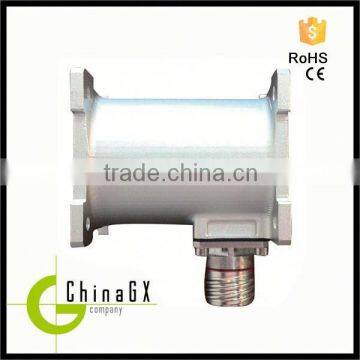

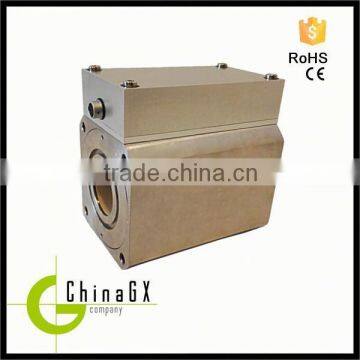

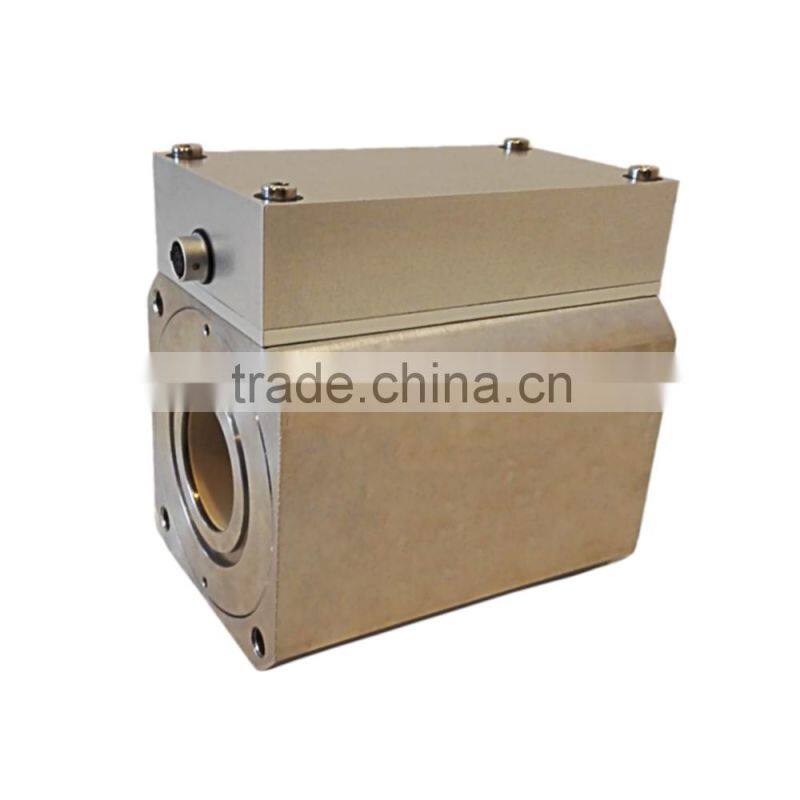

DC-38 wear debris sensor
Our Services
Sensor can be customized by your special request, We can supply technical consulting service for your user.
The quality principle: Quality is the best sales
Payment: We accept T/T, PayPal, Western Union, MoneyGram , Escrow
Shipping:
1. All parts will be shipped out within 1 - 3 working days after confirm the payment
2. DHL / FEDEX / UPS / EMS / TNT / China Post /Aramex
3. We are not responsible for force majeure accidents, delays or other issues, like the shipping service.
After-sales service
We can offer good technical support and good warranty for you after service as professional manufacturer.
Warranty: One year
During the warranty, if the goods after delivery are damaged with error caused only by itself quality problem, the goods can be returned for free repair and maintenance. however, if the goods is damaged with error caused by user’ s man-made and force majeure factor, we will be not responsible for free repair and maintenance.
Xi'an Kacise Optronics Co., Ltd. was founded in 2000, is located in Xi'an, Shaanxi Province, China, is a professional engaged in instrumentation and sensors, R & D, production, sales as one of professional high-tech enterprises, we have our own production workshop and central laboratory. Factory building area is about 3000 square meters, with production of more than 30 employees, 8 engineer, 6 inspectors, 10 saleman, 5 for customer service, is this industry, we are one of the strong technology manufacturers with varieties specification.
When the company set up, we began to focus on the coordination of military supplies production, achieved GB/T19001-2008/ISQ9001:2008, GJB 9001B-2009 certification. When our company is running mature and stable, in 2008, we began to develop our business. Based on the production of military products quality control, we developed a lot of sensor products, such as a pressure sensor / transducer / sensor, level transmitter / ultrasonic level meter / ultrasonic flow meter, inertial navigation products, IMU, gyroscope, accelerometer etc.
